1/4″ Concrete Roofing Fastener

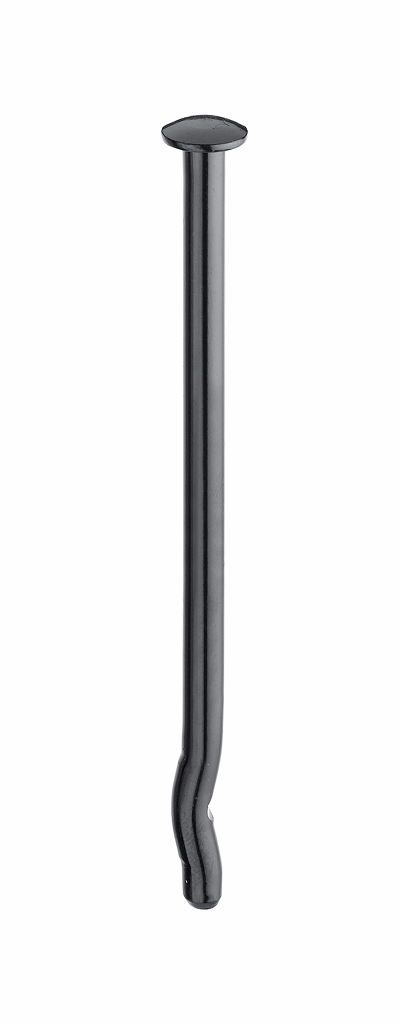

The TRUFAST® Concrete Fastener is a one-piece, vibration-resistant anchor designed to fasten insulation, single-ply roof membrane, wood, and steel to structural concrete roof decks. Featuring an “S” shaped configuration at the working end of the fastener to create an expansion mechanism, it provides a fast, reliable fastening solution for structural concrete roof applications.
- Available in 23 lengths from 1-1/4" to 16"
- Tru-Kote™ Epoxy E-Coat
- FM Global Approved
- Product Data Sheet
- Detail Drawings PDF DXF DWG
|
Code Approvals & Listings
|
FM Global
|
|
Material
|
AISI 1038 Carbon Steel
|
|
Coating
|
Tru-Kote™ Epoxy E-Coat
|
| Part No. | Part Length | Head Dia. | Pkg. Qty. | Pkg. Wt. | Pallet Qty. |
|---|---|---|---|---|---|
|
TS250-1250
|
1-1/4", 31.8 mm
|
.500", 12.7 mm
|
500/Bucket
|
11.0 lbs.
|
30,000
|
|
TS250-1500
|
1-1/2", 38.1 mm
|
.500", 12.7 mm
|
500/Bucket
|
12.5 lbs.
|
30,000
|
|
TS250-2000
|
2", 50.8 mm
|
.500", 12.7 mm
|
500/Bucket
|
16.5 lbs.
|
30,000
|
|
TS250-2500
|
2-1/2", 63.5 mm
|
.500", 12.7 mm
|
500/Bucket
|
20.0 lbs.
|
30,000
|
|
TS250-3000
|
3", 76.2 mm
|
.500", 12.7 mm
|
500/Bucket
|
23.5 lbs.
|
30,000
|
|
TS250-3500
|
3-1/2", 88.9 mm
|
.500", 12.7 mm
|
500/Bucket
|
27.0 lbs.
|
30,000
|
|
TS250-4000
|
4", 101.6 mm
|
.500", 12.7 mm
|
500/Bucket
|
30.5 lbs.
|
30,000
|
|
TS250-4500
|
4-1/2", 114.3 mm
|
.500", 12.7 mm
|
500/Bucket
|
34.0 lbs.
|
30,000
|
|
TS250-5000
|
5", 127.0 mm
|
.500", 12.7 mm
|
500/Bucket
|
37.5 lbs.
|
30,000
|
|
TS250-5500
|
5-1/2", 139.7 mm
|
.500", 12.7 mm
|
500/Bucket
|
41.0 lbs.
|
30,000
|
|
TS250-6000
|
6", 152.4 mm
|
.500", 12.7 mm
|
250/Bucket
|
23.0 lbs.
|
15,000
|
|
TS250-6500
|
6-1/2", 165.1 mm
|
.450", 11.4 mm
|
250/Bucket
|
24.5 lbs.
|
15,000
|
|
TS250-7000
|
7", 177.8 mm
|
.450", 11.4 mm
|
250/Bucket
|
26.5 lbs.
|
15,000
|
|
TS250-7500
|
7-1/2", 190.5 mm
|
.450", 11.4 mm
|
250/Bucket
|
28.0 lbs.
|
15,000
|
|
TS250-8000
|
8", 203.2 mm
|
.450", 11.4 mm
|
250/Bucket
|
30.0 lbs.
|
15,000
|
|
TS250-9000
|
9", 228.6 mm
|
.450", 11.4 mm
|
250/Bucket
|
33.5 lbs.
|
15,000
|
|
TS250-10000
|
10", 254.0 mm
|
.450", 11.4 mm
|
250/Bucket
|
37.0 lbs.
|
15,000
|
|
TS250-11000
|
11", 279.4 mm
|
.450", 11.4 mm
|
100/Bucket
|
16.0 lbs.
|
6,000
|
|
TS250-12000
|
12", 304.8 mm
|
.450", 11.4 mm
|
100/Bucket
|
17.5 lbs.
|
6,000
|
|
TS250-13000
|
13", 330.2 mm
|
.450", 11.4 mm
|
100/Carton
|
19.0 lbs.
|
3,000
|
|
TS250-14000
|
14", 355.6 mm
|
.450", 11.4 mm
|
100/Carton
|
20.5 lbs.
|
3,000
|
|
TS250-15000
|
15", 381.0 mm
|
.450", 11.4 mm
|
100/Carton
|
22.0 lbs.
|
3,000
|
|
TS250-16000
|
16", 406.4 mm
|
.450", 11.4 mm
|
100/Carton
|
23.0 lbs.
|
3,000
|
