#12 Purlin Roofing Fasteners

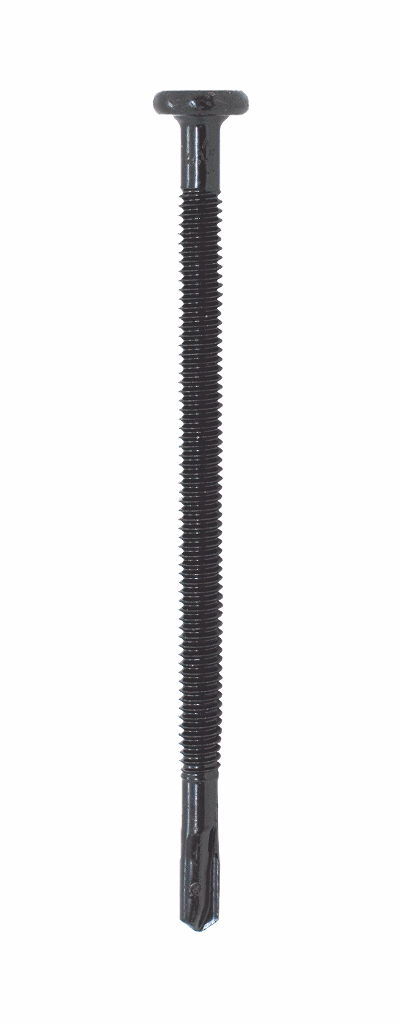

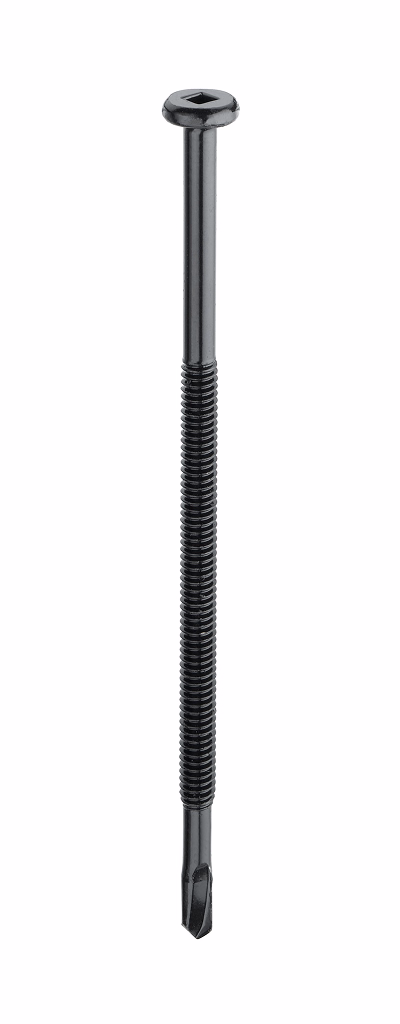

The TRUFAST® #12 Purlin Fastener is a self-drilling fastener engineered to secure single-ply roofing membrane to structural steel purlins (16 ga. to 3/16ʺ) in standing seam metal roof recover applications. The specially designed ¾ʺ long pilot points prevents the existing metal roof panel from “jacking” up the threads during the drilling operation, thereby reducing point burnout and breakage.
- Available in 9 lengths from 1-3/8" to 9-3/4"
- Tru-Kote™ Epoxy E-Coat
- Approvals include FM Global, Miami-Dade, State of Florida, and CE
- Product Data Sheet

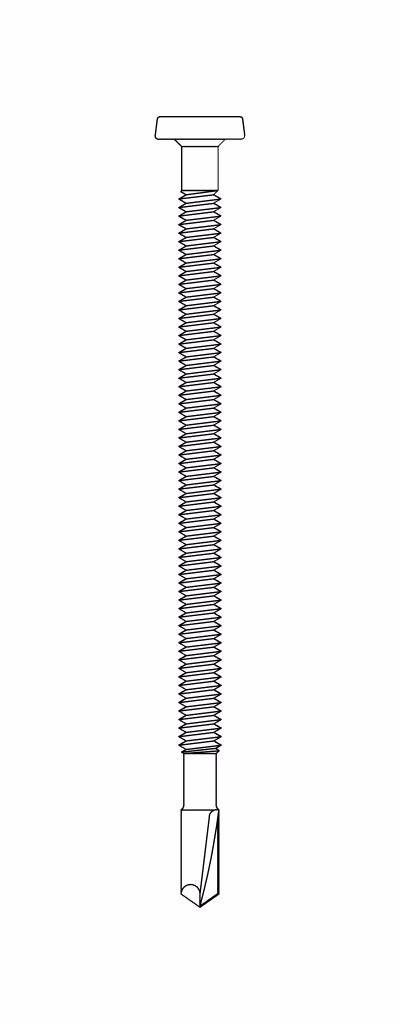

- Detail Drawings PDF DXF DWG
|
Code Approvals & Listings
|
FM Global, Miami-Dade County, State of Florida #4500, CE 2809 European Technical Assessment ETA 19/0616 DOP No. DoPTru02-2022-01-03
|
|
Material
|
SAE C1022, heat treated
|
|
Coating
|
Tru-Kote™ Epoxy E-Coat
|
| Part No. | Part Length | Thread Length | Pkg. Qty. | Pkg Wt | Pallet Qty. |
|---|---|---|---|---|---|
|
PF-1375
|
1-3/8ʺ, 34.9 mm
|
3/4ʺ (Full), 19.1 mm
|
2500 / Bucket
|
33.8 lbs.
|
200,000
|
|
PF-2750
|
2-3/4ʺ, 69.9 mm
|
2.0ʺ (Full), 50.8 mm
|
1000 / Bucket
|
23.7 lbs.
|
80,000
|
|
PF-3750
|
3-3/4ʺ, 95.3 mm
|
3-3/8ʺ, 85.7 mm
|
1000 / Bucket
|
30.7 lbs.
|
80,000
|
|
PF-4750
|
4-3/4ʺ, 120.7 mm
|
3-3/8ʺ, 85.7 mm
|
1000 / Bucket
|
38.1 lbs.
|
60,000
|
|
PF-5750
|
5-3/4ʺ, 146.1 mm
|
3-3/8ʺ, 85.7 mm
|
1000 / Bucket
|
45.1 lbs.
|
60,000
|
|
PF-6750
|
6-3/4ʺ, 171.5 mm
|
3-3/8ʺ, 85.7 mm
|
1000 / Bucket
|
52.1 lbs.
|
60,000
|
|
PF-7750
|
7-3/4ʺ, 196.9 mm
|
3-3/8ʺ, 85.7 mm
|
500 / Bucket
|
30.1 lbs.
|
40,000
|
|
PF-8750
|
8-3/4ʺ, 222.3 mm
|
3-3/8ʺ, 85.7 mm
|
500 / Bucket
|
32.9 lbs.
|
30,000
|
|
PF-9750
|
9-3/4ʺ, 247.7 mm
|
3-3/8ʺ, 85.7 mm
|
500 / Bucket
|
35.3 lbs.
|
30,000
|
