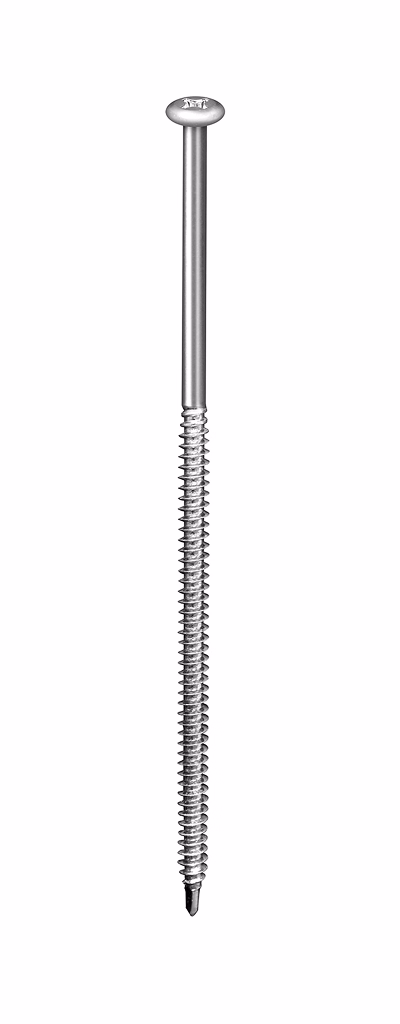

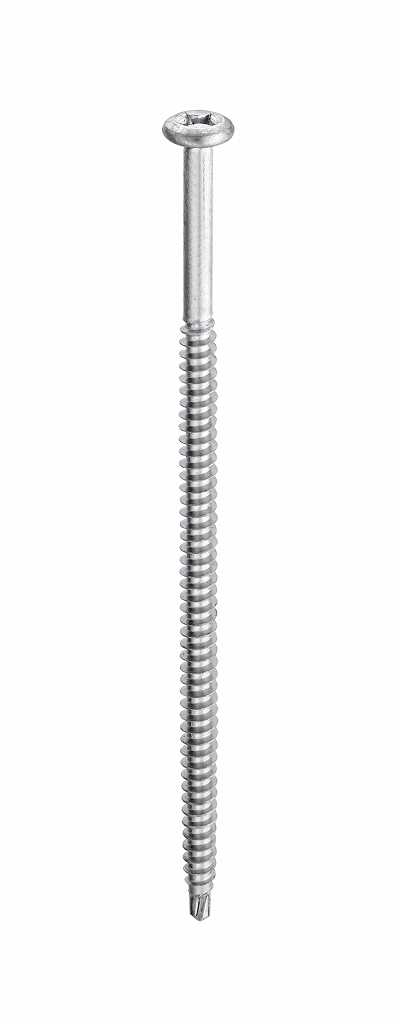

#14 HD Bi-Metal Stainless Steel Roofing Fasteners
The TRUFAST® #14 Bi-Metal Stainless Steel HD Fastener is made of 316 austenitic stainless steel alloy with a hardened carbon steel drill point. This all purpose roofing fastener is engineered to secure insulation, coverboards, base sheets and single-ply roof membrane systems to corrugated steel (18 – 24 ga.) and wood substrates. Featuring a #2 double flute self-drilling point and exclusive tapered entry thread design, it penetrates steel quickly and offers exceptional back-out resistance.
- Available in 6 lengths from 1-1/2" to 10"
- Electro-Zinc Coating
- Approvals include FM Global, Miami-Dade, State of Florida, and CE
- Product Data Sheet

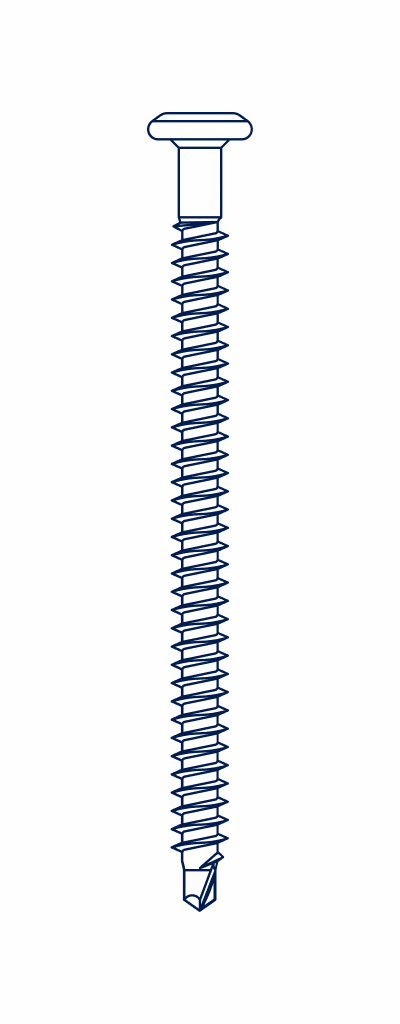

- Detail Drawings PDF DXF DWG
|
Code Approvals & Listings
|
FM Global, Miami-Dade County, State of Florida #4500, CE 2809-CPR-M0031 European Technical Assessment ETA 19/0616 DOP No. DoPTru02-2022-01-03
|
|
Material
|
316 Stainless Steel with a hardened carbon steel drill point
|
|
Coating
|
Electro-Zinc
|
| Part No. | Part Length | Thread Length | Pkg Qty | Pkg Wt | Pallet Qty |
|---|---|---|---|---|---|
|
HDB-1500-SS
|
1-1/2", 38.1 mm
|
1-1/2" (Full), 38.1 mm
|
1000/Bucket
|
15.7 lbs.
|
80,000
|
|
HDB-2000-SS
|
2", 50.8 mm
|
2" (Full), 50.8 mm
|
1000/Bucket
|
19.2 lbs.
|
80,000
|
|
HDB-4000-SS
|
4", 101.6 mm
|
3-7/8", 98.4 mm
|
1000/Bucket
|
33.4 lbs.
|
80,000
|
|
HDB-6000-SS
|
6", 152.4 mm
|
3-7/8", 98.4 mm
|
1000/Bucket
|
47.7 lbs.
|
60,000
|
|
HDB-8000-SS
|
8", 203.2 mm
|
3-7/8", 98.4 mm
|
500/Bucket
|
31.5 lbs.
|
40,000
|
|
HDB-10000-SS
|
10", 254.0 mm
|
3-7/8", 98.4 mm
|
250/Bucket
|
19.9 lbs.
|
15,000
|
