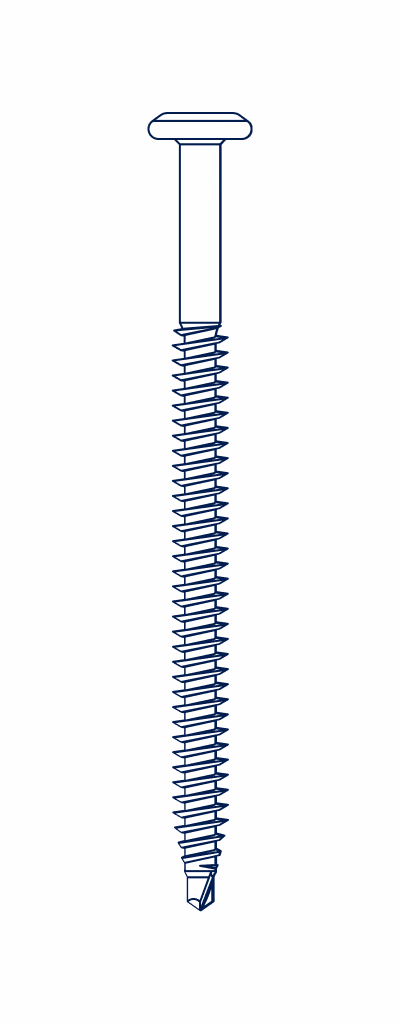

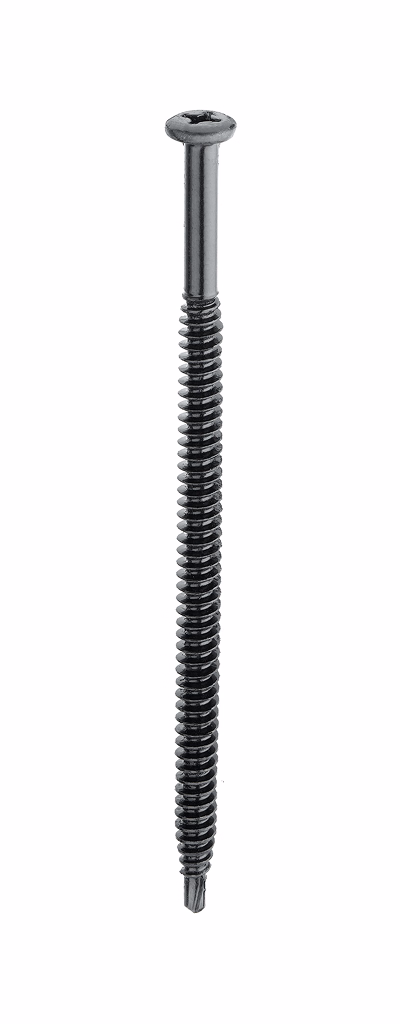

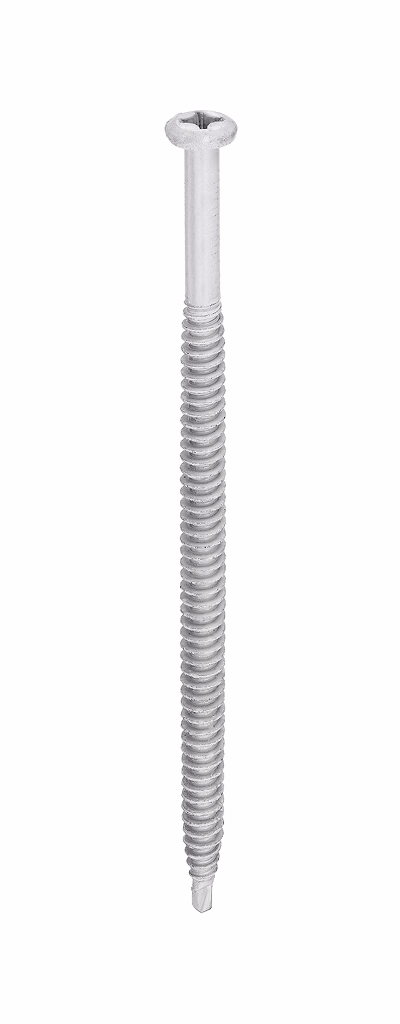

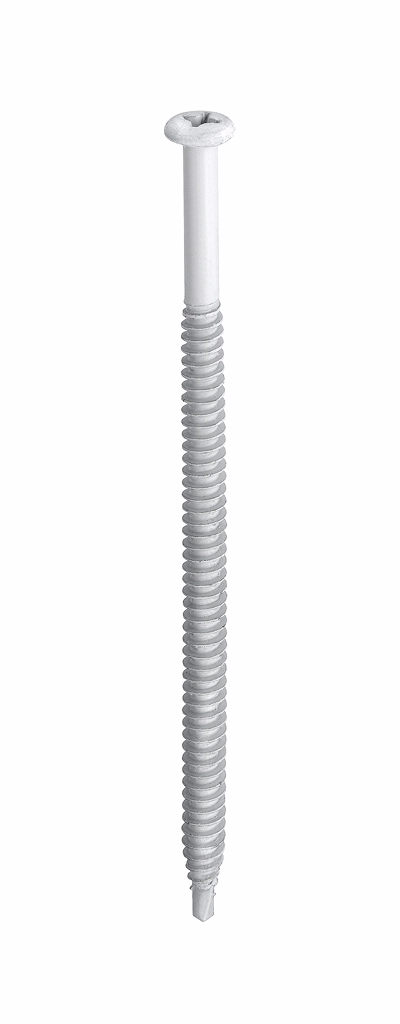

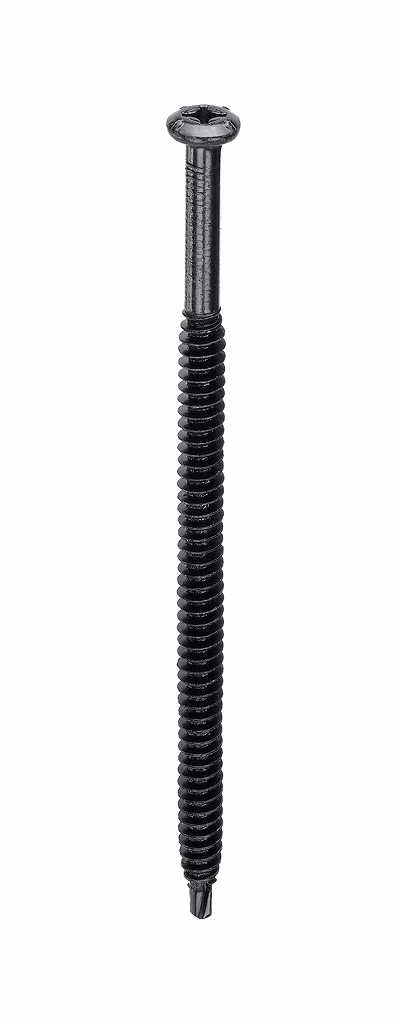

#15 EHD Roofing Fasteners
The TRUFAST® #15 EHD Fastener is engineered for lap attachment to corrugated steel (18 – 22 ga.) and wood substrates in higher wind uplift roof assemblies. Featuring a #2 double flute selfdrilling point and exclusive tapered entry thread design, they penetrate steel quickly and offer exceptional back-out resistance.
- Available in 17 lengths from 2" to 24"
- Tru-Kote™ Epoxy E-Coat
- Approvals include FM Global, Miami-Dade, State of Florida, and CE
- Product Data Sheet
- Detail Drawings PDF DXF DWG
|
Code Approvals & Listings
|
FM Global, Miami-Dade County, State of Florida #4500, CE 2809 European Technical Assessment ETA 19/0616 DOP No. DoPTru02-2022-01-03
|
|
Material
|
SAE C1022, heat treated
|
|
Coating
|
Tru-Kote™ Epoxy E-Coat
|
| Part No | Part Length | Thread Length | Pkg Qty | Pkg Wt | Pallet Qty |
|---|---|---|---|---|---|
|
EHD-2000
|
2", 50.8 mm
|
2" (Full), 50.8 mm
|
1000/Bucket
|
23.6 lbs
|
80,000
|
|
EHD-3000
|
3", 76.2 mm
|
3", (Full) 76.2 mm
|
1000/Bucket
|
33.3 lbs.
|
80,000
|
|
EHD-4000
|
4", 101.6 mm
|
3", 76.2 mm
|
1000/Bucket
|
43.2 lbs.
|
60,000
|
|
EHD-5000
|
5", 127.0 mm
|
4", 101.6 mm
|
1000/Bucket
|
52.8 lbs.
|
60,000
|
|
EHD-6000
|
6", 152.4 mm
|
4", 101.6 mm
|
500/Bucket
|
31.8 lbs.
|
40,000
|
|
EHD-7000
|
7", 177.8 mm
|
4", 101.6 mm
|
500/Bucket
|
36.6 lbs.
|
40,000
|
|
EHD-8000
|
8", 203.2 mm
|
4", 101.6 mm
|
500/Bucket
|
41.4 lbs
|
40,000
|
|
EHD-9000
|
9", 228.6 mm
|
4", 101.6 mm
|
250/Bucket
|
23.7 lbs.
|
15,000
|
|
EHD-10000
|
10", 254.0 mm
|
4", 101.6 mm
|
250/Bucket
|
26.1 lbs
|
15,000
|
|
EHD-11000
|
11", 279.4 mm
|
4", 101.6 mm
|
250/Bucket
|
28.5 lbs.
|
15,000
|
|
EHD-12000
|
12", 304.8 mm
|
4", 101.6 mm
|
250/Bucket
|
30.9 lbs.
|
15,000
|
|
EHD-14000
|
14", 355.6 mm
|
4", 101.6 mm
|
250/Box
|
35.6 lbs.
|
7,500
|
|
EHD-16000
|
16", 406.4 mm
|
4", 101.6 mm
|
250/Box
|
40.4 lbs.
|
7,500
|
|
EHD-18000
|
18", 457.2 mm
|
4", 101.6 mm
|
250/Box
|
45.3 lbs.
|
7,500
|
|
EHD-20000
|
20", 508.0 mm
|
4", 101.6 mm
|
250/Box
|
50.0 lbs.
|
7,500
|
|
EHD-22000
|
22", 558.8 mm
|
4", 101.6 mm
|
250/Box
|
54.8 lbs.
|
7,500
|
|
EHD-24000
|
24", 609.6 mm
|
4", 101.6 mm
|
250/Box
|
59.6 lbs.
|
7,500
|
