• Wall Applications

ProChannel Ci with Grip-Deck TubeSeal

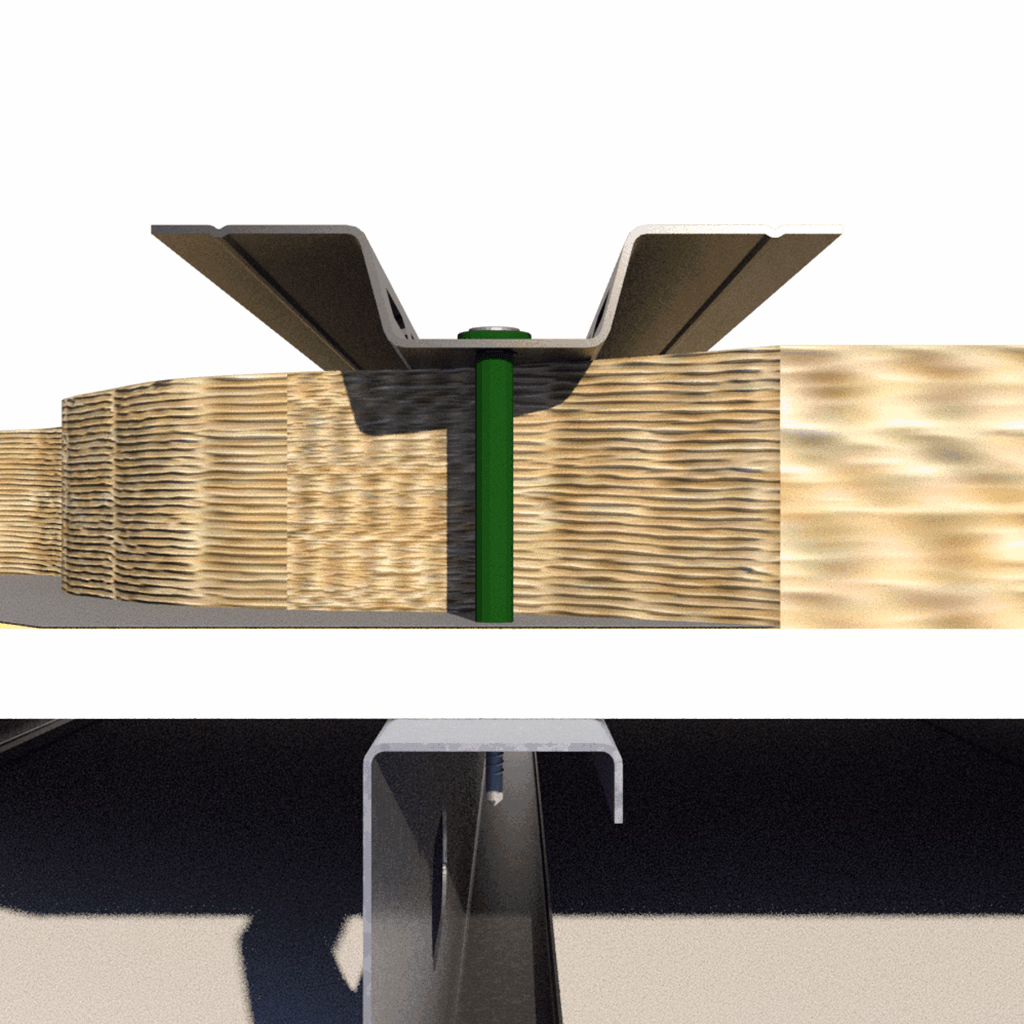

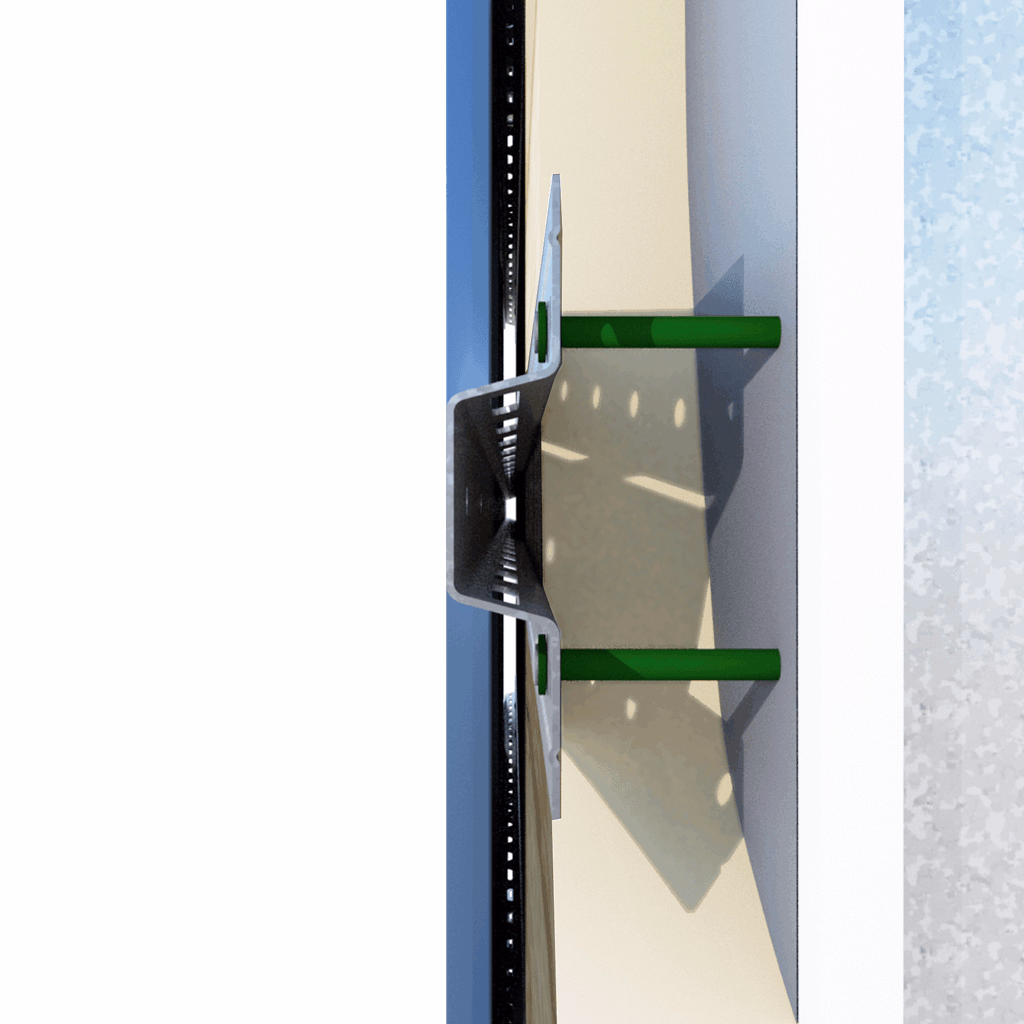

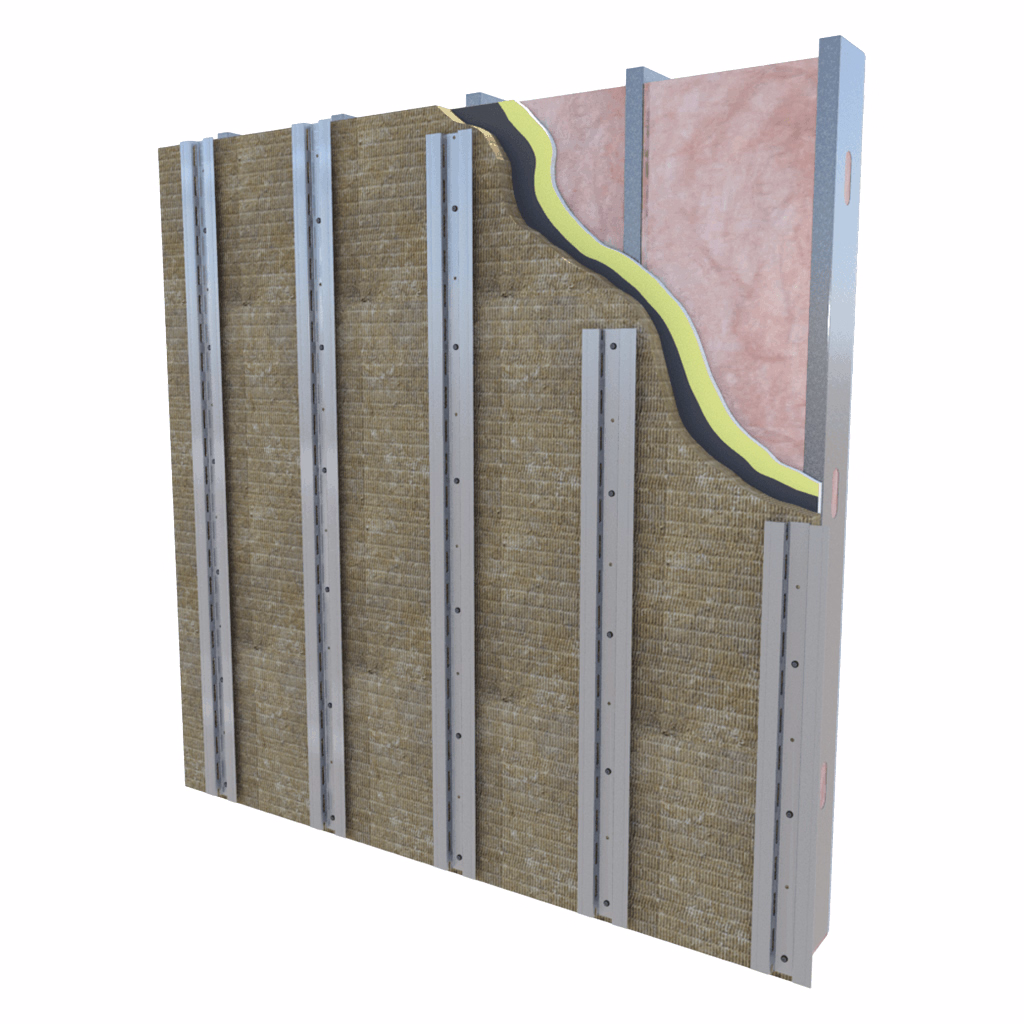

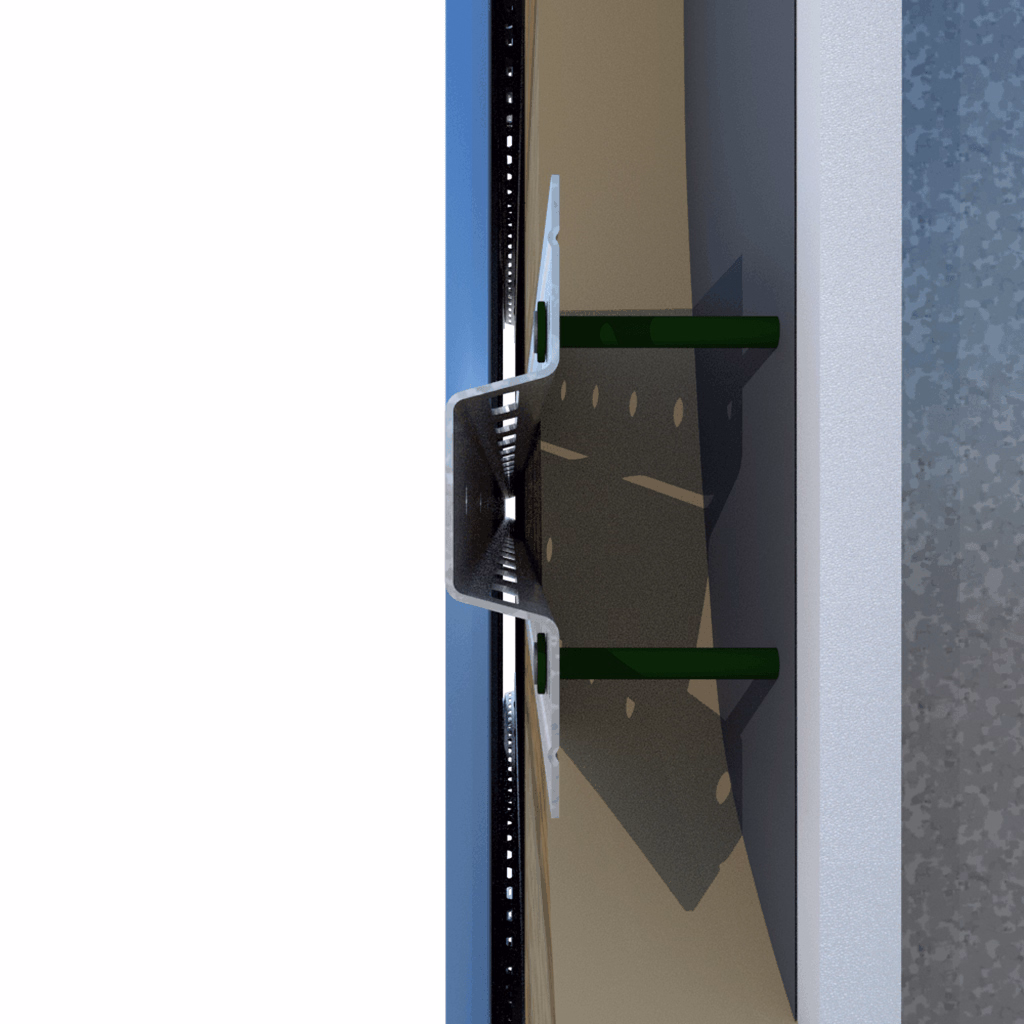

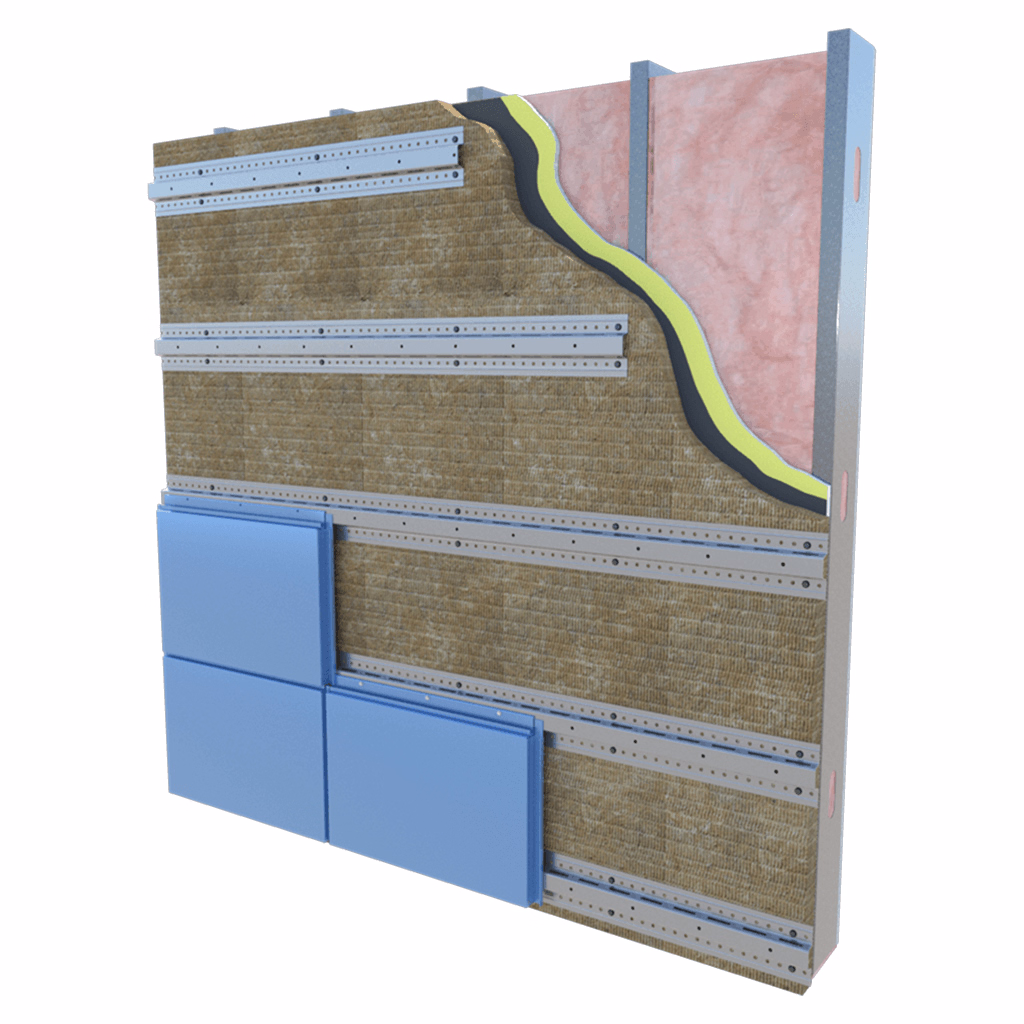

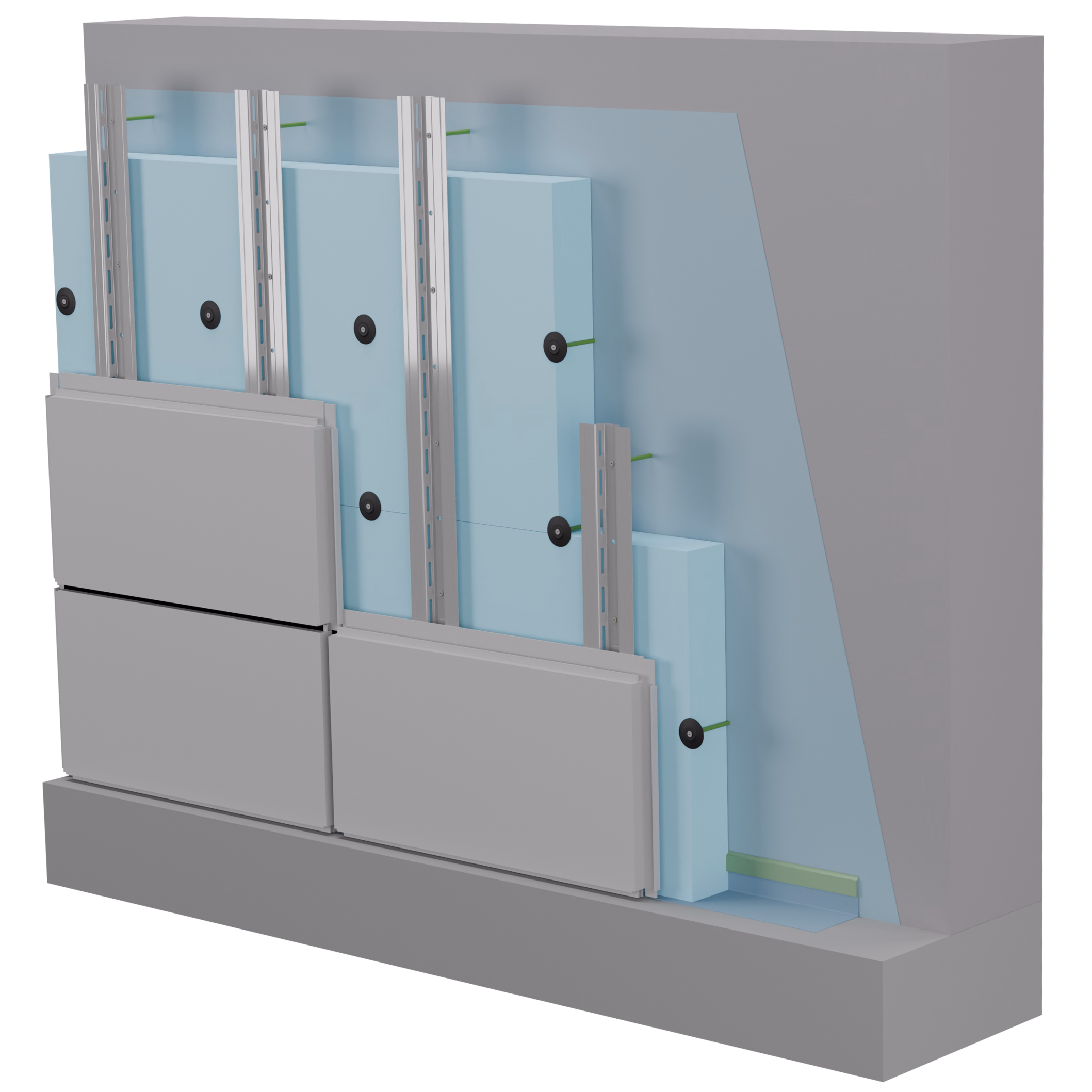

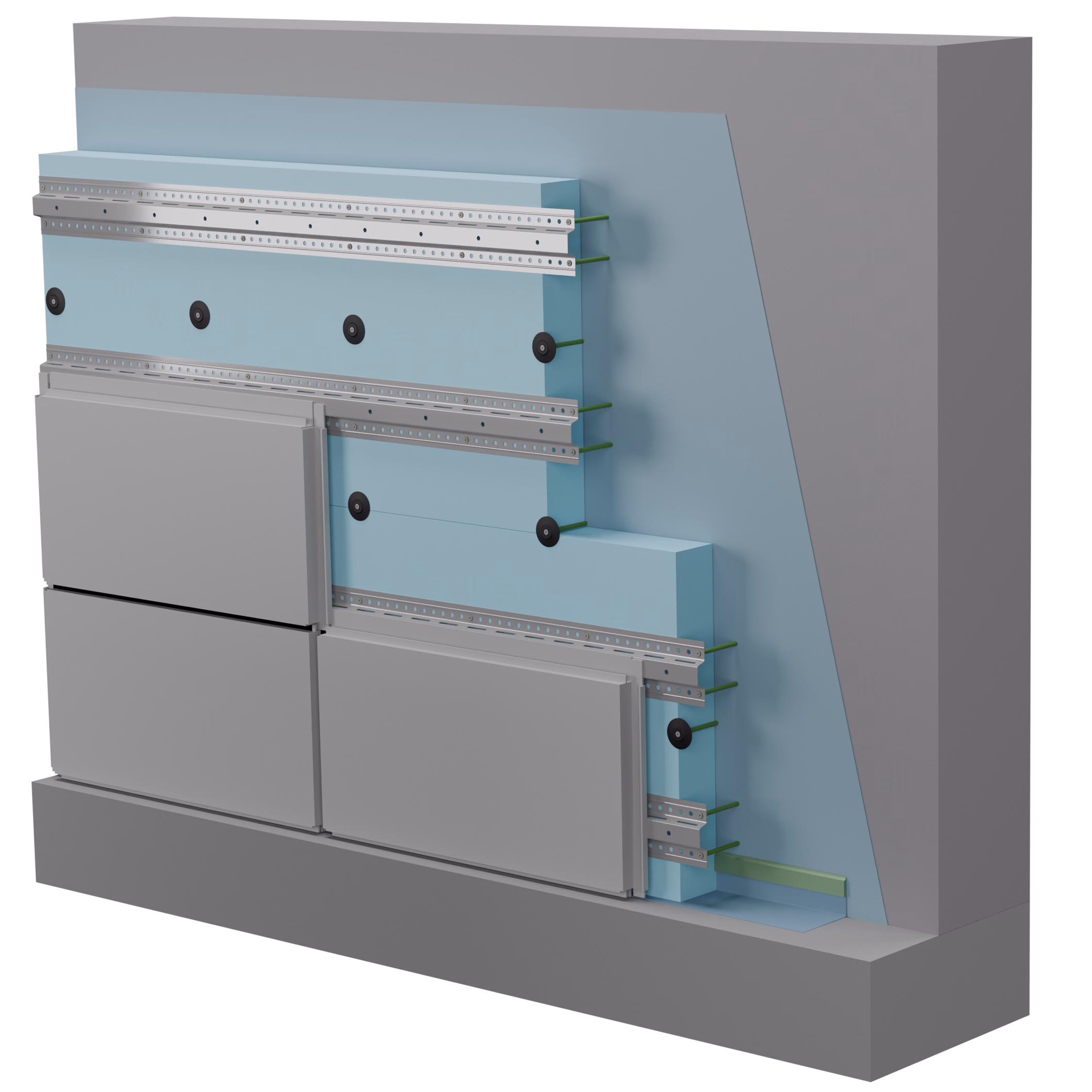

ProChannel Ci Cladding Support system with Grip-Deck TubeSeal® technology is a thermally efficient structural exterior rainscreen wall cladding attachment system that is intended to minimize penetrations through the insulation and AWRB layers. This system can be installed with the hat channel running horizontally or vertically depending on substrate and wall assembly.

  • Creates a 7/8" vented rainscreen air cavity.
  • Standard 12'-0" length.
  • Thermal performance and load capacity tables available.

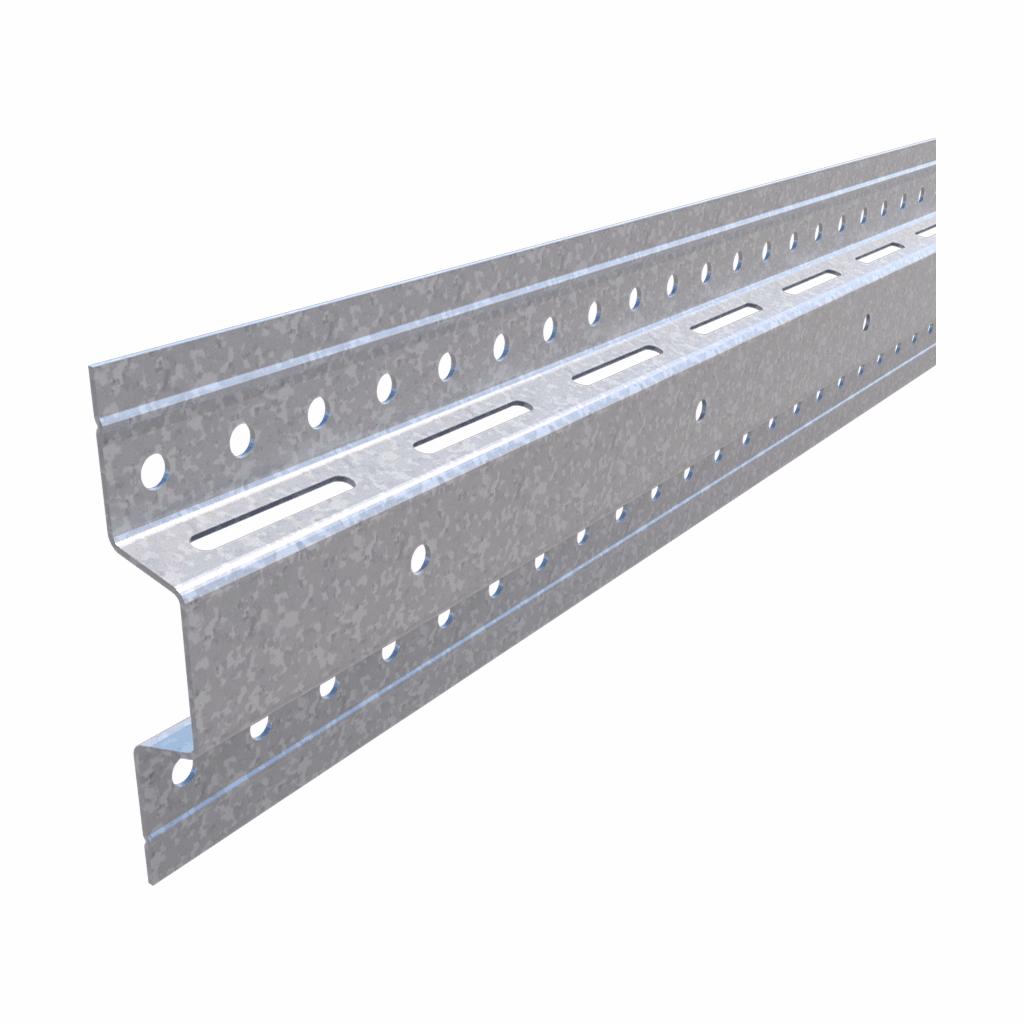

  • Stocked in 54 mils (16ga) galvanized CP90 steel.

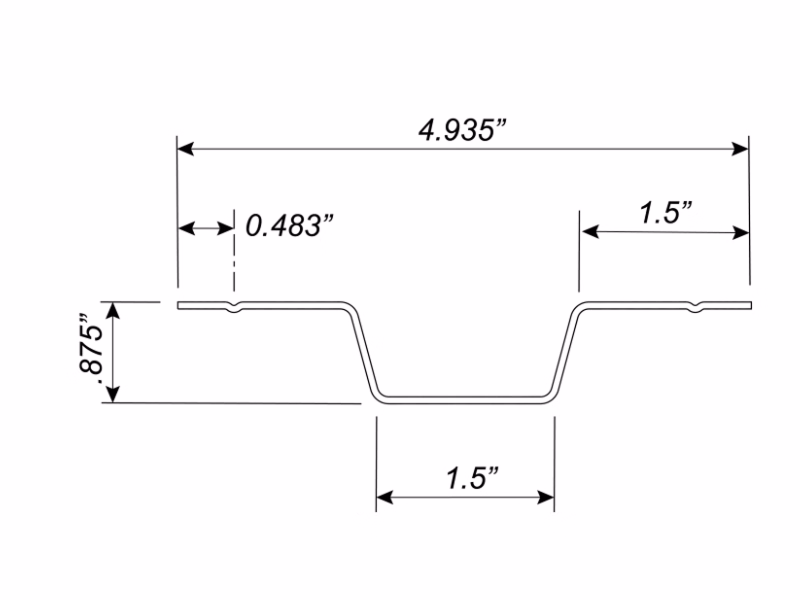

  • 1-1/2" wide flange for cladding screw attachment.

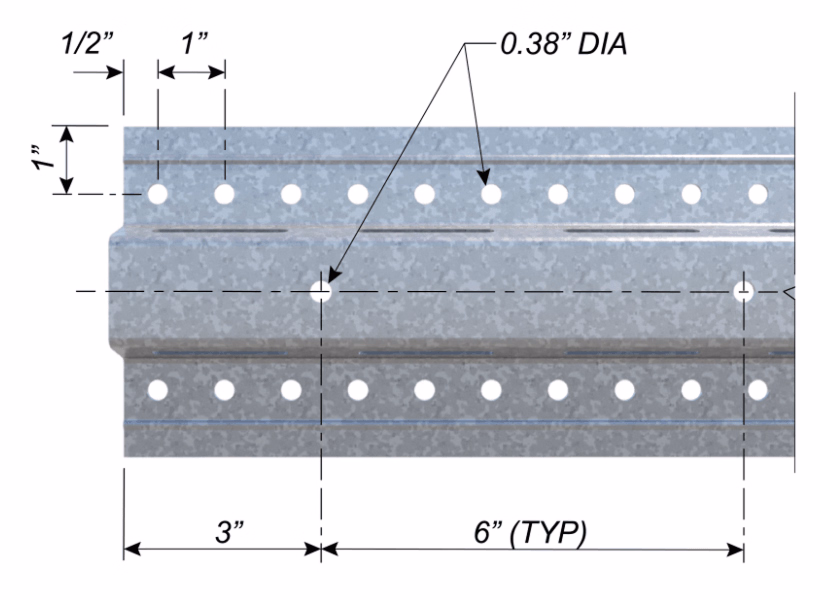

  • Prepunched holes in flange at 1" o.c. for all screw spacings.

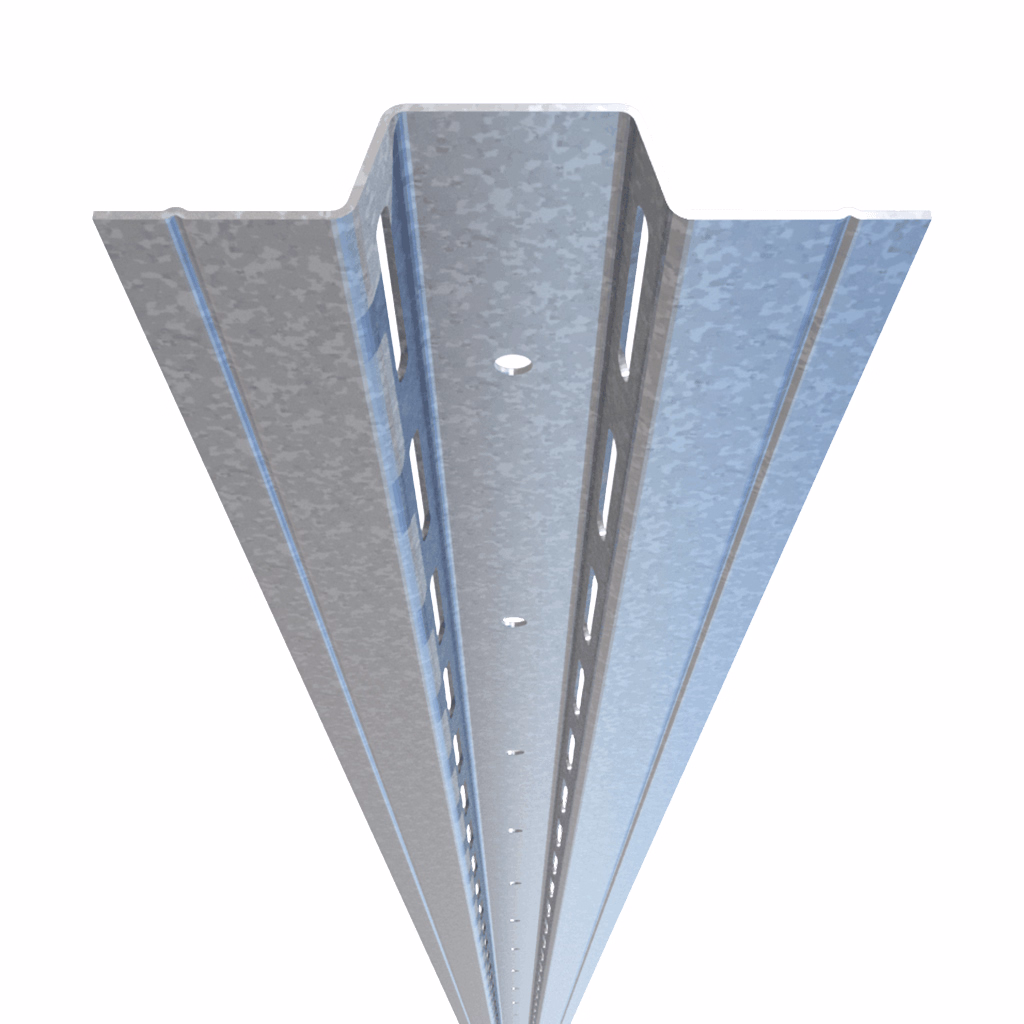

  • Slotted holes for moisture weeping and ventilation.

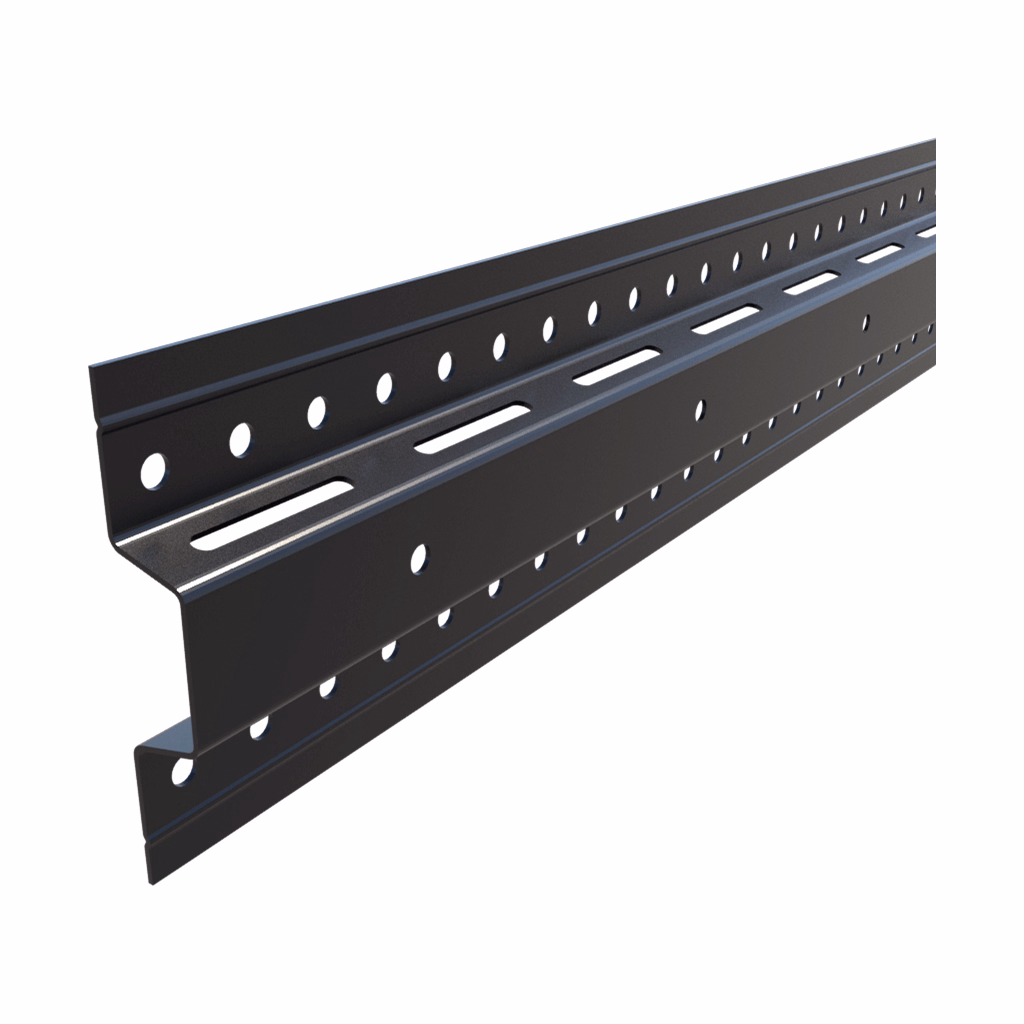

  • Also available in anodized black.
Find a Distributor
Material
galvanized CP90 steel

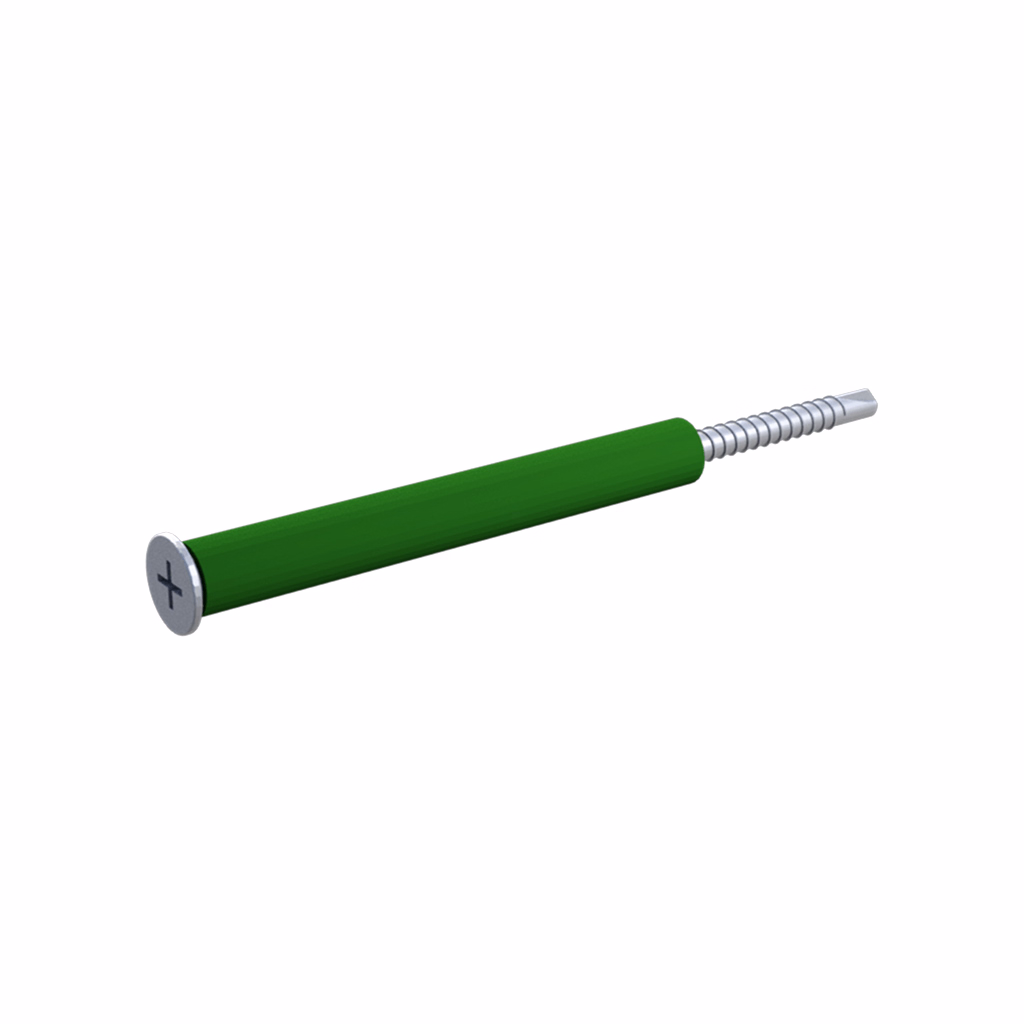

Part No. Fastener Type Part Length for Nom. Thickness Pkg Qty Pkg Wt
HCTS-HL-1000
HiLo
1" insulation
250 pcs. / 500 pcs.
4.9 lbs. / 9.8 lbs.
HCTS-HL-1500
HiLo
1.5" insulation
250 pcs. / 500 pcs.
5.9 lbs. / 10.8 lbs.
HCTS-HL-2000
HiLo
2" insulation
250 pcs. / 500 pcs.
7.2 lbs. / 11.8 lbs.
HCTS-HL-2500
HiLo
2.5" insulation
250 pcs. / 500 pcs.
8.4 lbs. / 12 lbs.
HCTS-HL-3000
HiLo
3" insulation
250 pcs. / 500 pcs.
9.1 lbs. / 16 lbs.
HCTS-HL-3500
HiLo
3.5" insulation
250 pcs. / 500 pcs.
9.9 lbs. / 16 lbs.
HCTS-HL-4000
HiLo
4" insulation
250 pcs. / 500 pcs.
10.2 lbs. / 17 lbs.
HCTS-SD-1000
SDS
1" insulation
250 pcs. / 500 pcs.
4.9 lbs. / 9.8 lbs.
HCTS-SD-1500
SDS
1.5" insulation
250 pcs. / 500 pcs.
5.9 lbs. / 10.8 lbs.
HCTS-SD-2000
SDS
2" insulation
250 pcs. / 500 pcs.
7.2 lbs. / 11.8 lbs.
HCTS-SD-2500
SDS
2.5" insulation
250 pcs. / 500 pcs.
8.4 lbs. / 14 lbs.
HCTS-SD-3000
SDS
3" insulation
250 pcs. / 500 pcs.
9.1 lbs. / 15 lbs.
HCTS-SD-3500
SDS
3.5" insulation
250 pcs. / 500 pcs.
9.9 lbs. / 16 lbs.
HCTS-SD-4000
SDS
4" insulation
250 pcs. / 500 pcs.
10.2 lbs. / 17 lbs.
