Grip-Deck® HiLo Thread Screw

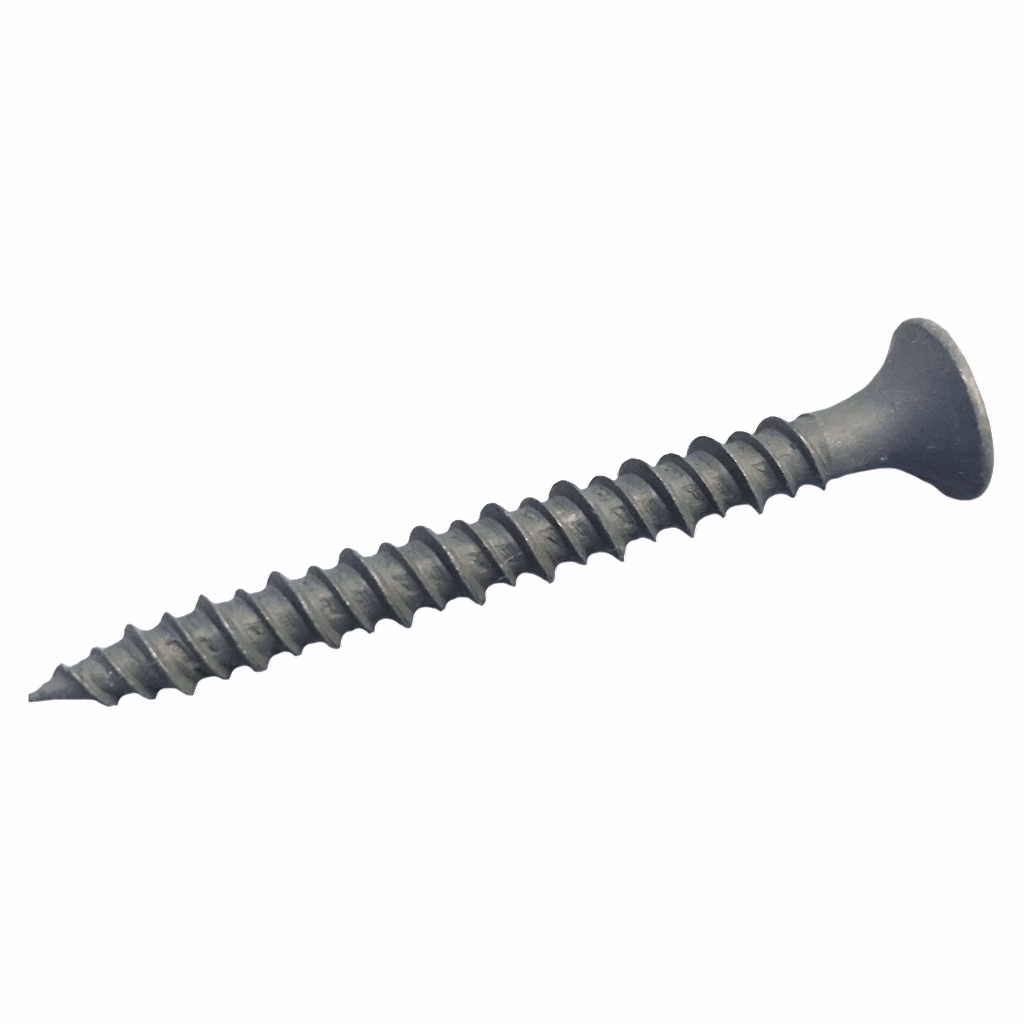

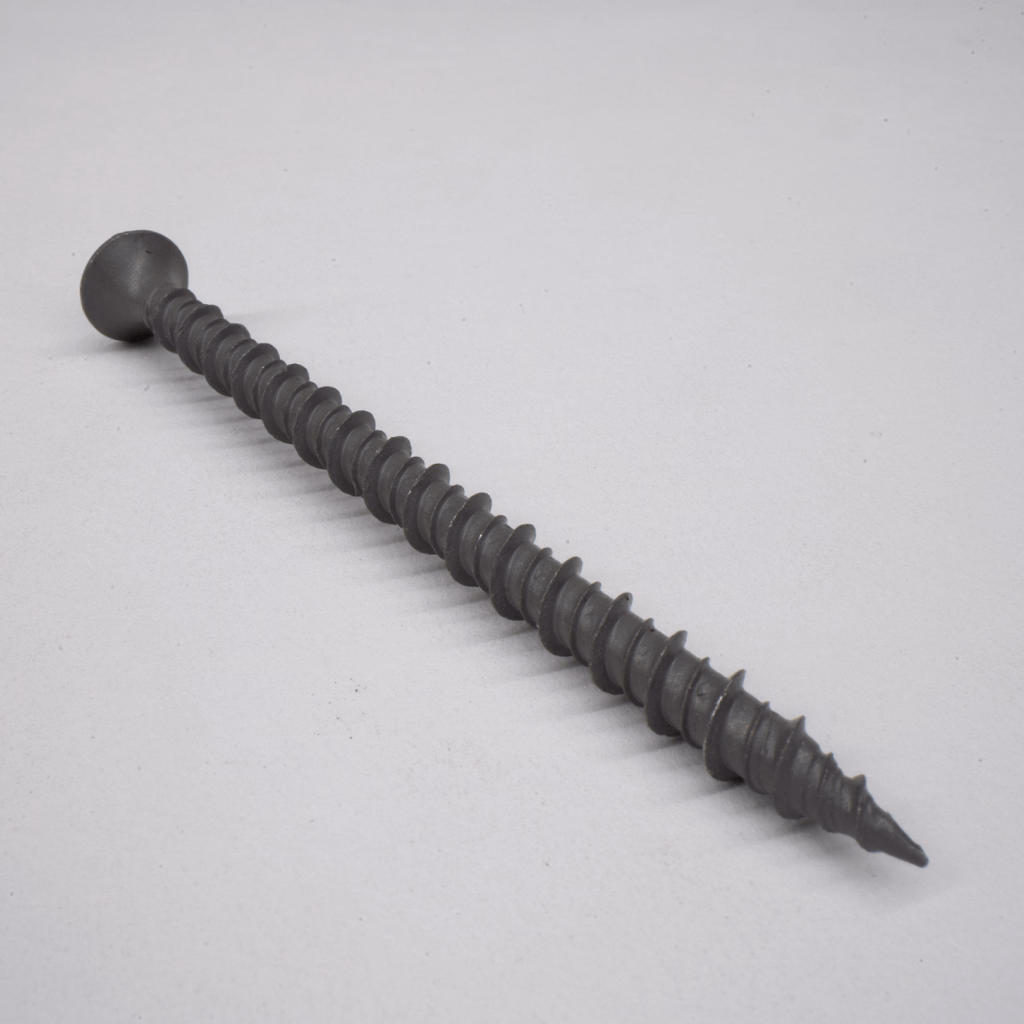

Weather resistant, ceramic coated Hi-Lo screws available in lengths from 1-5/8" up to 6". Use with TRUFAST washers to attach rigid insulation or lath to wood or light gauge steel substrates.

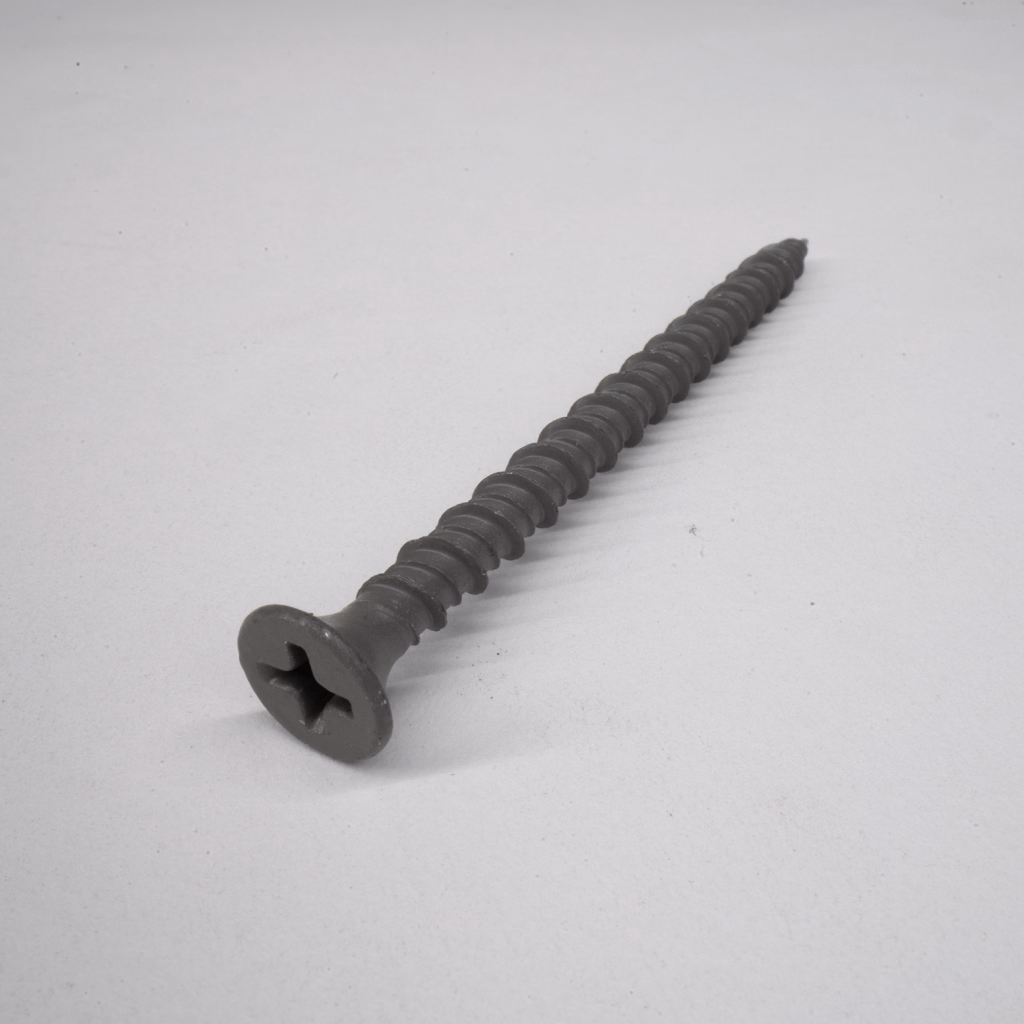

- Use with wood and light gauge metal substrates, Bugle head with Philips drive, Ceramic coated for corrosion protection
- Product Data Sheet
- Spec Document
- Detail Drawings PDF DXF DWG
|
Code Approvals & Listings
|
ASTM C-1513, ASTM B-117
|
|
Material
|
Carbon steel with proprietary exterior grade coating
|
|
Coating
|
Ceramic Coating
|
| Part No. | Major Diameter | Part Length | Head Dia. | Thread Dia. | Pkg Qty | Pkg Wt | Pkg Type |
|---|---|---|---|---|---|---|---|
|
FHL07-1625
|
#7
|
1-5/8"
|
0.33ʺ
|
0.160ʺ
|
1000 pcs.
|
6 lbs.
|
Bulk
|
|
FHL07C-1625
|
#7
|
1-5/8"
|
0.33ʺ
|
0.160ʺ
|
1000 pcs.
|
6 lbs.
|
*Collated
|
|
FHL07-2000
|
#7
|
2"
|
0.33ʺ
|
0.160ʺ
|
1000 pcs.
|
7 lbs.
|
Bulk
|
|
FHL07C-2000
|
#7
|
2"
|
0.33ʺ
|
0.160ʺ
|
1000 pcs.
|
7 lbs.
|
*Collated
|
|
FHL08-2500
|
#8
|
2-1/2"
|
0.33ʺ
|
0.178ʺ
|
1000 pcs.
|
10 lbs.
|
Bulk
|
|
FHL08-3000
|
#8
|
3"
|
0.33ʺ
|
0.178ʺ
|
1000 pcs.
|
12 lbs.
|
Bulk
|
|
FHL10-3500
|
#10
|
3-1/2"
|
0.36ʺ
|
0.185ʺ
|
1000 pcs.
|
19 lbs.
|
Bulk
|
|
FHL10-4000
|
#10
|
4"
|
0.36ʺ
|
0.185ʺ
|
1000 pcs.
|
21 lbs.
|
Bulk
|
|
FHL10-5000
|
#10
|
5"
|
0.36ʺ
|
0.185ʺ
|
1000 pcs.
|
26 lbs.
|
Bulk
|
|
FHL10-6000
|
#10
|
6"
|
0.36ʺ
|
0.185ʺ
|
1000 pcs.
|
31 lbs.
|
Bulk
|

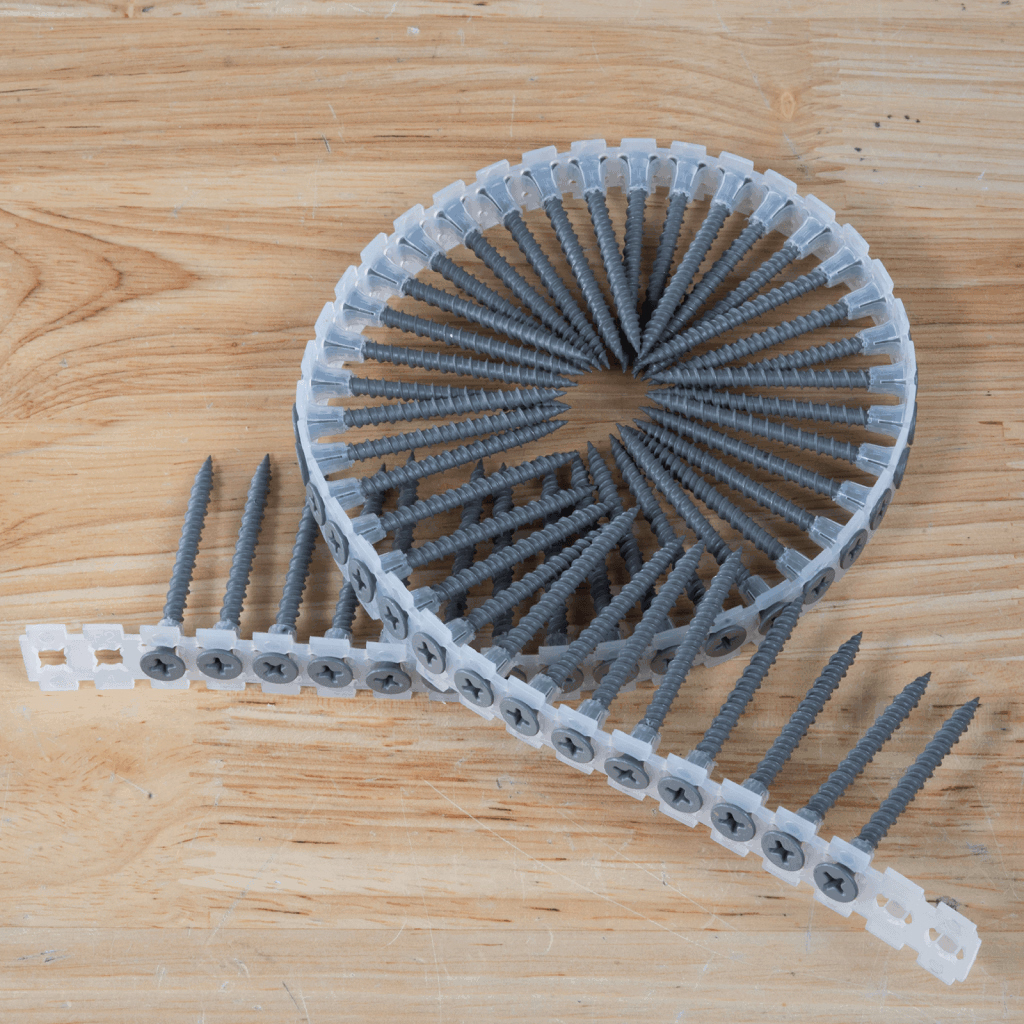

| *Collated fasteners for use with Grip-Lok® Autofeed Fastening System | |||||||
