- Wall Applications

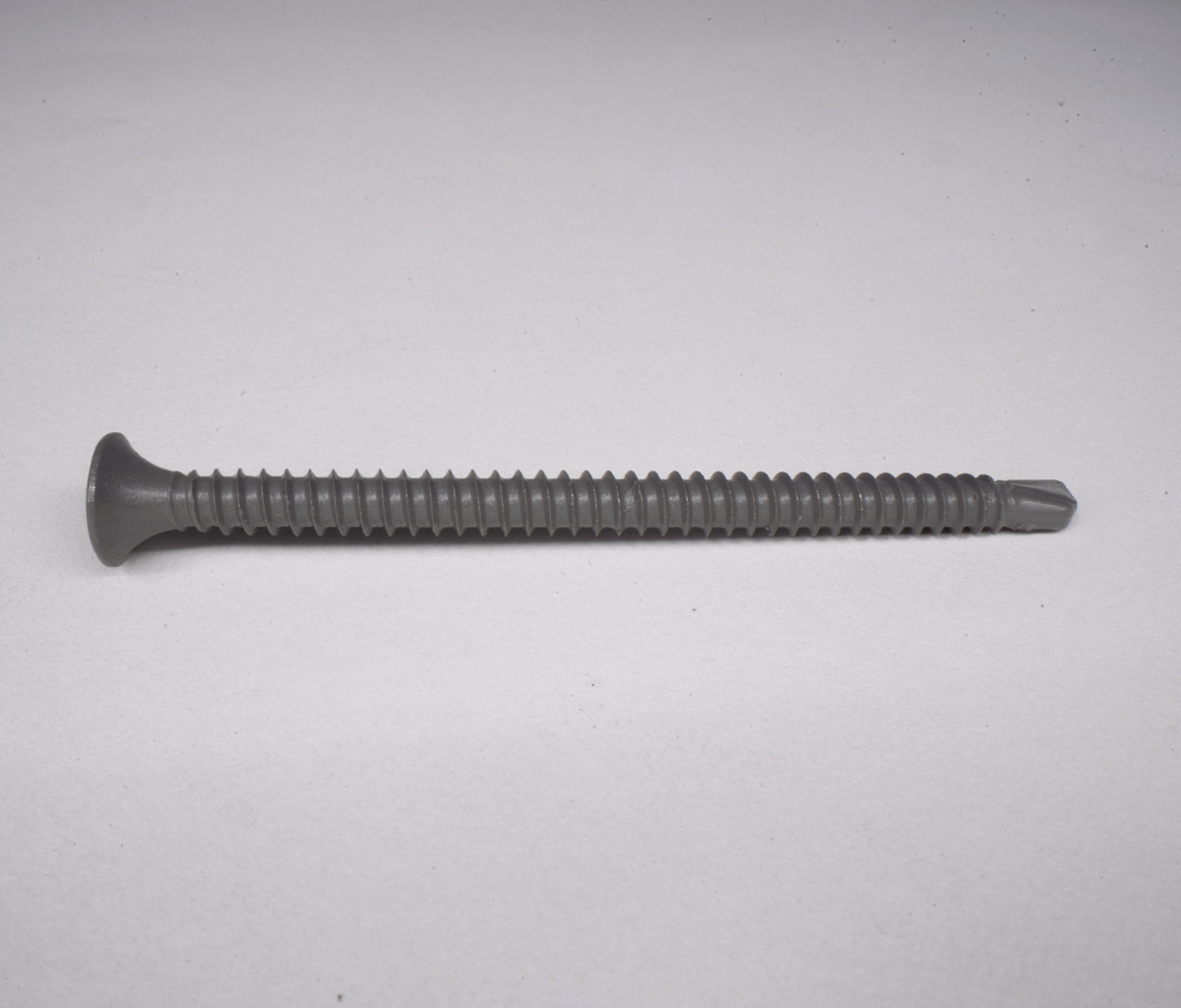

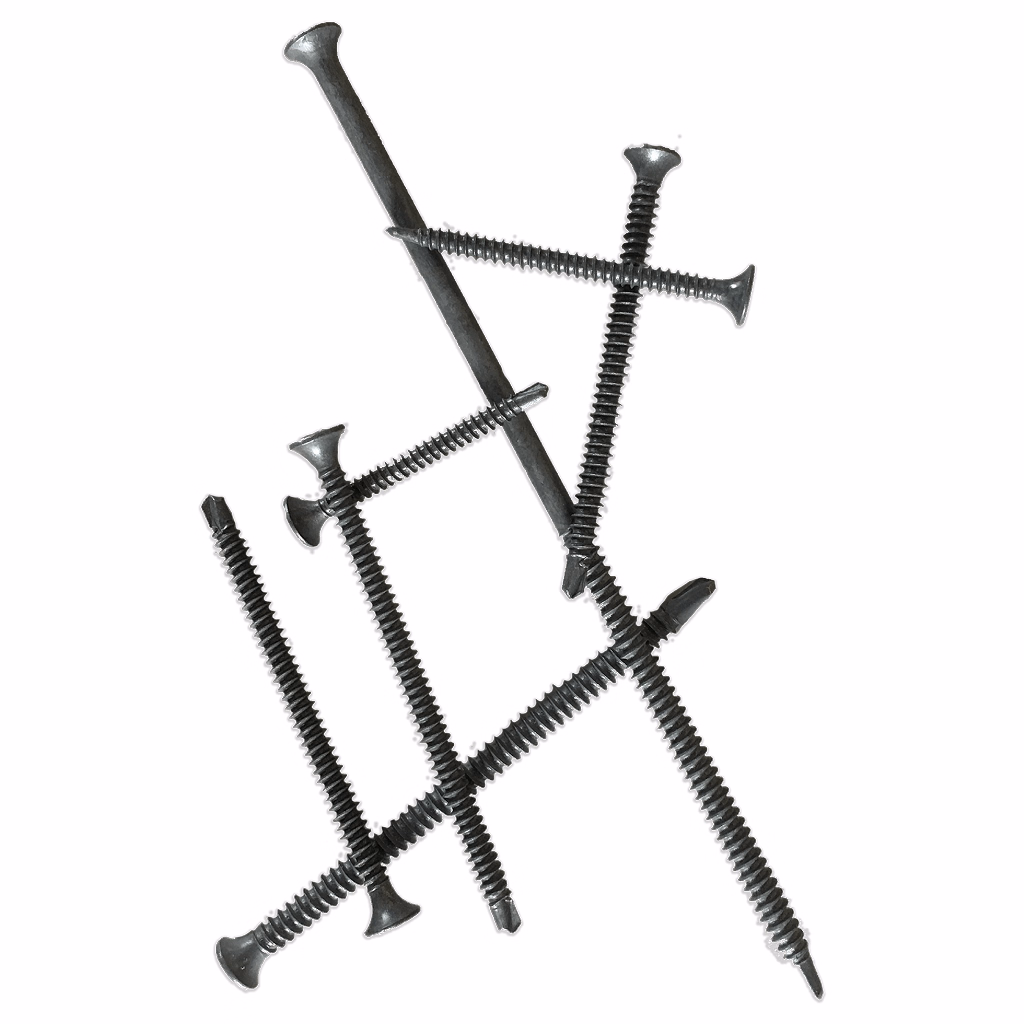

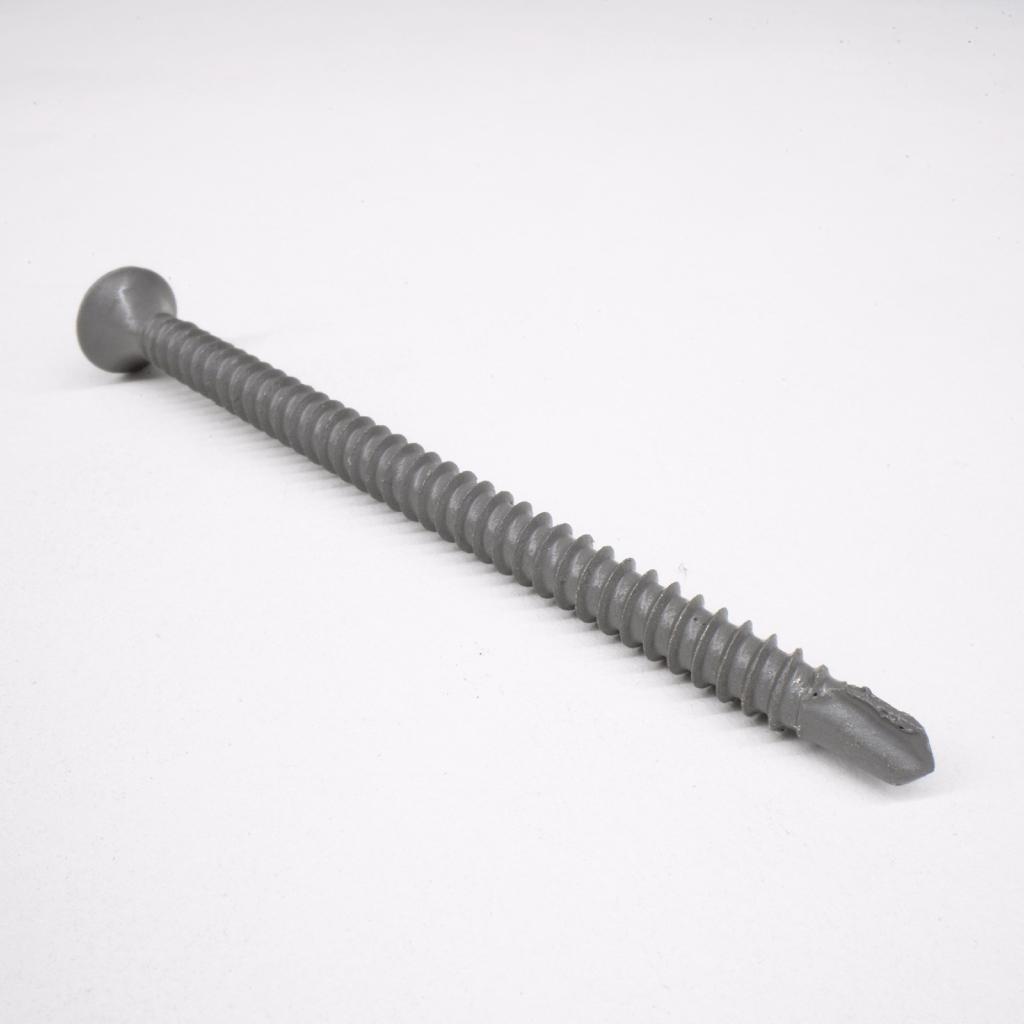

Grip-Deck® Self-Drilling Screw
Weather resistant, ceramic coated self-drilling screws. Available in lengths from 1-5/8" up to 6". Used for attaching continuous insulation, lath, and building wrap to heavy gauge steel studs.
- Ceramic coating for corrosion resistance, ASTM B117.

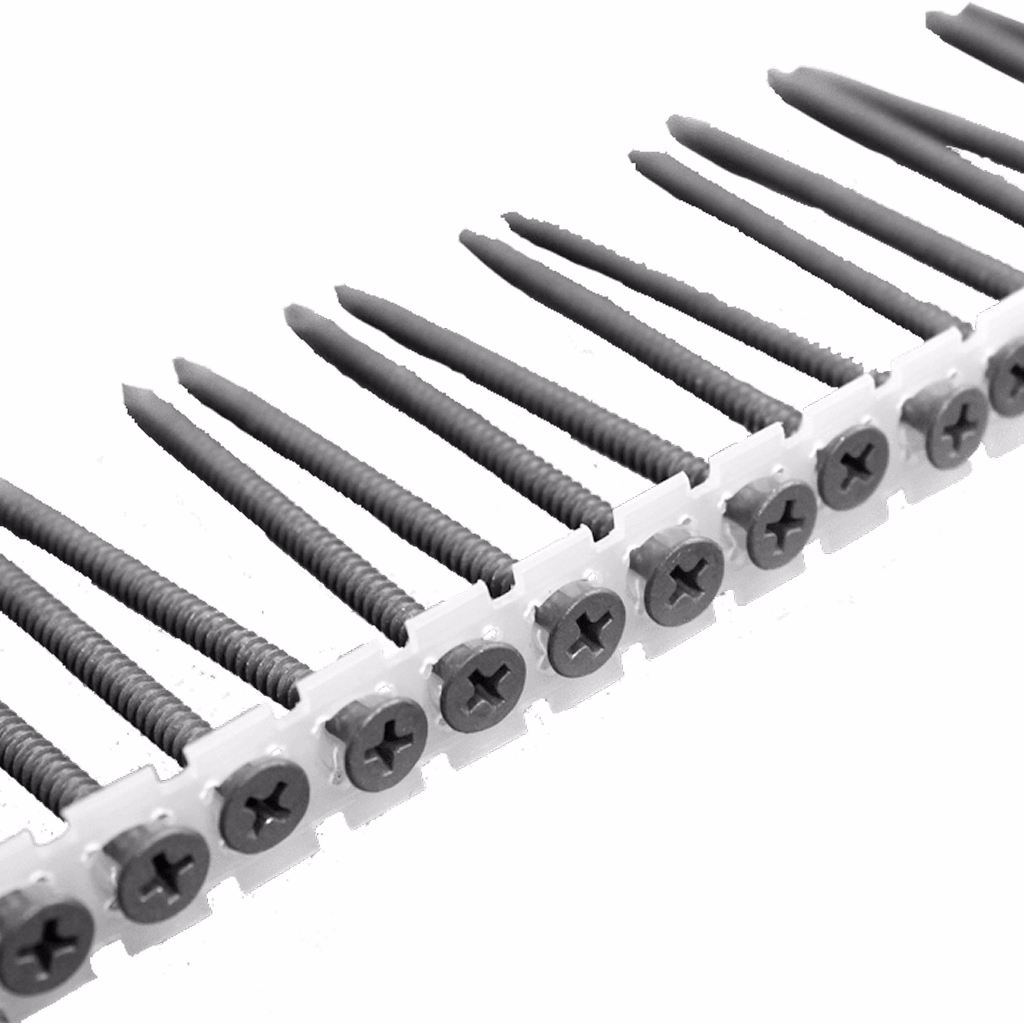

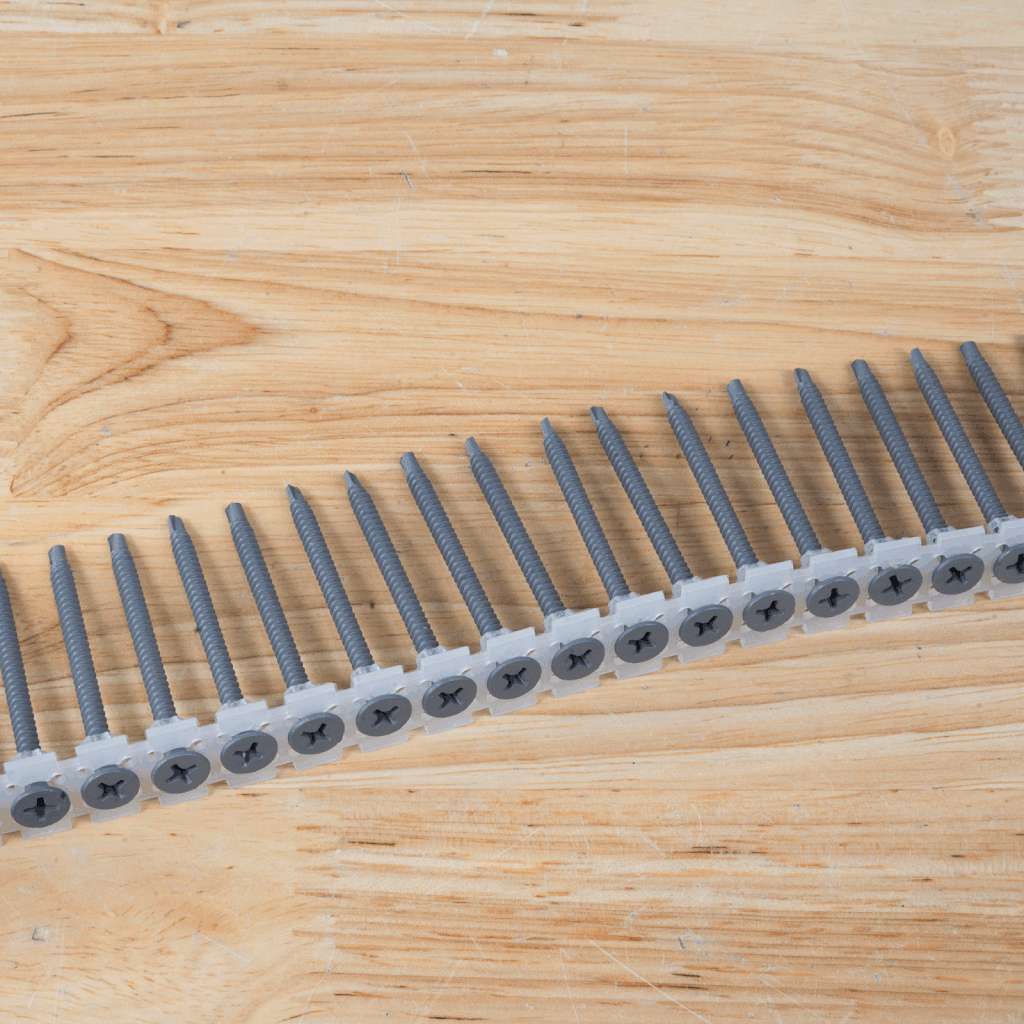

- Available in bulk (1-5/8" - 6") or collated (1-5/8" - 3").
- Self-drilling for attachment to heavy gauge steel studs (12 ga. thru 18 ga.).

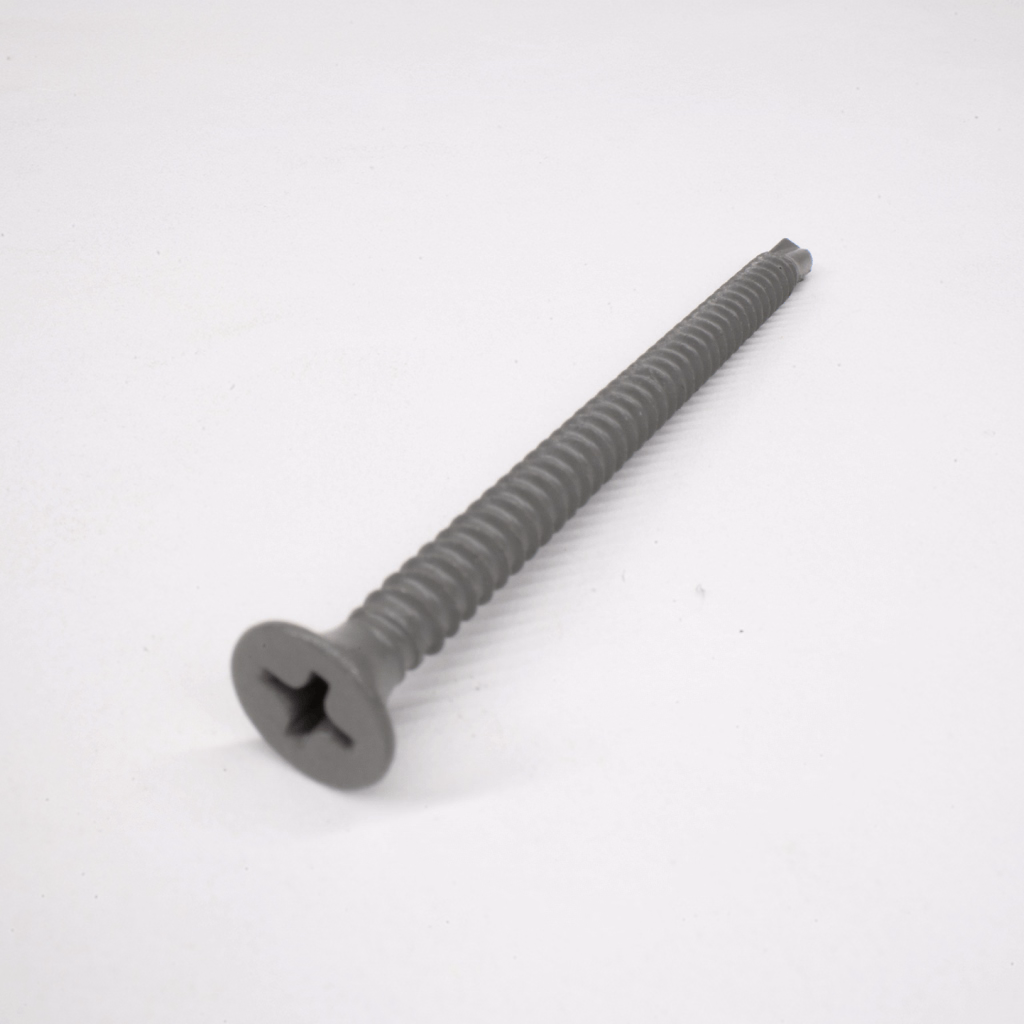

- Phillips drive with bugle head.
- Product Data Sheet
- Spec Document
- Detail Drawings PDF DXF DWG
|
Code Approvals & Listings
|
ASTM C-1513, ASTM B-117
|
|
Material
|
Carbon steel with proprietary exterior grade coating
|
|
Coating
|
Ceramic Coating
|
| Part No. | Part Length | Pkg Qty | Pkg Wt | Packaging Type |
|---|---|---|---|---|
|
FSD06-1625
|
#6 x 1-5/8"
|
1000 pcs.
|
6 lbs.
|
Bulk
|
|
FSD06C-1625
|
#6 x 1-5/8"
|
1000 pcs.
|
6 lbs.
|
Collated*
|
|
FSD06-2000
|
#6 x 2"
|
1000 pcs.
|
6 lbs.
|
Bulk
|
|
FSD06C-2000
|
#6 x 2"
|
1000 pcs.
|
6 lbs.
|
Collated*
|
|
FSD08-2500
|
#8 x 2-1/2"
|
1000 pcs.
|
10 lbs.
|
Bulk
|
|
FSD08C-2500
|
#8 x 2-1/2"
|
1000 pcs.
|
10 lbs.
|
Collated*
|
|
FSD08C-3000
|
#8 x 3"
|
1000 pcs.
|
12 lbs.
|
Collated*
|
|
FSD10-3000
|
#10 x 3"
|
1000 pcs.
|
12 lbs.
|
Bulk
|
|
FSD10-3500
|
#10 x 3-1/2"
|
1000 pcs.
|
18 lbs.
|
Bulk
|
|
FSD10-4000
|
#10 x 4"
|
1000 pcs.
|
22 lbs.
|
Bulk
|
|
FSD10-4500
|
#10 x 4-1/2"
|
1000 pcs.
|
24 lbs.
|
Bulk
|
|
FSD10-5500
|
#10 x 5-1/2"
|
1000 pcs.
|
29 lbs.
|
Bulk
|
|
FSD10-6000
|
#10 x 6"
|
1000 pcs.
|
31 lbs.
|
Bulk
|
| *For use with Grip-Lok® Autofeed Fastening System | ||||
