- Wall Applications
Plasti-Grip® PMF Anchor

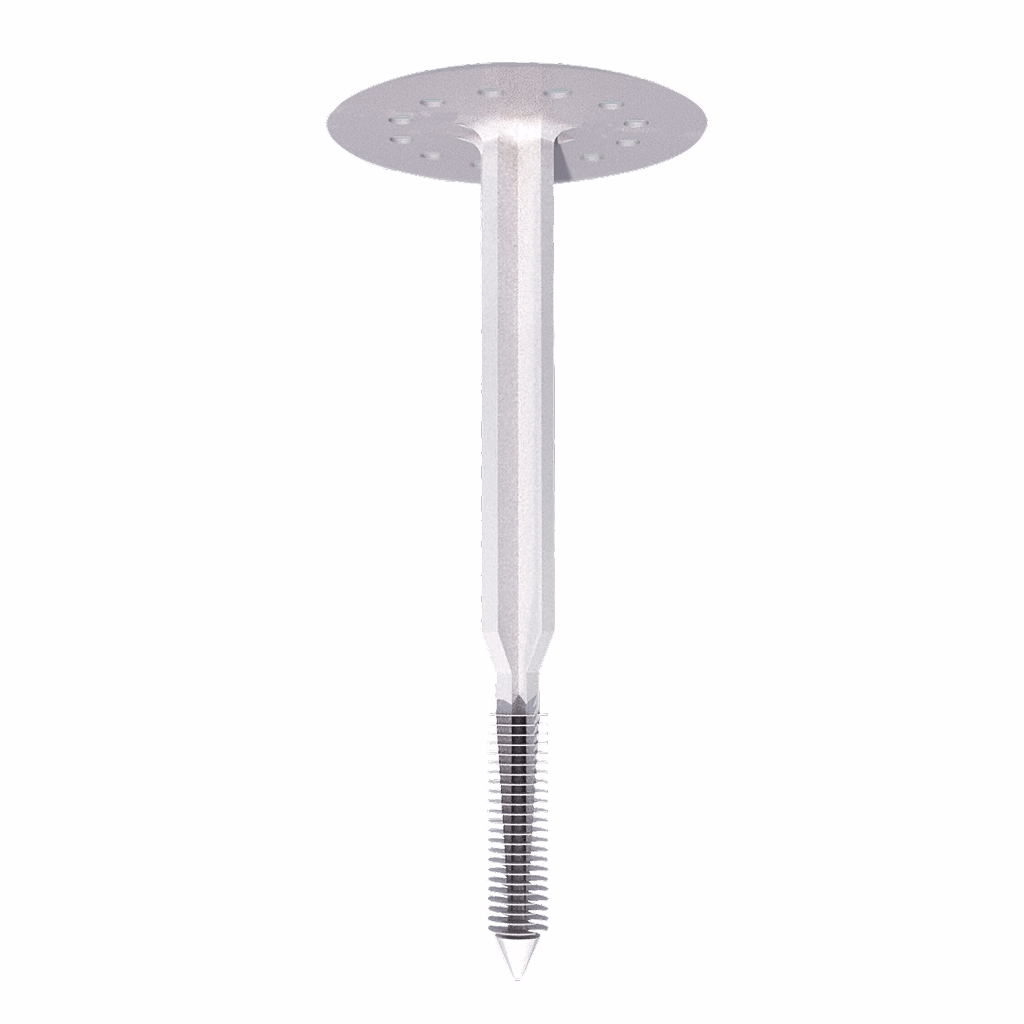

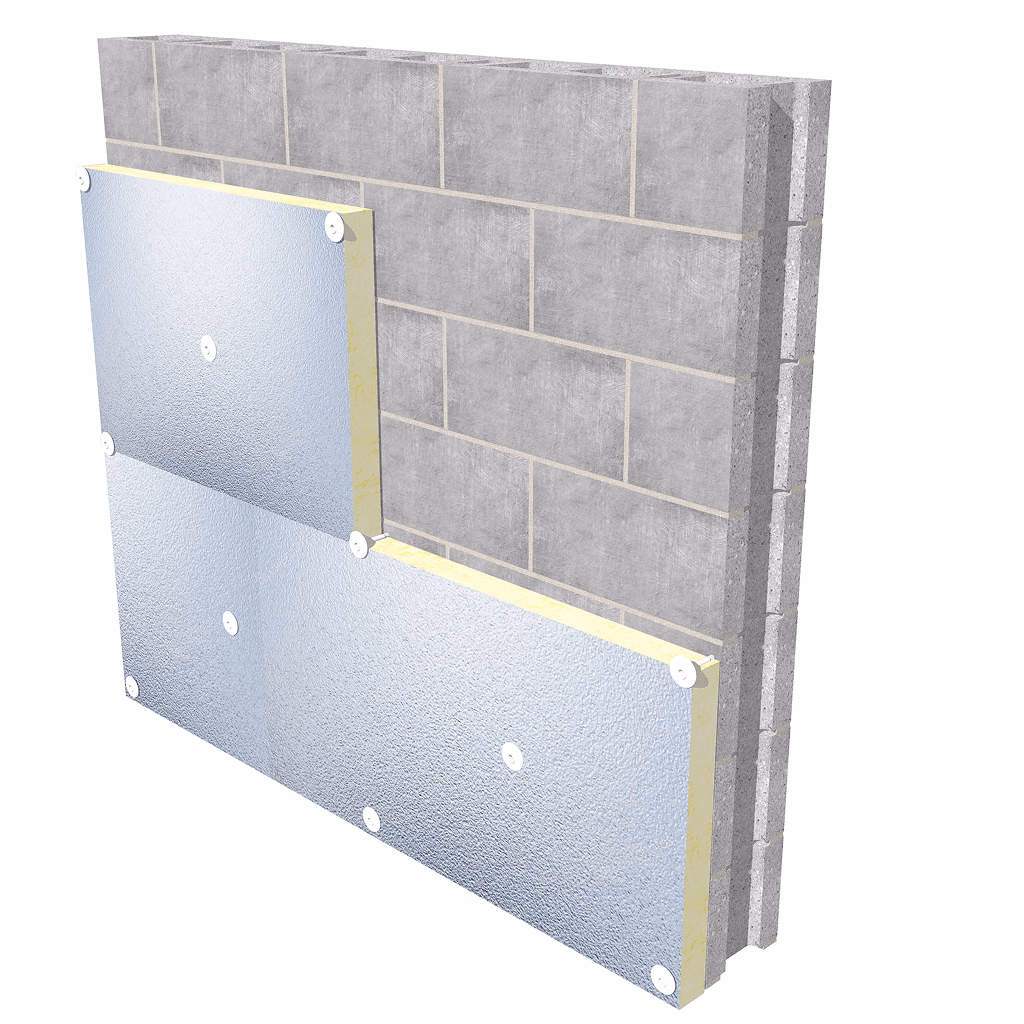

TRUFAST®’s Plasti-Grip® PMF Anchor is a molded plastic insulation fastener for masonry substrates. Permanently attach rigid and semi-rigid insulation to masonry, concrete, block, brick, or stone substrates. The 2-3/8" diameter head secures the insulation, while the plastic shank prevents thermal-bridging. Attaches insulation 1" - 5" thick, with no adhesives, screws, or pins required.
- Attaches all types of rigid insulation to concrete or masonry substrates.
- 2-3/8" diameter washer head.

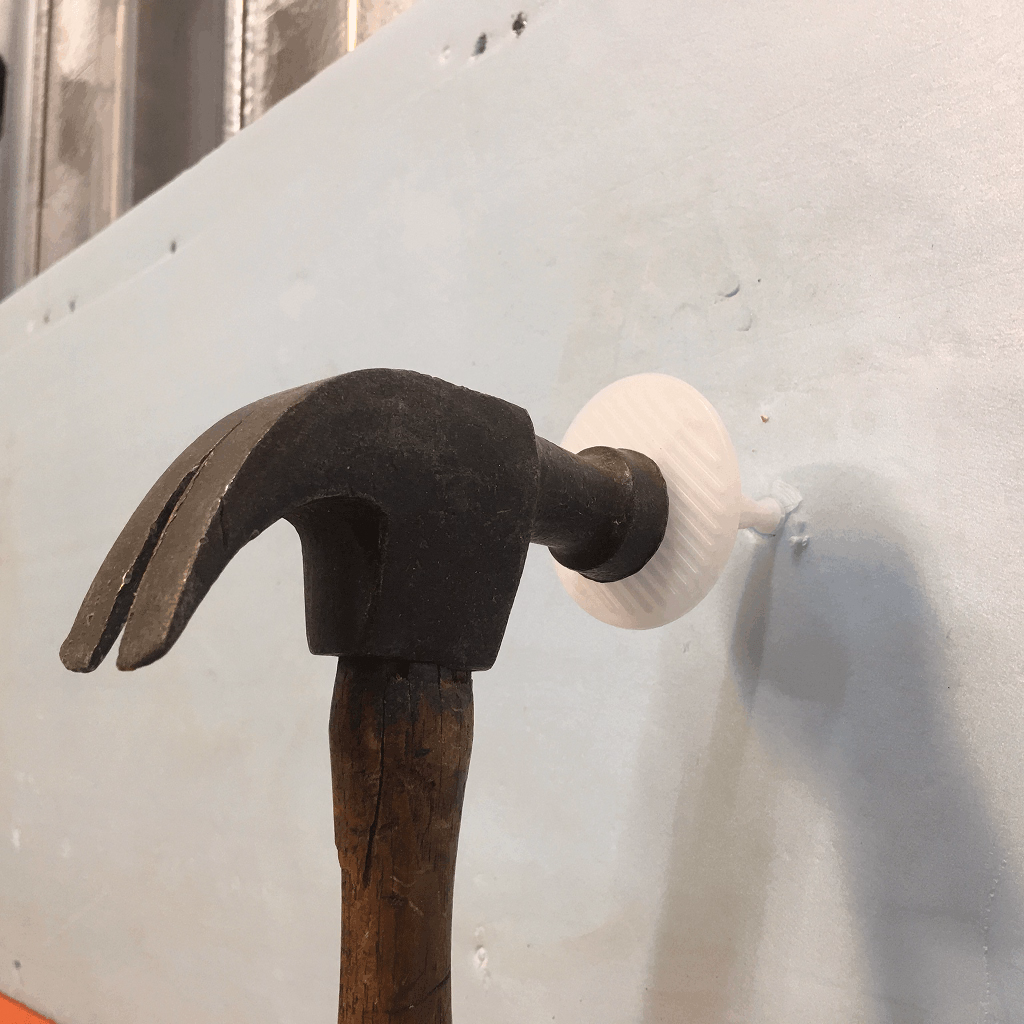

- Simple to install - drill and hammer.
- No pins, screws, or adhesives required.
- Solid plastic design reduces thermal-bridging by eliminating inefficient screws / pins.

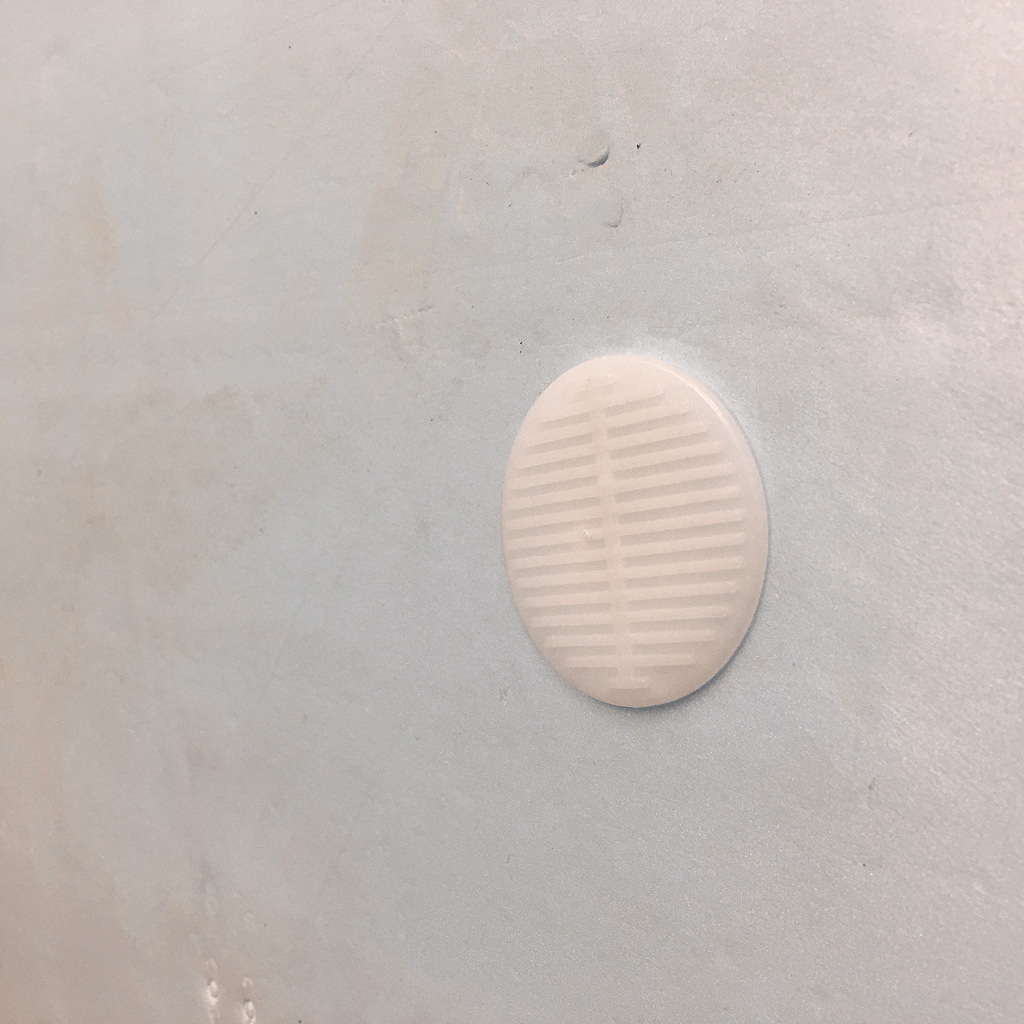

- Textured head design for basecoat adhesion when used with EIFS system.
|
Material
|
Polypropolene
|
|
Coating
|
Plastic
|

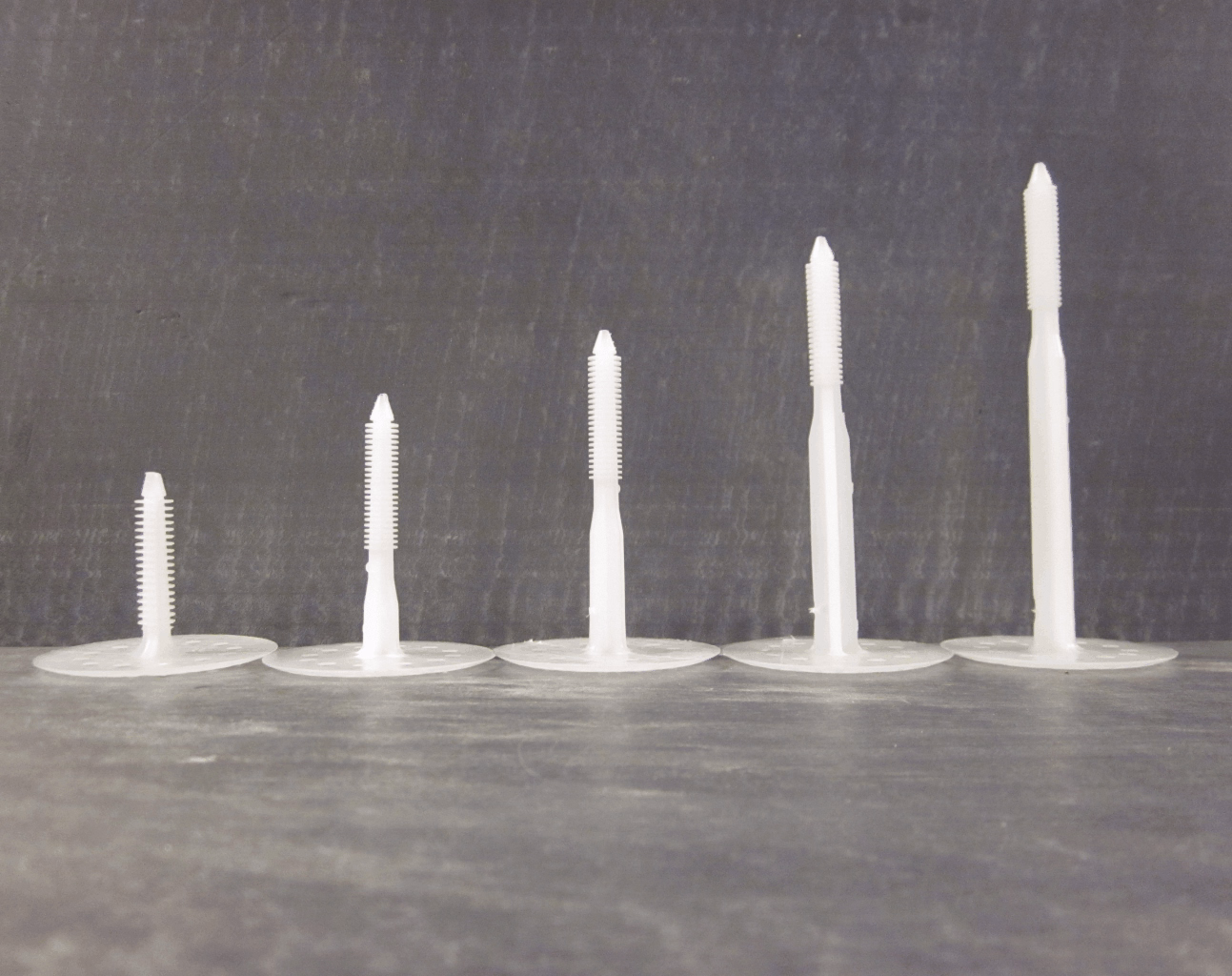

| Part No. | Part Length | Pkg Qty | Pkg Wt |
|---|---|---|---|
|
PMF-2000
|
2"
|
250
|
4 lbs.
|
|
PMF-2750
|
2-3/4"
|
250
|
5 lbs
|
|
PMF-3500
|
3-1/2"
|
250
|
6 lbs.
|
|
PMF-4500
|
4-1/2"
|
250
|
6 lbs.
|
|
PMF-5375
|
5-3/8"
|
200
|
8 lbs.
|
|
PMF-6250
|
6-1/4"
|
200
|
5.6 lbs.
|
