SIP Insulated Panel Fasteners
TRUFAST® SIP Fasteners are specifically engineered for attaching structural insulated panels (SIPs) and nailable insulation panels to wood and steel substrates. Featuring a large, pancake head style with a 6-lobe drive, TRUFAST SIP Fasteners drive quickly and smoothly, and draw panels securely without the need of a washer. Only TRUFAST offers three fastener styles for use in wood, corrugated steel and steel members without pre-drilling!
- Case-hardened steel construction for strength
- Large pancake-style head provides high pull-through resistance
- 6-lobe drive bit recess for quick and efficient installation
- Available in many variations and lengths to suit specific applications
|
Code Approvals & Listings
|
FM Global, Miami-Dade County, State of Florida #4500, CE 2809-CPR-M0034 (SIPLD) and CE 2809-CPR-M0035 (SIPTP) European Technical Assessment ETA 19/0616 DOP No. DoPTru02-2022-01-03; DrJ Certification TERs 1909-04 & 2101-01
|
|
Material
|
Case-hardened & tempered carbon steel
|
|
Coating
|
SIPTP, SIPLD, SIPHD, and Partial Thread SIPHD/SIPLD - Tru-Kote Epoxy E-Coat; HCR coating for SIPTP-HCR, SIPLD-HCR, SIPHD-HCR
|

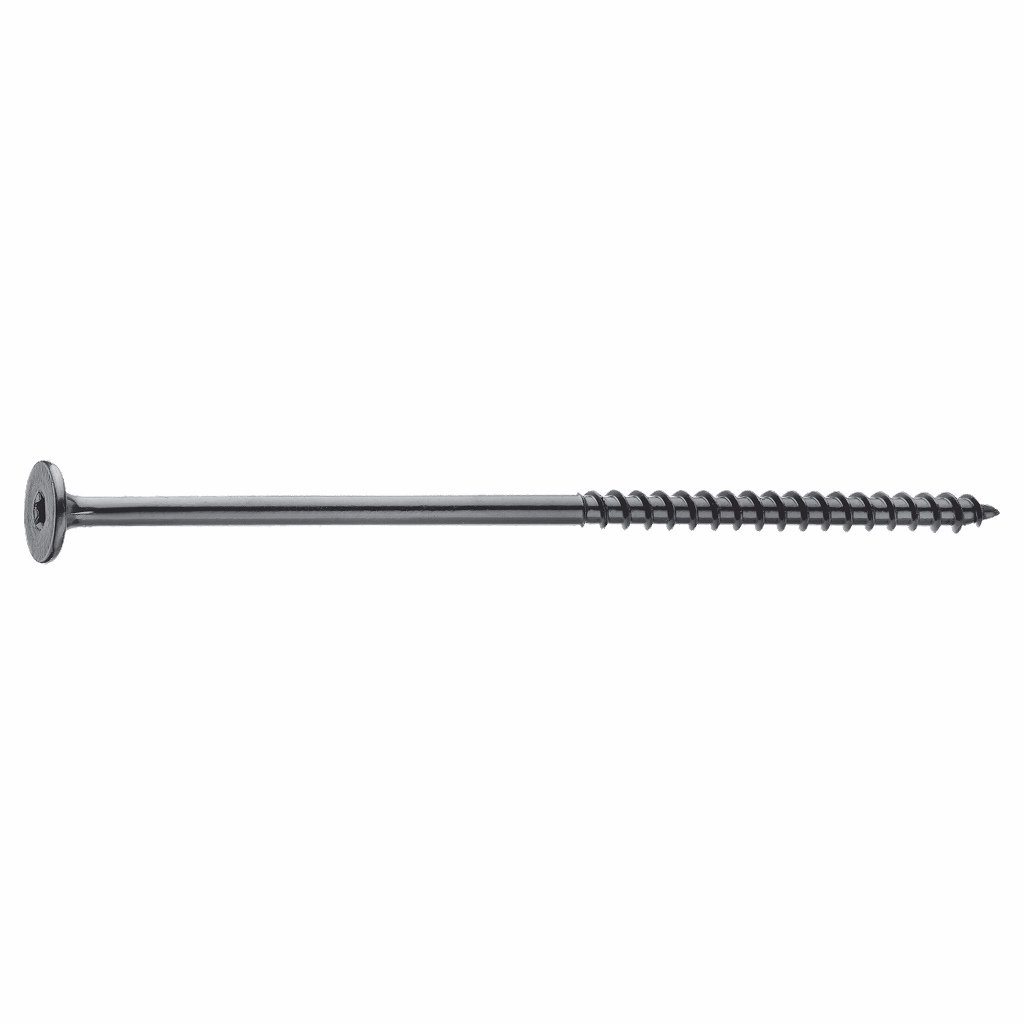

SIPTP Thread Point Fasteners
| Length | Part No. | Pkg Qty / Type | Pkg Wt | Skid Qty |
|---|---|---|---|---|
|
2"
|
SIPTP-2000
|
500 / Bucket
|
12.4 lbs.
|
80
|
|
2-1/2"
|
SIPTP-2500
|
500 / Bucket
|
14.4 lbs.
|
80
|
|
3"
|
SIPTP-3000
|
500 / Bucket
|
16.4 lbs.
|
80
|
|
3-1/2"
|
SIPTP-3500
|
500 / Bucket
|
18.4 lbs.
|
80
|
|
4"
|
SIPTP-4000
|
500 / Bucket
|
20.7 lbs.
|
80
|
|
4-1/2"
|
SIPTP-4500
|
500 / Bucket
|
22.7 lbs.
|
80
|
|
5"
|
SIPTP-5000
|
500 / Bucket
|
25.0 lbs.
|
60
|
|
5-1/2"
|
SIPTP-5500
|
500 / Bucket
|
27.0 lbs.
|
60
|
|
6"
|
SIPTP-6000
|
500 / Bucket
|
29.0 lbs.
|
60
|
|
6-1/2"
|
SIPTP-6500
|
500 / Bucket
|
29.8 lbs.
|
60
|
|
7"
|
SIPTP-7000
|
500 / Bucket
|
31.9 lbs.
|
60
|
|
7-1/2"
|
SIPTP-7500
|
500 / Bucket
|
34.0 lbs.
|
60
|
|
8"
|
SIPTP-8000
|
500 / Bucket
|
36.4 lbs.
|
60
|
|
8-1/2"
|
SIPTP-8500
|
250 / Bucket
|
19.5 lbs.
|
60
|
|
9"
|
SIPTP-9000
|
250 / Bucket
|
20.5 lbs.
|
60
|
|
10"
|
SIPTP-10000
|
250 / Bucket
|
22.5 lbs.
|
60
|
|
11"
|
SIPTP-11000
|
250 / Bucket
|
24.4 lbs.
|
60
|
|
12"
|
SIPTP-12000
|
250 / Bucket
|
27.3 lbs
|
60
|
|
13"
|
SIPTP-13000
|
250 / Carton
|
29.2 lbs.
|
30
|
|
14"
|
SIPTP-14000
|
250 / Carton
|
31.2 lbs.
|
30
|
|
15"
|
SIPTP-15000
|
250 / Carton
|
33.2 lbs.
|
30
|
|
16"
|
SIPTP-16000
|
250 / Carton
|
35.2 lbs.
|
30
|
| NOTE: Two (2) T-30 6-Lobe Driver Bits, BIT-T30-2000, included in each package. | ||||
| SIPTP Fasteners are designed for attaching panels to wood. | ||||

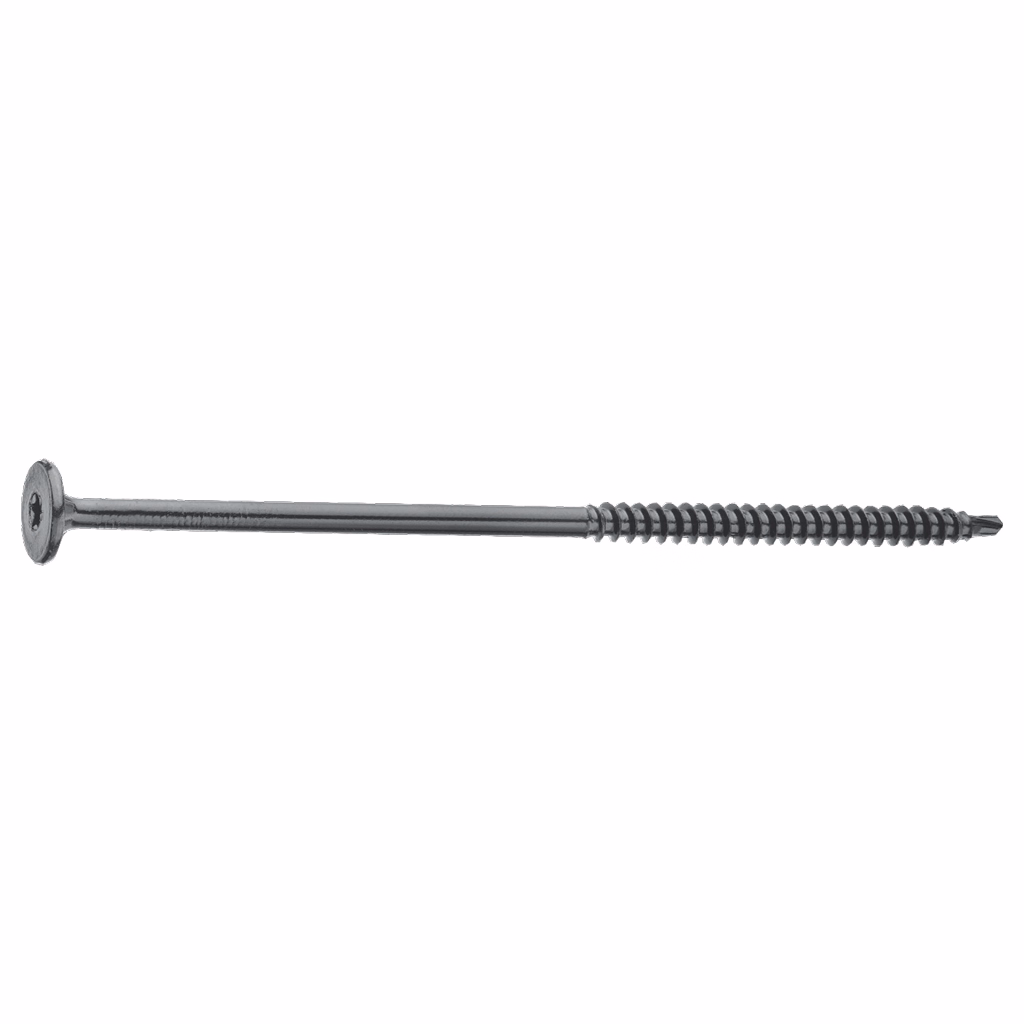

SIPLD Light-duty #2 Drill Point Fasteners
| Length | Part No. | Pkg Qty / Type | Pkg Wt | Skid Qty |
|---|---|---|---|---|
|
3"
|
SIPLD-3000
|
500 / Bucket
|
15.2 lbs.
|
80
|
|
3-1/2"
|
SIPLD-3500
|
500 / Bucket
|
17.4 lbs.
|
80
|
|
4"
|
SIPLD-4000
|
500 / Bucket
|
19.7 lbs.
|
80
|
|
4-1/2"
|
SIPLD-4500
|
500 / Bucket
|
21.9 lbs.
|
80
|
|
5"
|
SIPLD-5000
|
500 / Bucket
|
24.1 lbs.
|
60
|
|
5-1/2"
|
SIPLD-5500
|
500 / Bucket
|
26.0 lbs.
|
60
|
|
6"
|
SIPLD-6000
|
500 / Bucket
|
27.9 lbs.
|
60
|
|
6-1/2"
|
SIPLD-6500
|
500 / Bucket
|
29.8 lbs.
|
60
|
|
7"
|
SIPLD-7000
|
500 / Bucket
|
31.9 lbs.
|
60
|
|
7-1/2"
|
SIPLD-7500
|
500 / Bucket
|
33.8 lbs.
|
60
|
|
8"
|
SIPLD-8000
|
500 / Bucket
|
35.5 lbs.
|
60
|
|
8-1/2"
|
SIPLD-8500
|
250 / Bucket
|
20.2 lbs.
|
60
|
|
9"
|
SIPLD-9000
|
250 / Bucket
|
20.2 lbs.
|
60
|
|
9-1/2"
|
SIPLD-9500
|
250 / Bucket
|
21.2 lbs.
|
60
|
|
10"
|
SIPLD-10000
|
250 / Bucket
|
22.3 lbs.
|
60
|
|
11"
|
SIPLD-11000
|
250 / Bucket
|
24.0 lbs.
|
60
|
|
12"
|
SIPLD-12000
|
250 / Bucket
|
26.2 lbs.
|
60
|
|
13"
|
SIPLD-13000
|
250 / Carton
|
28.1 lbs.
|
30
|
|
14"
|
SIPLD-14000
|
250 / Carton
|
30.1 lbs.
|
30
|
|
15"
|
SIPLD-15000
|
250 / Carton
|
32.1 lbs.
|
30
|
|
16"
|
SIPLD-16000
|
250 / Carton
|
34.3 lbs.
|
30
|
|
18"
|
SIPLD-18000
|
250 / Carton
|
38.1 lbs.
|
30
|
| NOTE: Two (2) T-30 Driver Bits included in each package. | ||||
| SIPLD Fasteners are designed for attaching panels to wood and 22 - 18 ga. corrugated steel decks. | ||||

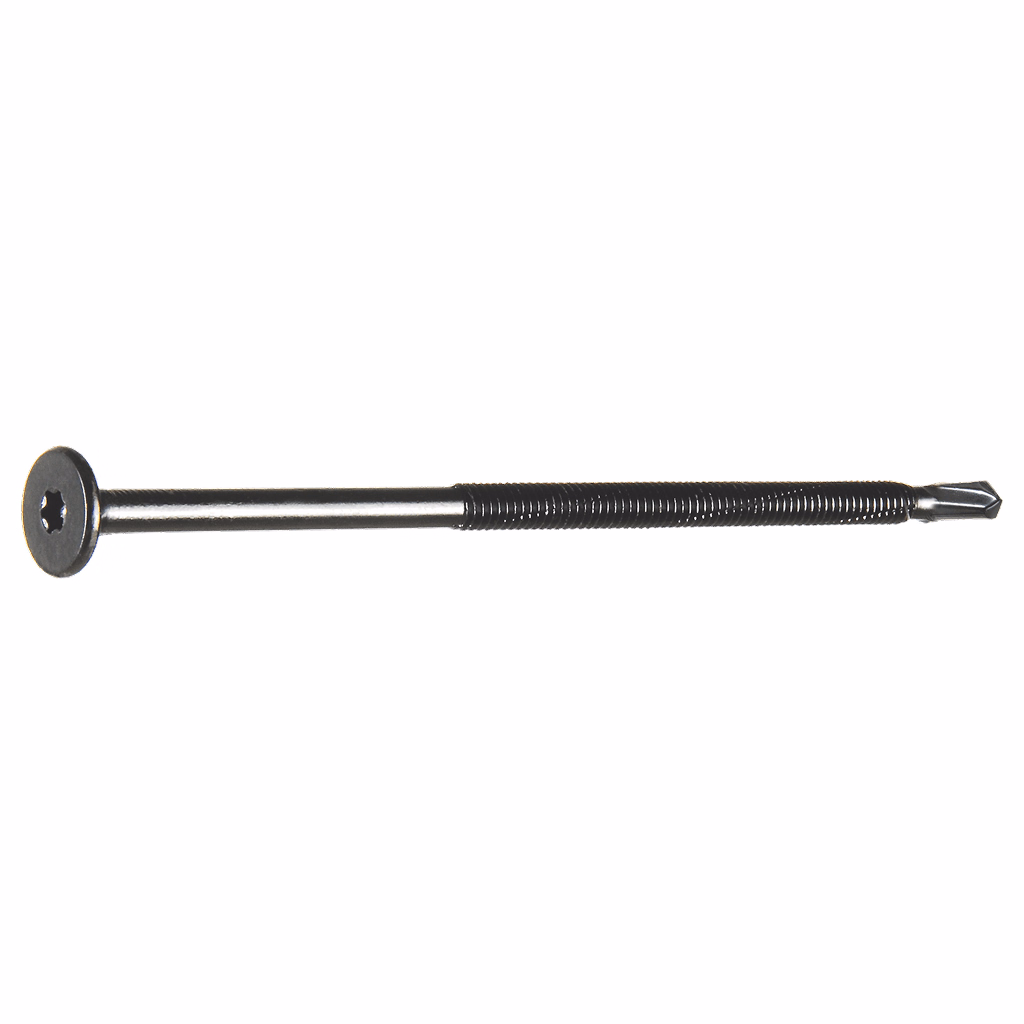

SIPHD Heavy-duty #4 Drill Point Fasteners
| Length | Part No. | Pkg Qty / Type | Pkg Wt | Skid Qty |
|---|---|---|---|---|
|
4-1/2"
|
SIPHD-4500*
|
500 / Bucket
|
22.5 lbs.
|
80
|
|
6"
|
SIPHD-6000
|
500 / Bucket
|
34.8 lbs.
|
60
|
|
8"
|
SIPHD-8000
|
250 / Bucket
|
23.1 lbs.
|
60
|
|
9-3/4"
|
SIPHD-9750
|
250 / Bucket
|
27.0 lbs.
|
60
|
|
11-3/4"
|
SIPHD-11750
|
250 / Bucket
|
31.2 lbs.
|
60
|
|
13-3/4"
|
SIPHD-13750
|
250 / Carton
|
36.7 lbs.
|
30
|
| NOTE: Two (2) T-30 Driver Bits included in each package. | ||||
| SIPHD Fasteners are designed for attaching panels to 16 ga. - 3/16" steel members without pre-drilling. | ||||
| *SIPHD-4500 is #12 diameter. | ||||
HCR Coated SIP Fasteners
SIPTP Thread Point Fasteners with HCR Coating
| Length | Part No. | Pkg Qty / Type | Pkg Wt | Skid Qty |
|---|---|---|---|---|
|
2"
|
SIPTP-2000-HCR
|
500 / Bucket
|
12.4 lbs.
|
80
|
|
2-1/2"
|
SIPTP-2500-HCR
|
500 / Bucket
|
14.4 lbs.
|
80
|
|
3"
|
SIPTP-3000-HCR
|
500 / Bucket
|
16.4 lbs.
|
80
|
|
3-1/2"
|
SIPTP-3500-HCR
|
500 / Bucket
|
18.4 lbs.
|
80
|
|
4"
|
SIPTP-4000-HCR
|
500 / Bucket
|
20.7 lbs.
|
80
|
|
4-1/2"
|
SIPTP-4500-HCR
|
500 / Bucket
|
22.7 lbs.
|
80
|
|
5"
|
SIPTP-5000-HCR
|
500 / Bucket
|
25.0 lbs.
|
60
|
|
5-1/2"
|
SIPTP-5500-HCR
|
500 / Bucket
|
27.0 lbs.
|
60
|
|
6"
|
SIPTP-6000-HCR
|
500 / Bucket
|
29.0 lbs.
|
60
|
|
6-1/2"
|
SIPTP-6500-HCR
|
500 / Bucket
|
29.8 lbs.
|
60
|
|
7"
|
SIPTP-7000-HCR
|
500 / Bucket
|
31.9 lbs.
|
60
|
|
8"
|
SIPTP-8000-HCR
|
500 / Bucket
|
36.4 lbs.
|
60
|
|
9"
|
SIPTP-9000-HCR
|
250 / Bucket
|
20.2 lbs.
|
60
|
|
10"
|
SIPTP-10000-HCR
|
250 / Bucket
|
22.5 lbs.
|
60
|
| NOTE: Two (2) T-30 6-Lobe Driver Bits, BIT-T30-2000, included in each package. | ||||
| SIPTP Fasteners are designed for attaching panels to wood. | ||||
SIPLD Light-duty #2 Drill Point Fasteners with HCR Coating
| Length | Part No. | Pkg Qty / Type | Pkg Wt | Skid Qty |
|---|---|---|---|---|
|
2"
|
SIPLD-2000-HCR
|
500 / Bucket
|
10.9 lbs.
|
80
|
|
2-1/2"
|
SIPLD-2500-HCR
|
500 / Bucket
|
13.2 lbs.
|
80
|
|
3"
|
SIPLD-3000-HCR
|
500 / Bucket
|
15.2 lbs.
|
80
|
|
3-1/2"
|
SIPLD-3500-HCR
|
500 / Bucket
|
17.4 lbs.
|
80
|
|
4"
|
SIPLD-4000-HCR
|
500 / Bucket
|
19.7 lbs.
|
60
|
|
4-1/2"
|
SIPLD-4500-HCR
|
500 / Bucket
|
21.9 lbs.
|
60
|
|
5"
|
SIPLD-5000-HCR
|
500 / Bucket
|
24.1 lbs.
|
60
|
|
5-1/2"
|
SIPLD-5500-HCR
|
500 / Bucket
|
26.0 lbs.
|
60
|
|
6"
|
SIPLD-6000-HCR
|
500 / Bucket
|
27.9 lbs.
|
60
|
|
6-1/2"
|
SIPLD-6500-HCR
|
500 / Bucket
|
29.8 lbs.
|
60
|
|
7"
|
SIPLD-7000-HCR
|
500 / Bucket
|
31.9 lbs.
|
60
|
|
8"
|
SIPLD-8000-HCR
|
500 / Bucket
|
35.5 lbs.
|
60
|
|
9"
|
SIPLD-9000-HCR
|
250 / Bucket
|
20.2 lbs.
|
60
|
|
10"
|
SIPLD-10000-HCR
|
250 / Bucket
|
22.3 lbs.
|
60
|
| NOTE: Two (2) T-30 Driver Bits included in each package. | ||||
| SIPLD Fasteners are designed for attaching panels to wood and 22 - 18 ga. corrugated steel decks. | ||||
Partial Thread SIP Fasteners

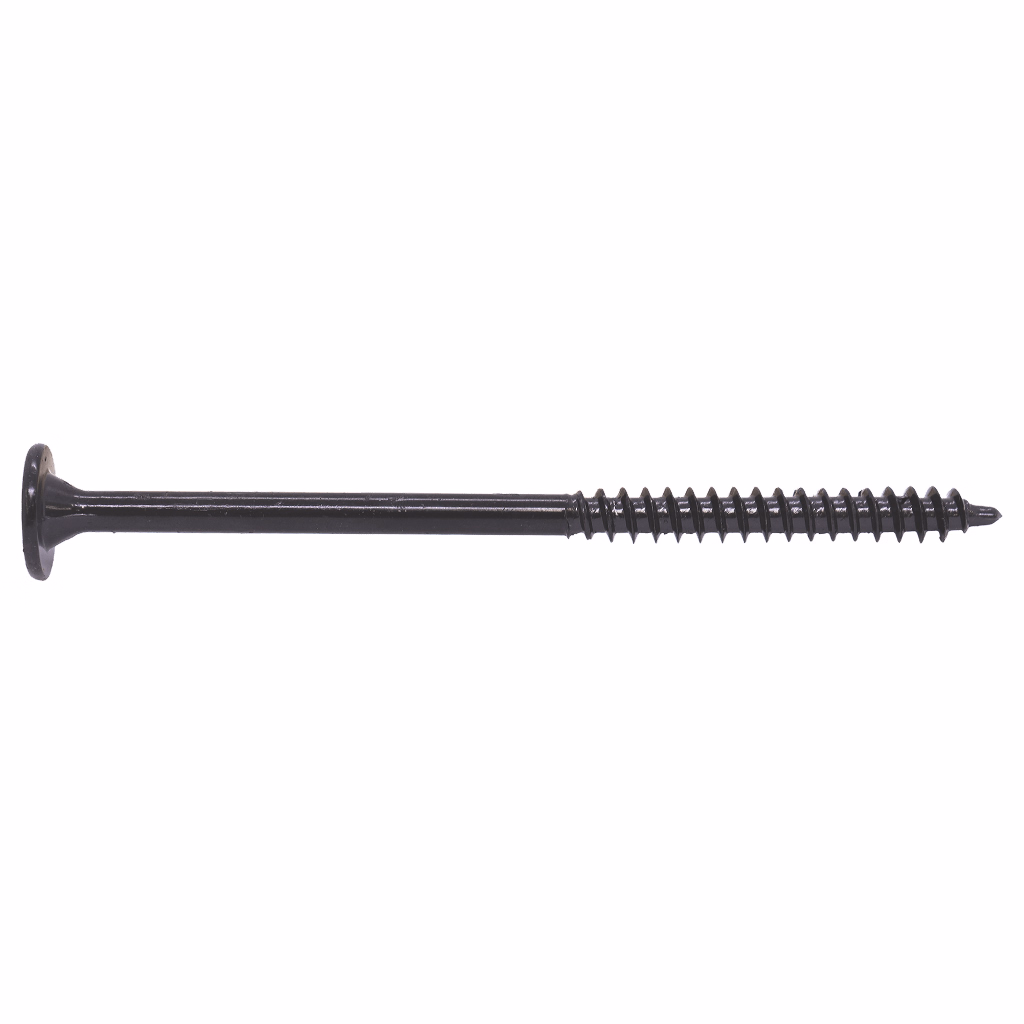

SIPLD Light-duty #2 Drill Point Fasteners with Partial Threads
| Length | Part No. | Thread Length | Pkg Qty / Type | Pkg Wt | Skid Qty |
|---|---|---|---|---|---|
|
2-1/4"
|
SIPLD-2250
|
1"
|
500 / Bucket
|
12.6 lbs.
|
80
|
|
3-1/4"
|
SIPLD-3250
|
1-1/2"
|
500 / Bucket
|
16.6 lbs.
|
80
|
|
4-1/4"
|
SIPLD-4250
|
2"
|
500 / Bucket
|
20.6 lbs.
|
80
|
| NOTE: Two (2) T-30 Driver Bits included in each package. | |||||
| SIPLD Fasteners are designed for attaching panels to wood and 22 - 18 ga. corrugated steel decks. | |||||

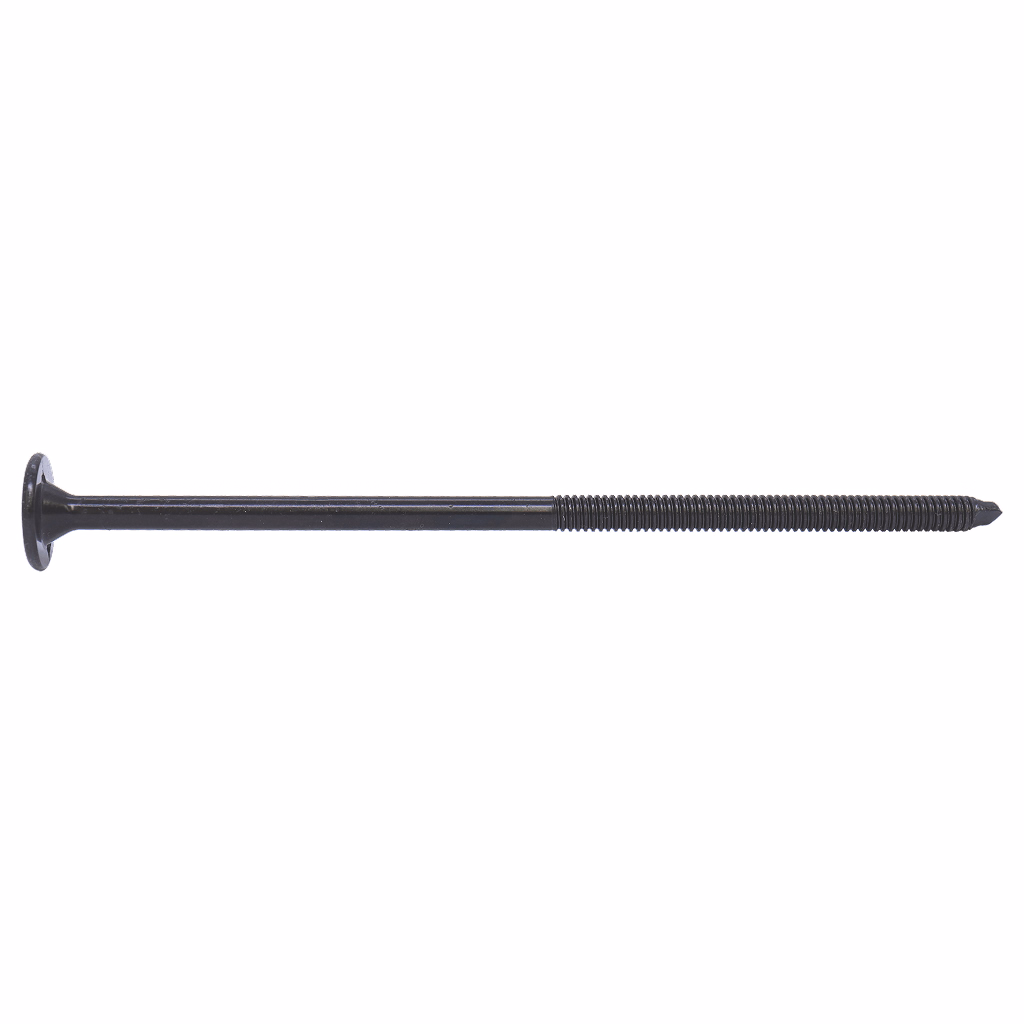

SIPHD Heavy-duty #4 Drill Point Fasteners with Partial Threads
| Length | Part No. | Thread Length | Pkg Qty / Type | Pkg Wt | Skid Qty |
|---|---|---|---|---|---|
|
2-1/4"
|
SIPHD-2250
|
1"
|
500 / Bucket
|
12.7 lbs.
|
80
|
|
3-1/4"
|
SIPHD-3250
|
1-1/2"
|
500 / Bucket
|
16.7 lbs.
|
80
|
|
4-1/4"
|
SIPHD-4250
|
2"
|
500 / Bucket
|
20.7 lbs.
|
80
|
|
5-1/4"
|
SIPHD-5250
|
2-1/2"
|
500 / Bucket
|
25.0 lbs.
|
80
|
| NOTE: Two (2) T-30 Driver Bits included in each package. | |||||
| SIPHD Fasteners are designed for attaching panels to 16 ga. - 3/16ʺ steel members without pre-drilling. | |||||
