- Roof Applications

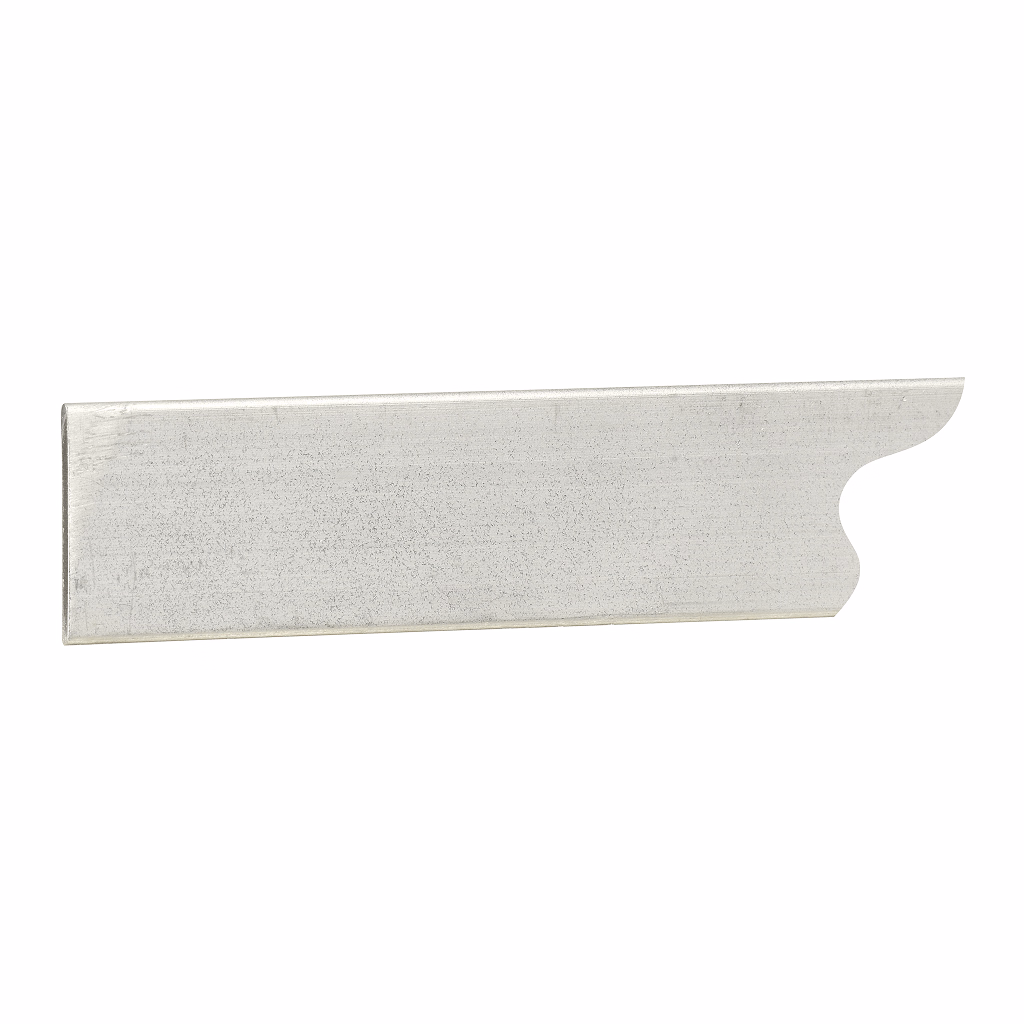

TB-90F Termination Bar
TRUFAST .090" thick Termination Bar is flat and is 1" wide and 10' long.
- Used to mechanically secure the top edge of roofing membrane or flashing to a substrate, like a parapet wall or penetration
- Predrilled holes every 6" (152.4 mm)
- Non-corrosive, won't rust
|
Material
|
6063-T6 Extruded Aluminum
|
| Part No. | Dimensions | Holes | Packaged | Approx. Shipping Weight |
|---|---|---|---|---|
|
TB-90F-6
|
.090 thick x 1" wide x 10' long per piece
|
1/4" x 3/8" slotted holes on 6" centers
|
50 pieces per tube
|
55 pounds per tube
|
