Thermal-Grip® MVA

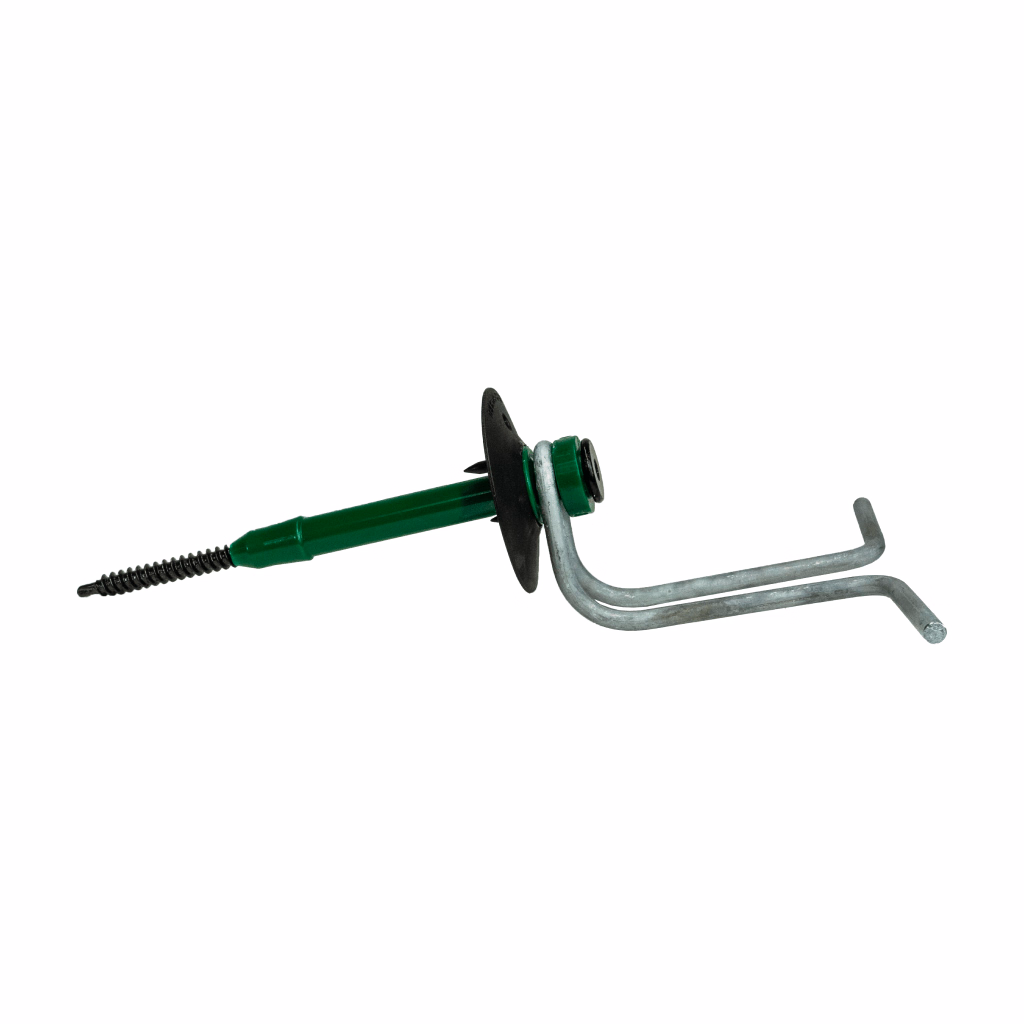

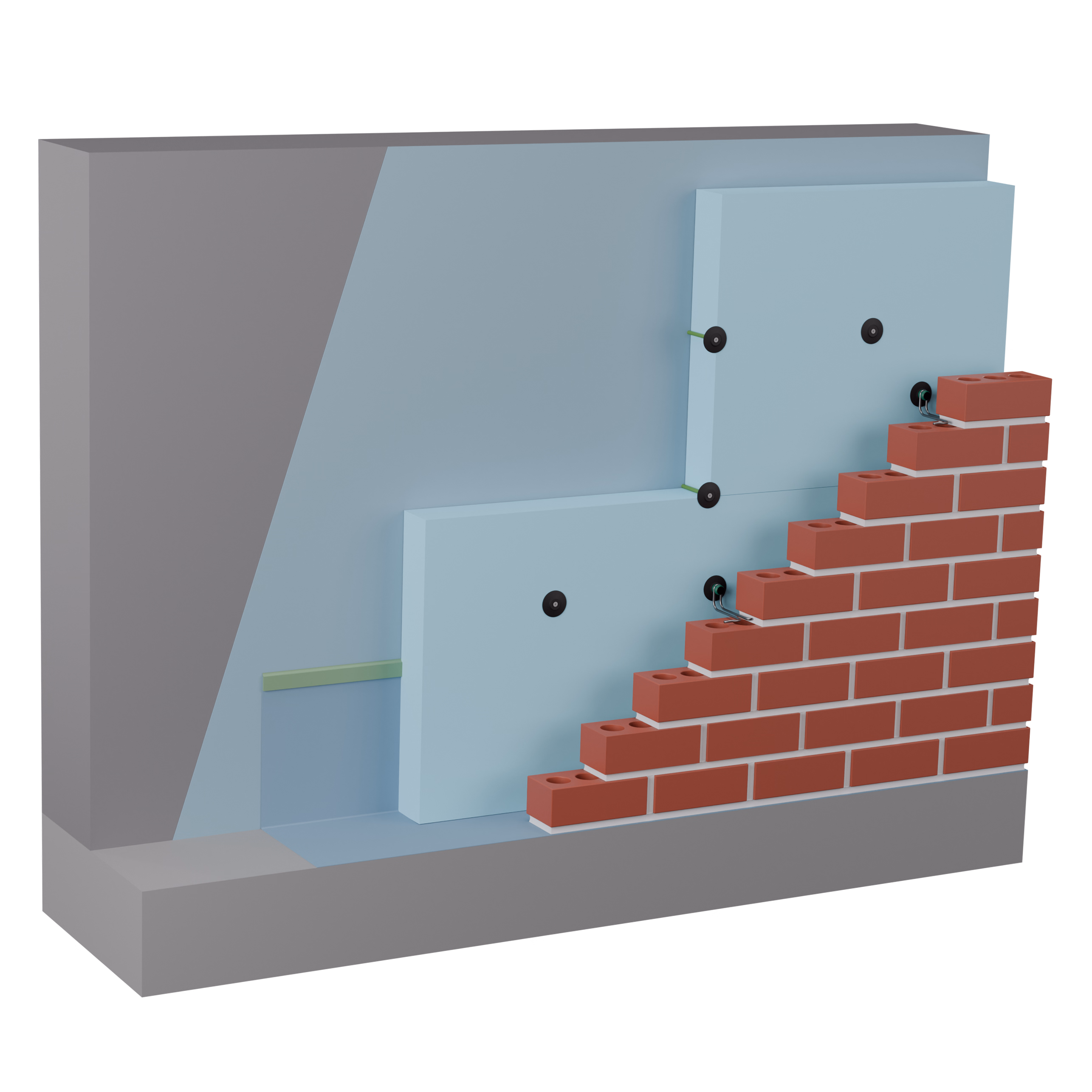

The Thermal-Grip® Masonry Veneer Anchor helps solve the challenge of thermal-bridging, air and water hold-out, and labor savings at an affordable price. Anchors brick veneer back to substrate through a layer of continuous insulation while maintaining air barrier integrity and thermal efficiency.
- Uniquely designed for minimal thermal-bridging
- Maintains air-barrier performance

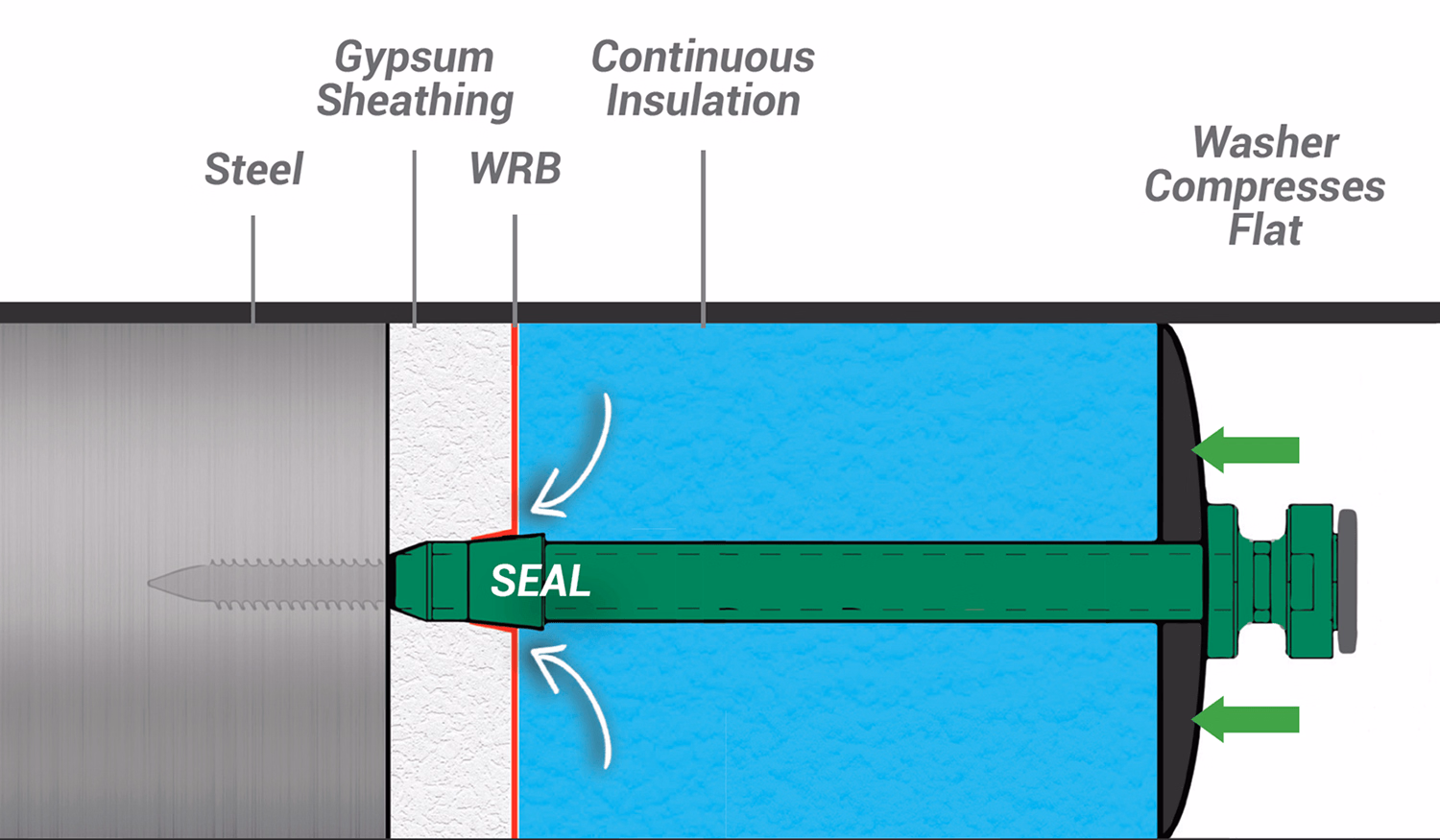

- Design allows anchor to cut cleanly through WRB and seal it behind insulation
- Redundant fire-safety helps retain wire in event of a fire in the wall cavity
- Suitable for all substrates
- Wire tie design allows for easy assembly
- Patented and/or patent pending
|
Code Approvals & Listings
|
ASTM E331*, ASTM E2357, TMS 402
|
|
Material
|
Washer - Polypropylene
Barrel - Polycarbonate
Screw - Carbon steel
Wire - Carbon steel
|
|
Coating
|
Washer - Plastic
Barrel - Plastic
Screw - exterior grade coating
Wire - galvanized coating OR stainless steel
|
| *Multiple assemblies of various insulations attached over various air/water barriers have been tested as per E331 up to 25 psf with no leakage. Please inquire for additional details. | |
| Part No. | Description | Pkg Qty | Pkg Wt |
|---|---|---|---|
|
MVA-LD-1000
|
1" assembly
|
250 pcs.
|
15 lbs.
|
|
MVA-LD-1500
|
1-1/2" assembly
|
250 pcs.
|
15 lbs.
|
|
MVA-LD-2000
|
2" assembly
|
250 pcs.
|
17 lbs.
|
|
MVA-LD-2500
|
2-1/2" assembly
|
250 pcs.
|
18 lbs.
|
|
MVA-LD-3000
|
3" assembly
|
250 pcs.
|
20 lbs.
|
|
MVA-LD-3500
|
3-1/2" assembly
|
250 pcs.
|
22 lbs.
|
|
MVA-LD-4000
|
4" assembly
|
250 pcs.
|
22 lbs.
|
|
MVAW-3000-HDG
|
3" wire tie hot-dip
|
250 pcs.
|
22 lbs.
|
|
MVAW-3000-SS
|
3" wire tie stainless steel
|
250 pcs.
|
22 lbs.
|
|
MVAW-4000-HDG
|
4" wire tie hot-dip
|
250 pcs.
|
25 lbs.
|
|
MVAW-4000-SS
|
4" wire tie stainless steel
|
250 pcs.
|
25 lbs.
|
