Grip-Plate TubeSeal™ for Lath Attachment

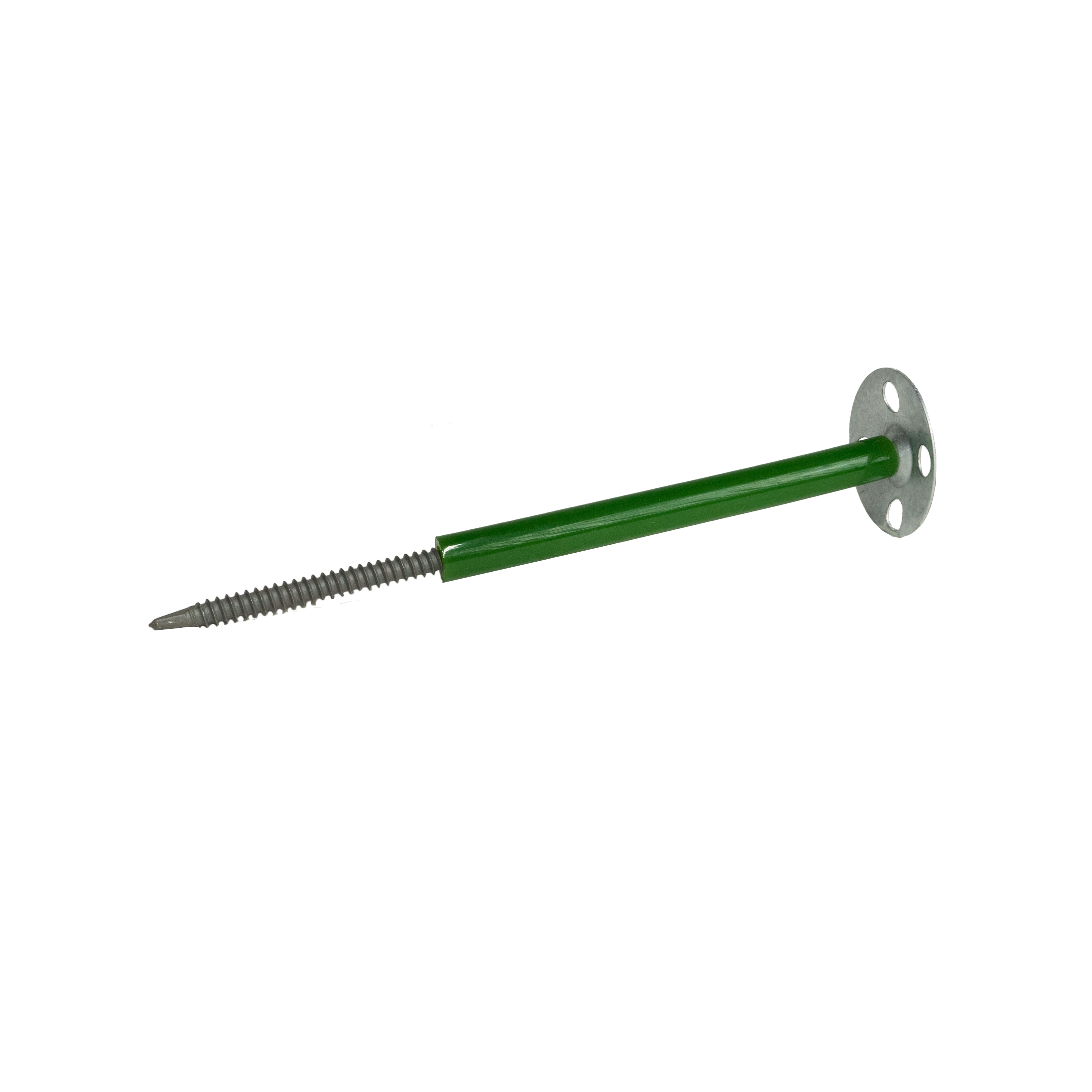

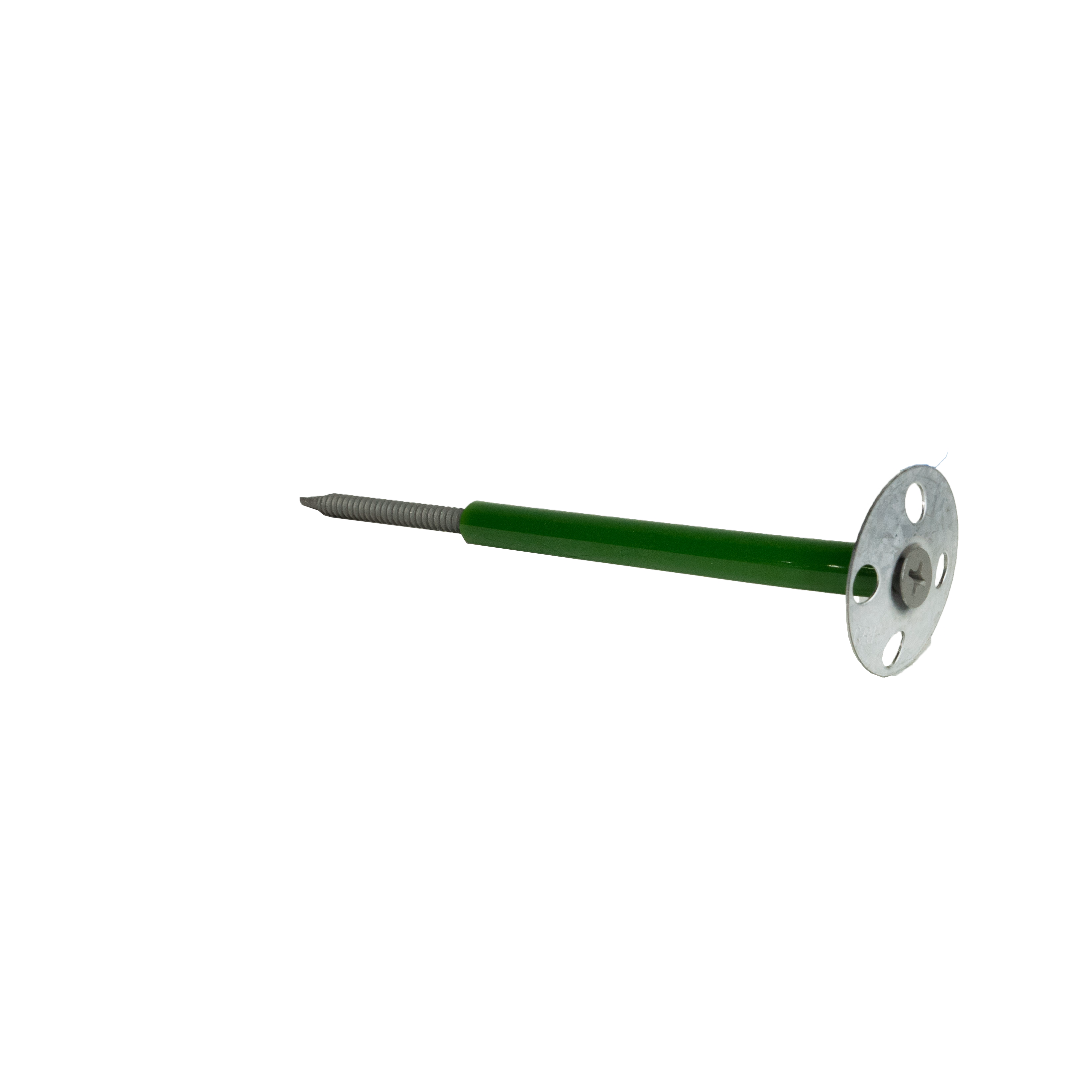

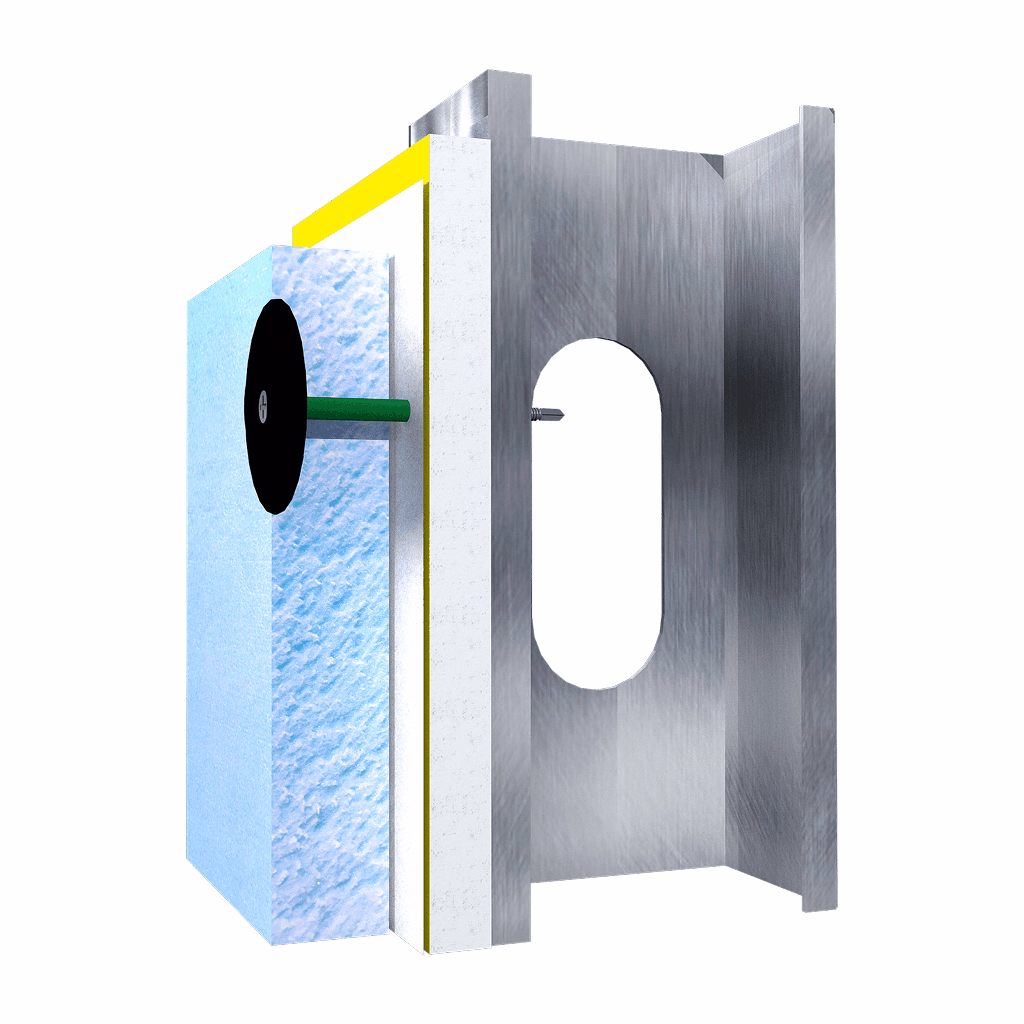

The Grip-Plate TubeSeal™ fastener from TRUFAST® is designed to help seal blind fastener penetrations of your WRB and air-barrier when mechanically attaching lath over continuous insulation. Lath must be mechanically attached, and often over continuous insulation and a WRB or air-barrier. With the Grip-Plate TubeSeal, installation enables sealing on the facer of the WRB or air-barrier sandwiched between the substrate and the layer of continuous insulation.
- Grip-Plate TubeSeal products are designed to seal blind fastener penetrations of a WRB or air-barrier.
- The Grip-Plate TubeSeal product is available in multiple lengths for insulation nominal thickness of 1", 1.5", 2", 2.5", 3", 3.5", and 4".
- UV resistant ether-based polyurethane tube is suitable for all weather climates.
- Patented and/or patent pending.
|
Code Approvals & Listings
|
ASTM E331*, ASTM E1186, ASTM E2357, ASTM C-1063
|
|
Material
|
Washer - Galvanized Steel TubeSeal - Polyurethane Screw - Carbon steel with proprietary exterior grade coating
|
|
Coating
|
Exterior Grade Coating
|
| *Multiple assemblies of various insulations attached over various air/water barriers have been tested as per E331 up to 25 psf with no leakage. Please inquire for additional details. | |
| Part No. | Fastenter Type | Part Length for Nom Thickness | Pkg Qty | Pkg Wt |
|---|---|---|---|---|
|
GDTSGP-HL-1000
|
HiLo
|
1" insulation
|
500 pcs.
|
12 lbs.
|
|
GDTSGP-HL-1500
|
HiLo
|
1.5" insulation
|
500 pcs.
|
13 lbs.
|
|
GDTSGP-HL-2000
|
HiLo
|
2" insulation
|
500 pcs.
|
15 lbs.
|
|
GDTSGP-HL-2500
|
HiLo
|
2.5" insulation
|
500 pcs.
|
12 lbs.
|
|
GDTSGP-HL-3000
|
HiLo
|
3" insulation
|
500 pcs.
|
12 lbs.
|
|
GDTSGP-HL-3500
|
HiLo
|
3.5" insulation
|
500 pcs.
|
12 lbs.
|
|
GDTSGP-HL-4000
|
HiLo
|
4" insulation
|
500 pcs.
|
12 lbs.
|
|
GDTSGP-SD-1000
|
SDS
|
1" insulation
|
500 pcs.
|
12 lbs.
|
|
GDTSGP-SD-1500
|
SDS
|
1.5" insulation
|
500 pcs.
|
13 lbs.
|
|
GDTSGP-SD-2000
|
SDS
|
2" insulation
|
500 pcs.
|
15 lbs.
|
|
GDTSGP-SD-2500
|
SDS
|
2.5" insulation
|
500 pcs.
|
12 lbs.
|
|
GDTSGP-SD-3000
|
SDS
|
3" insulation
|
500 pcs.
|
12 lbs.
|
|
GDTSGP-SD-3500
|
SDS
|
3.5" insulation
|
500 pcs.
|
12 lbs.
|
|
GDTSGP-SD-4000
|
SDS
|
4" insulation
|
500 pcs.
|
12 lbs.
|
