• Wall Applications

Grip-Plate® Lath & Plaster Washer

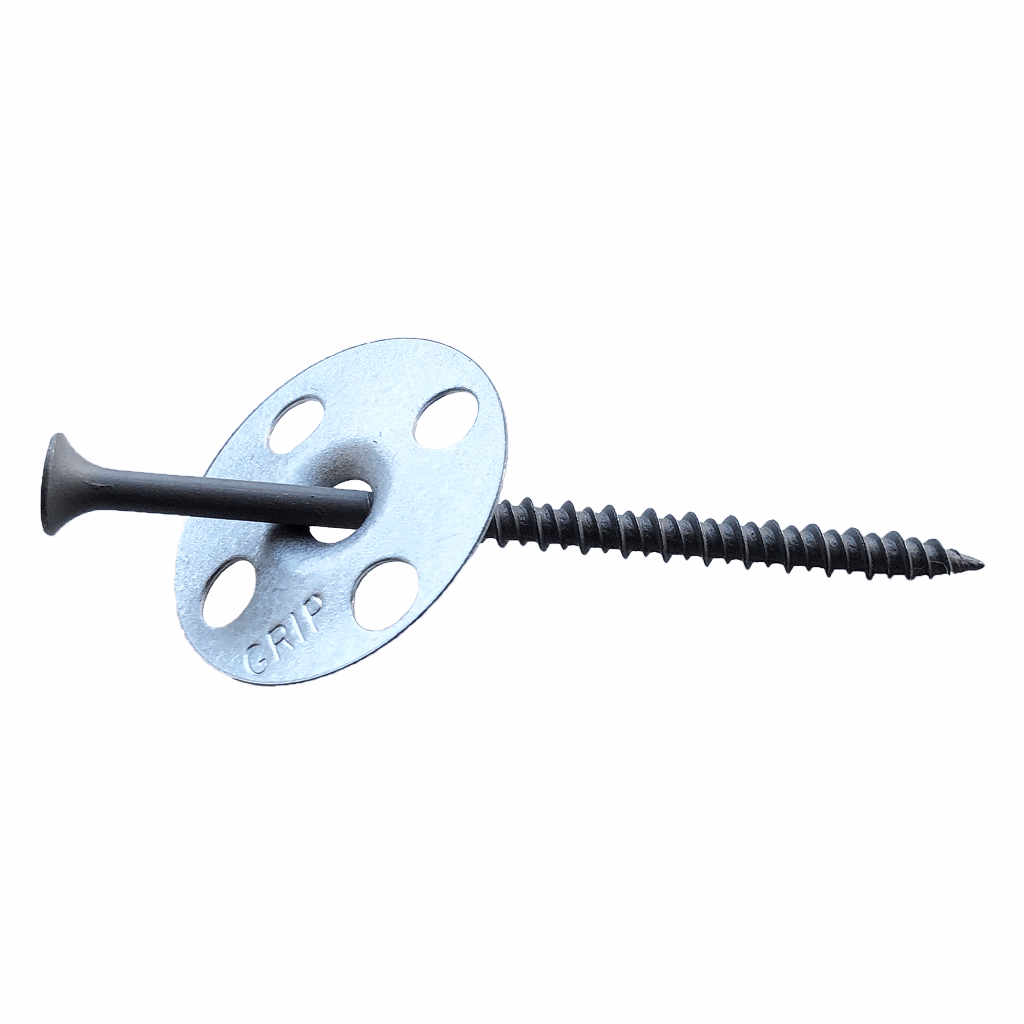

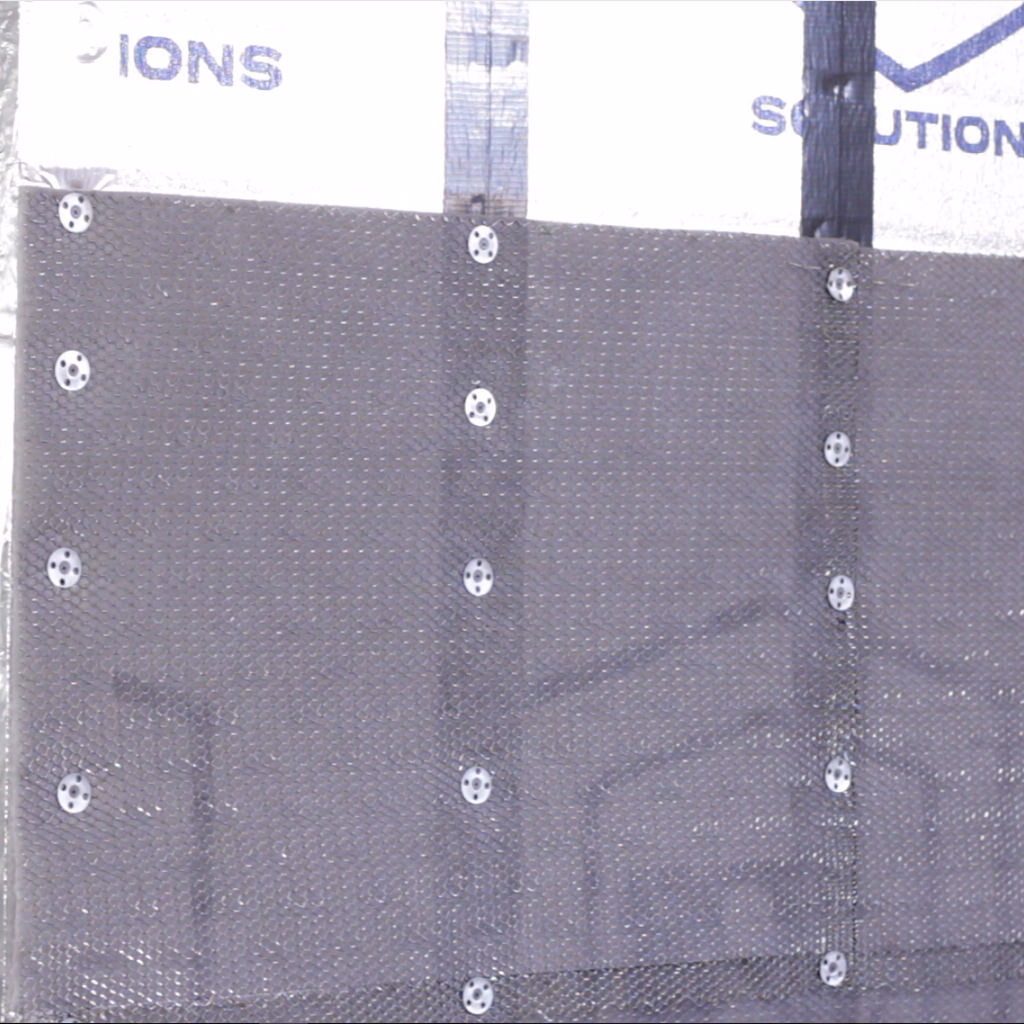

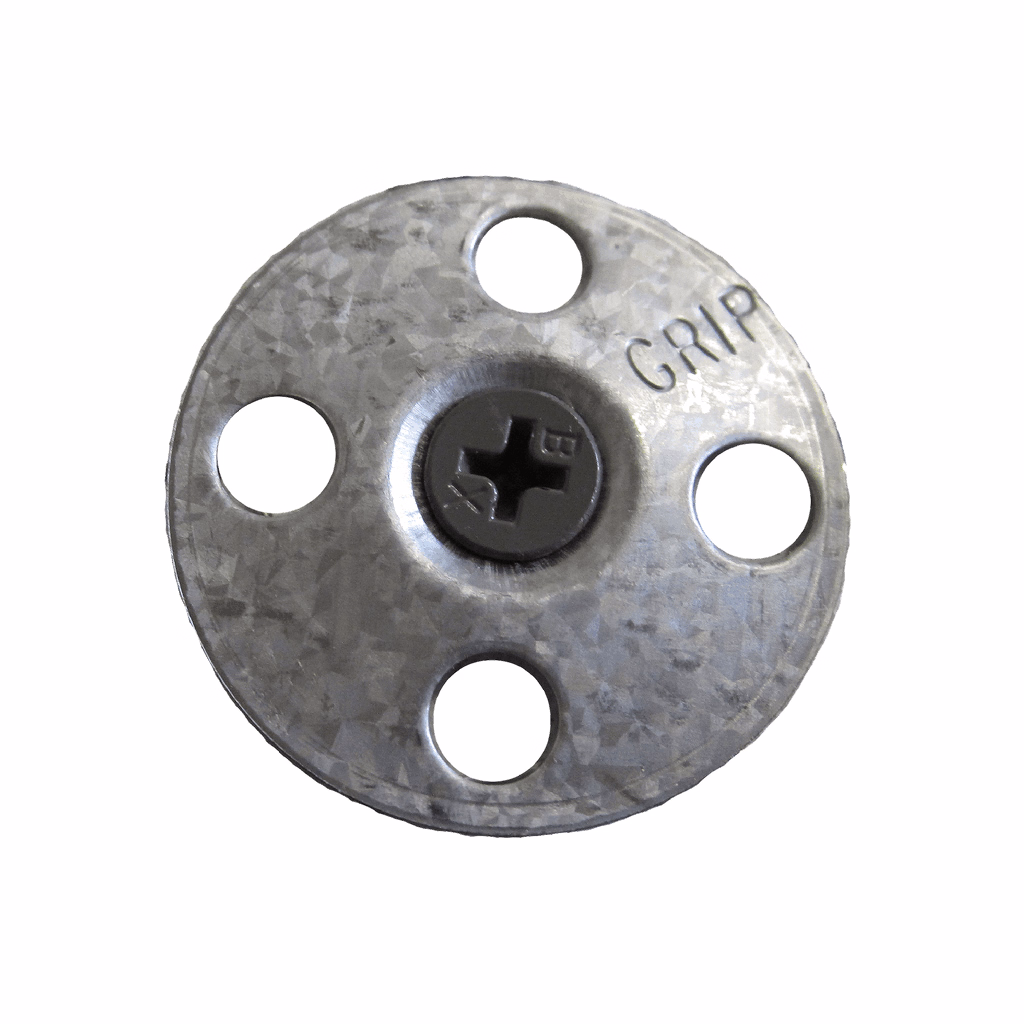

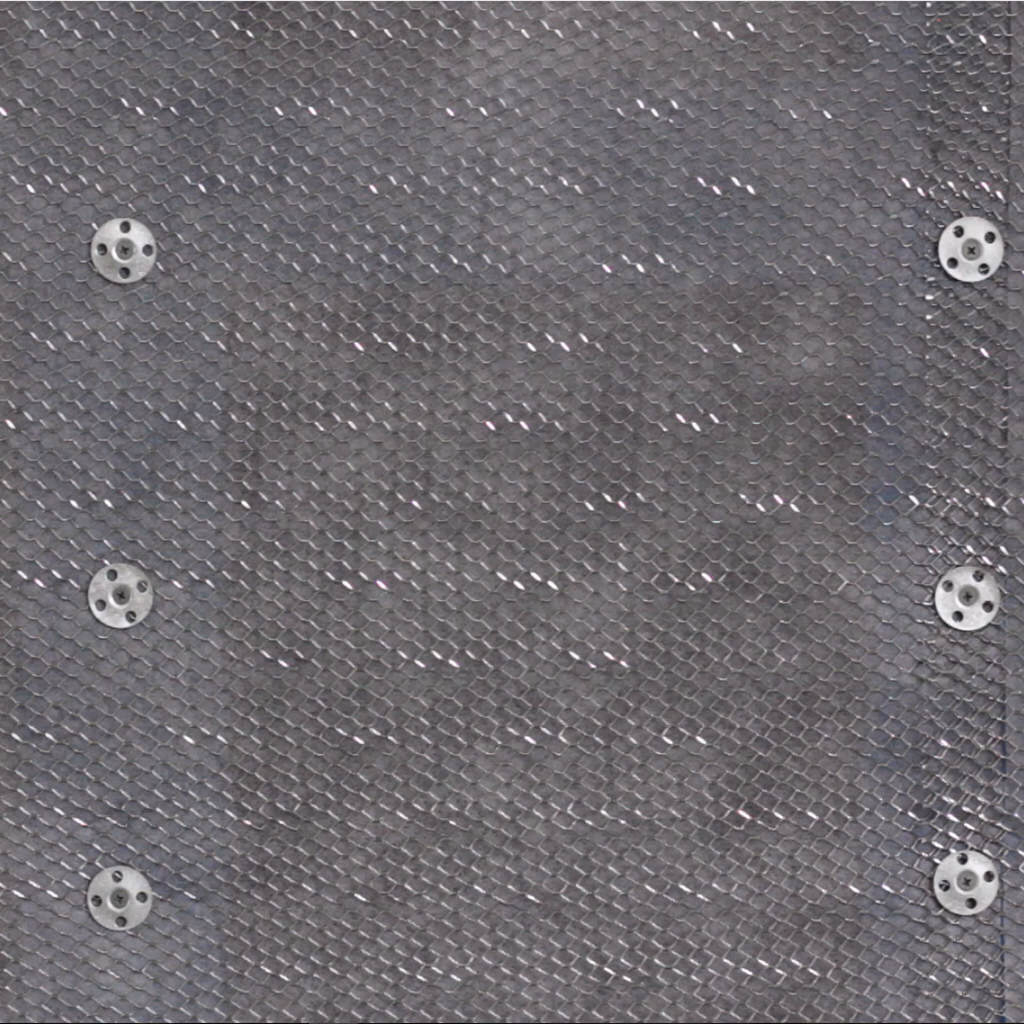

The TRUFAST® Grip-Plate® Washers are 1-1/4" galvanized steel washers used for attaching lath, exterior gypsum sheathing, plaster or stucco. The Tab Washer can also be used for foam and wire lath attachment in insulated stucco walls, one-coat stucco, and to attach foam-core tile backer board. Washers can be installed with shot-in pins or Grip-Deck® screws.

  • Attaches lath, exterior gypsum sheathing, and can also be used for plaster and stucco repair
  • 1-1/4" diameter galvanized steel washers

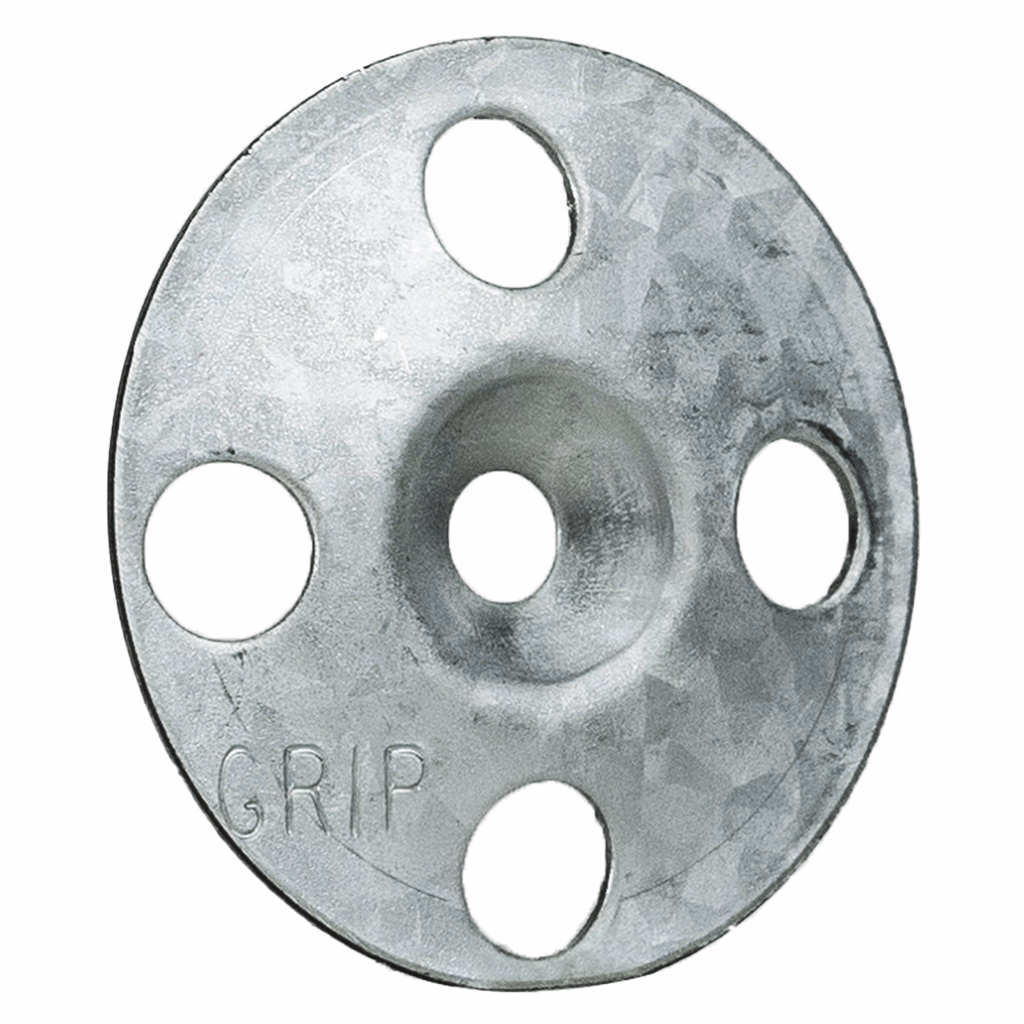

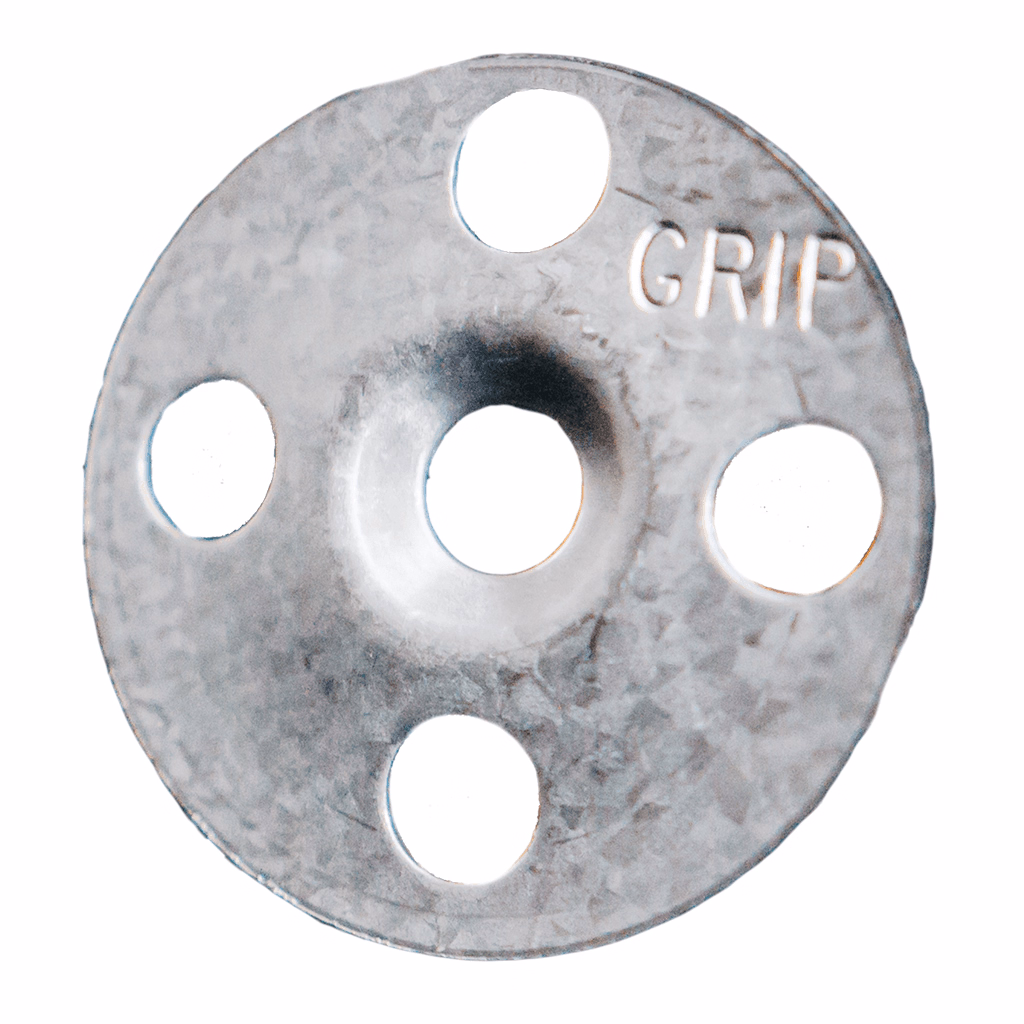

  • Large and small center hole versions available for use with screws, nails, and pins
  • Keyholes for bonding of basecoat/plaster

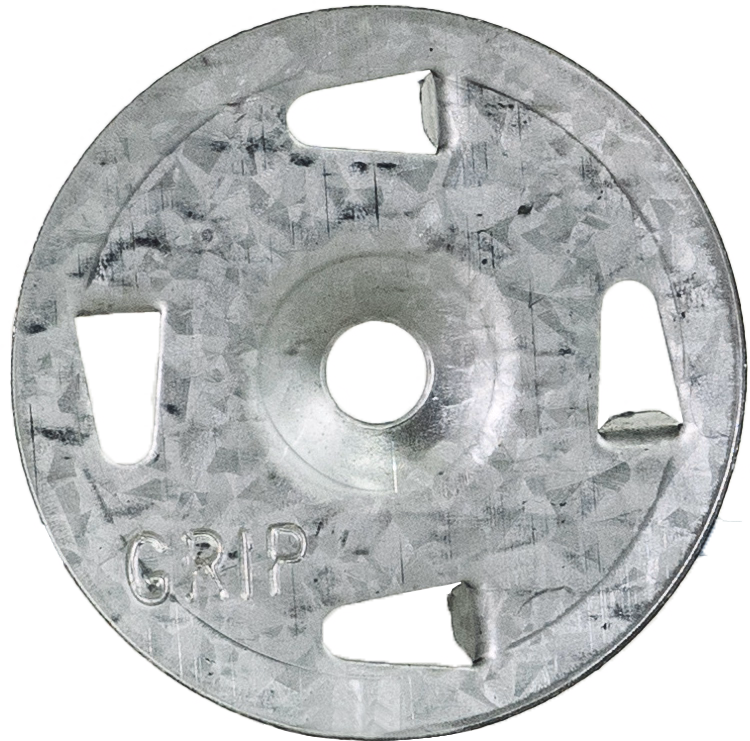

  • Tab washer has 4 tabs for pre-spotting and lath engagement
  • Made in USA
  • Use as tested or recommended to support heavy adhered masonry cladding over layers of continuous insulation
Code Approvals & Listings
ASTM C-1063
Material
Galvanized Steel
Part No. Description Pkg Qty Pkg Wt
GPPW-L-1250
Grip-Plate Washer with Large Hole
1000 pcs.
7 lbs.
GPPW-S-1250
Grip-Plate Washer with Small Hole
1000 pcs.
7 lbs.
GPTAB-1250
Grip-Plate Tab Washer
1000 pcs.
8 lbs.
