Thermal-Grip® Ci Prong Washer

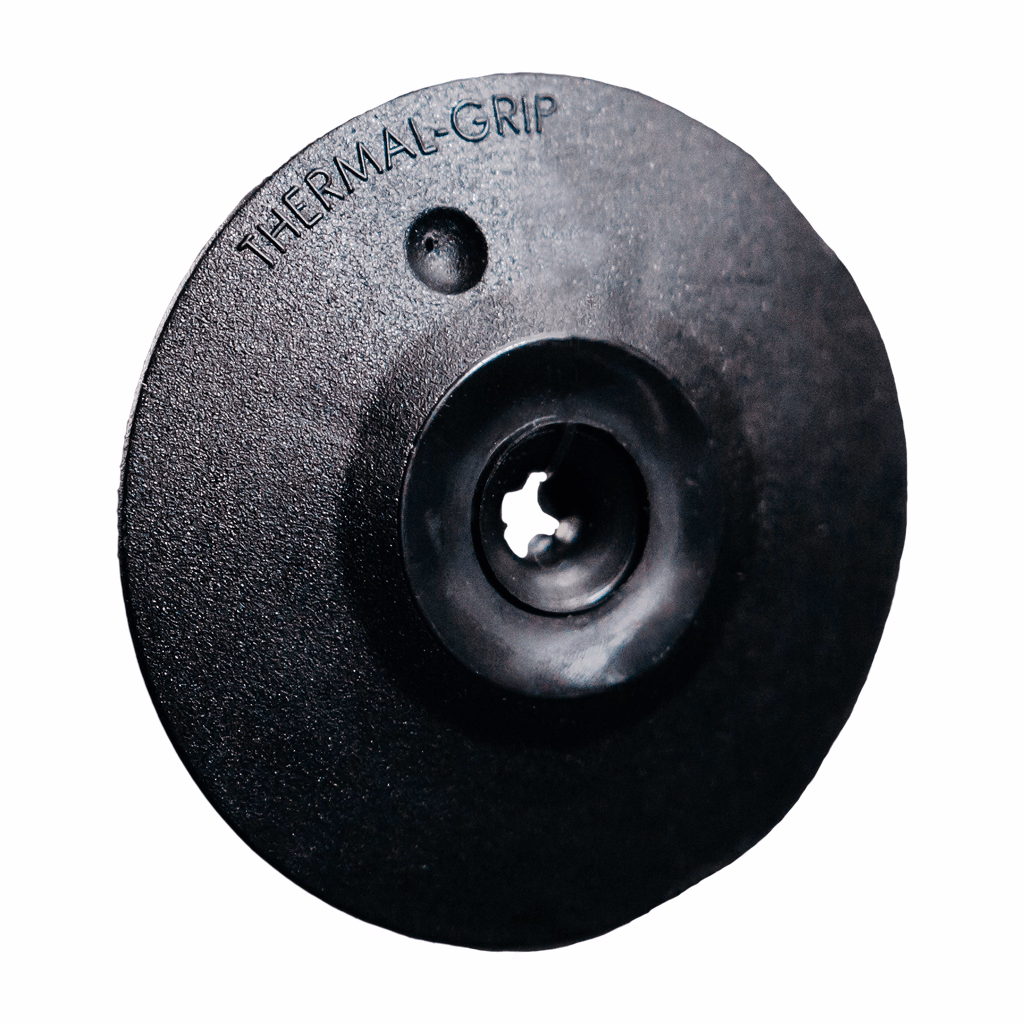

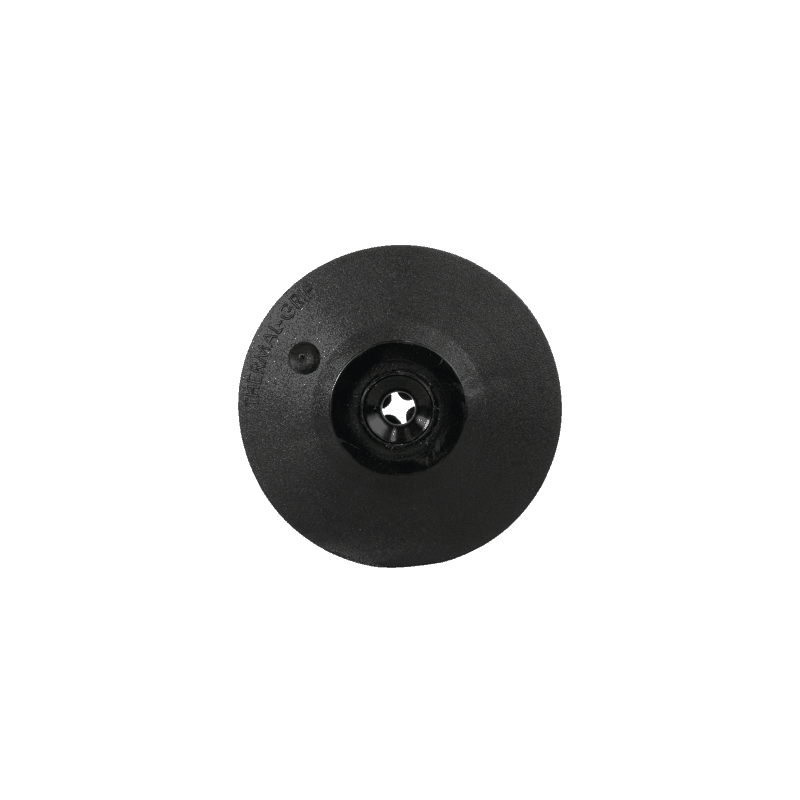

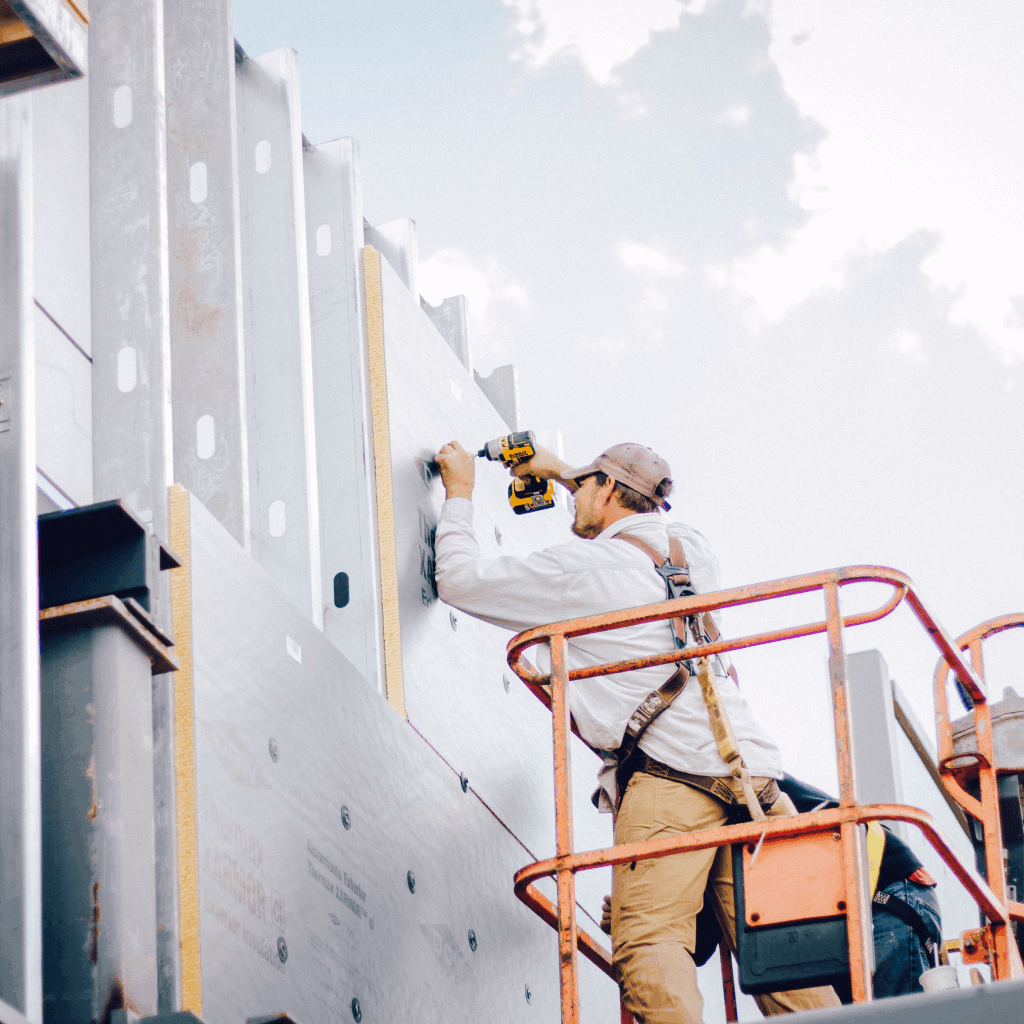

The Thermal-Grip® ci Prong Washer is a large 2" diameter solid cap washer that attaches rigid insulation. Dual prongs enable pre-spotting for fast, on-the-wall fastener assembly. Flexible perimeter flattens without tearing insulation facer. Use with Grip-Deck® Self-Drilling Screws or HiLo thread screws with ceramic coating for corrosion resistance. Use Grip-Lok® Autofeed Fastening System for rapid attachment.

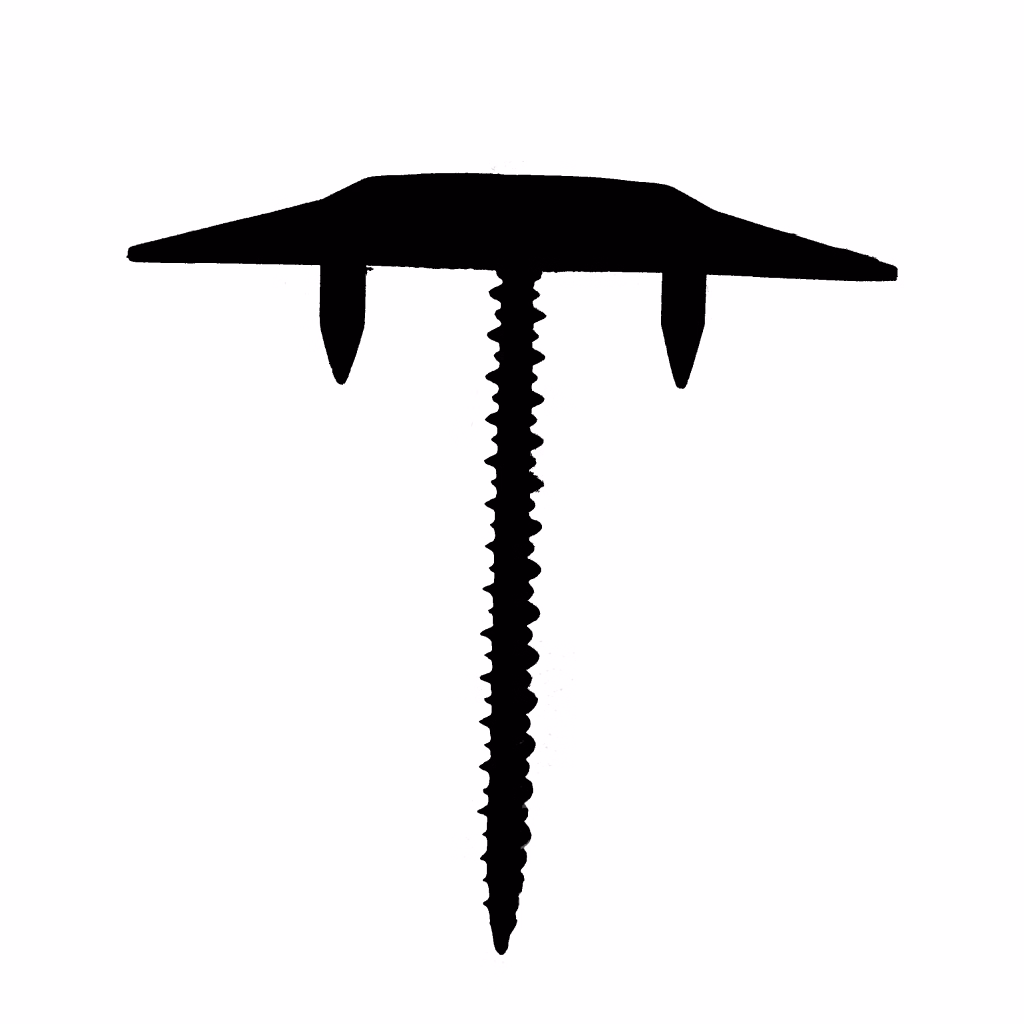

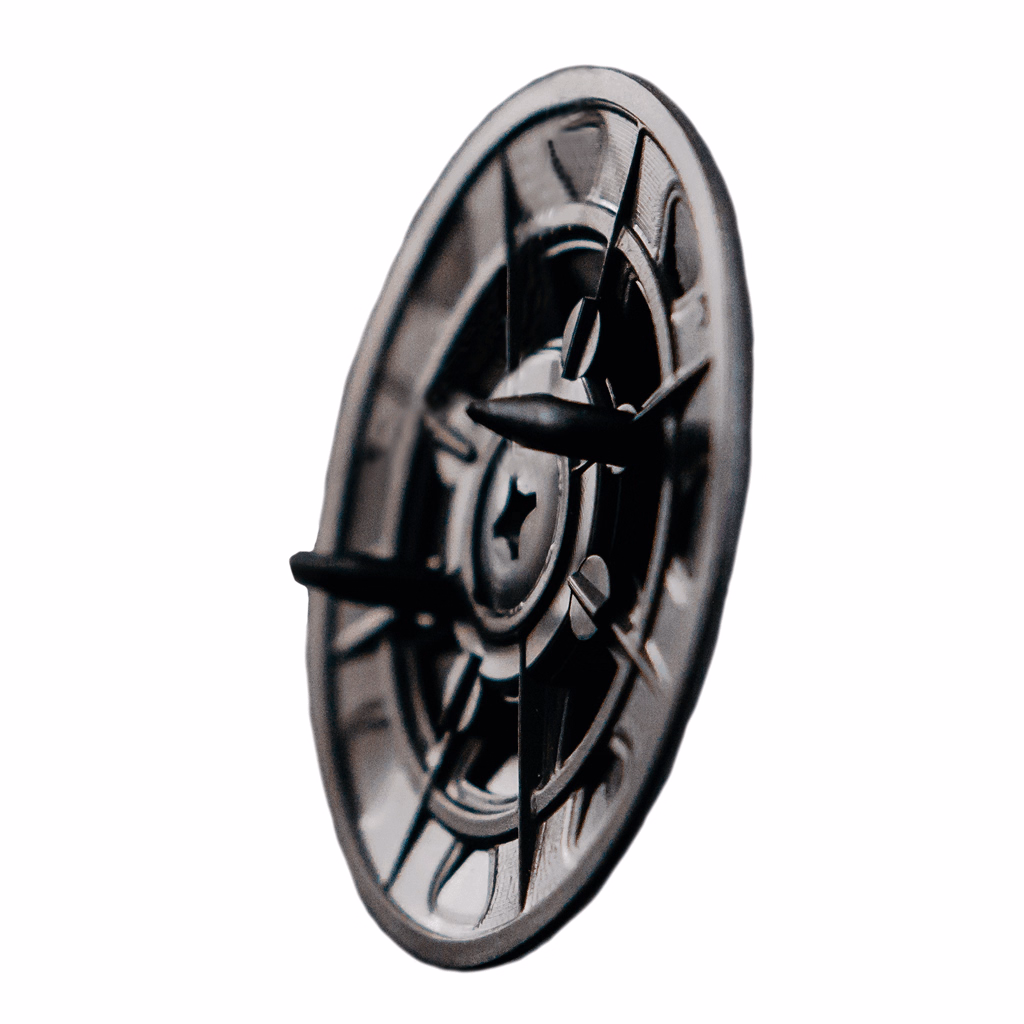

- Pre-spotting prongs = no hand assembly required!
- UV inhibitor for exposure during course of construction
- 2" dia. solid plastic cap design for air-barrier performance

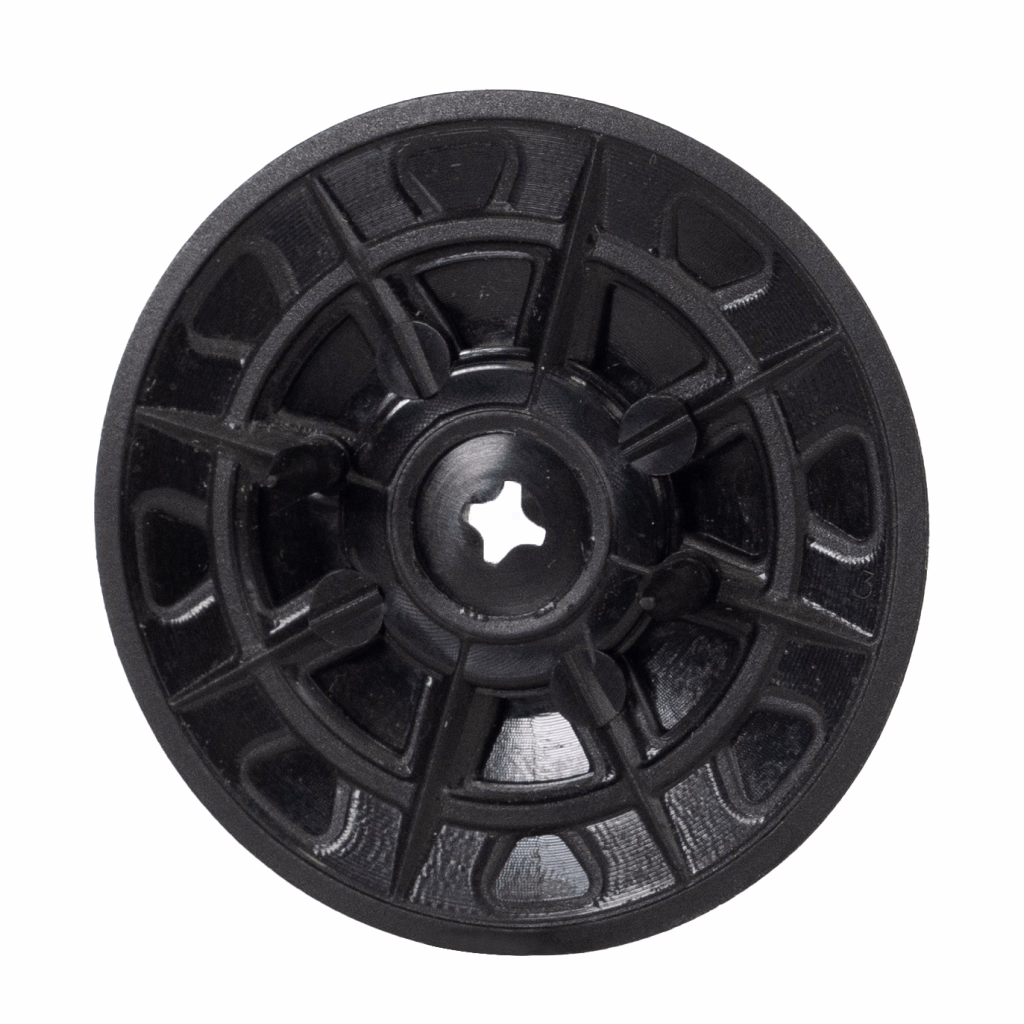

- Stiffened center ring prevents screw pull-through
- Flexible perimeter flattens without tearing insulation facer

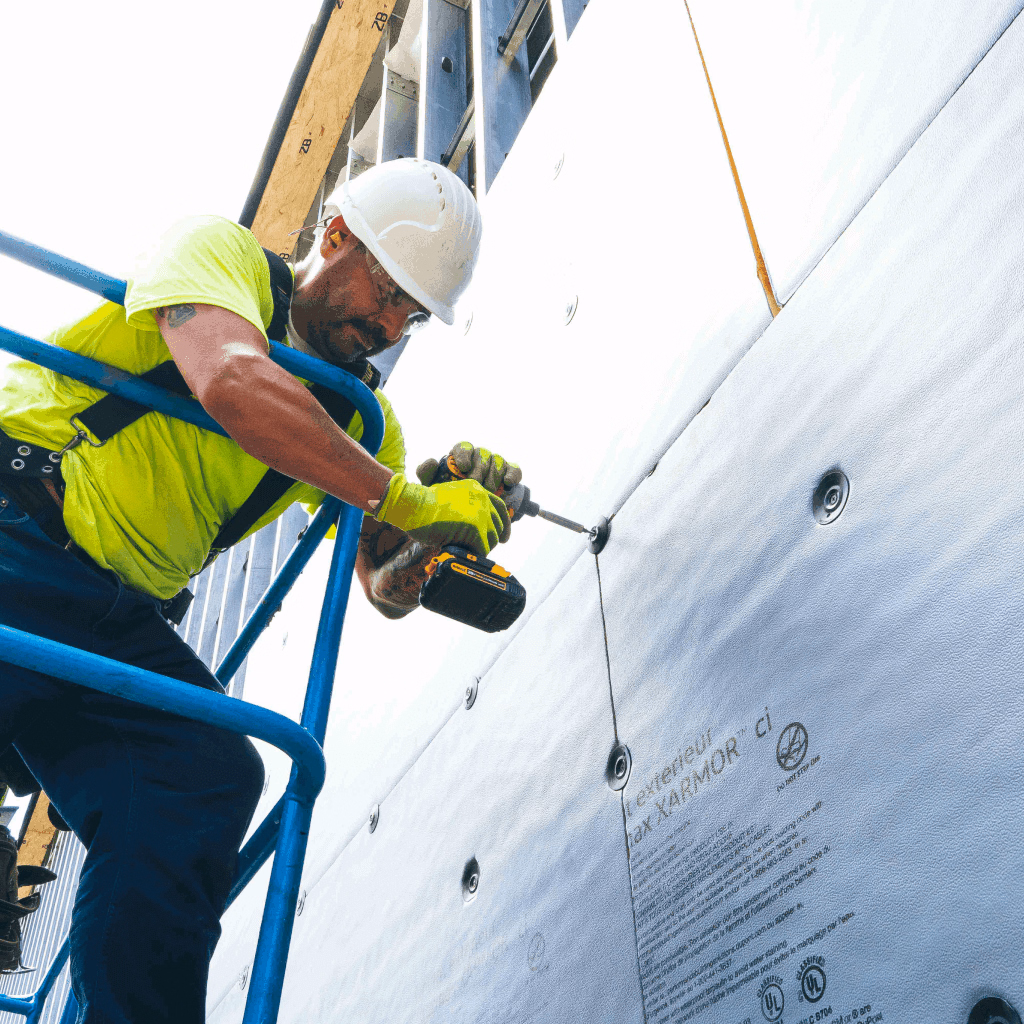

- Optional use with Grip-Lok® Autofeed Fastening System with Bullseye nose adaptor
- Use with Grip-Deck® ci ceramic coated screws

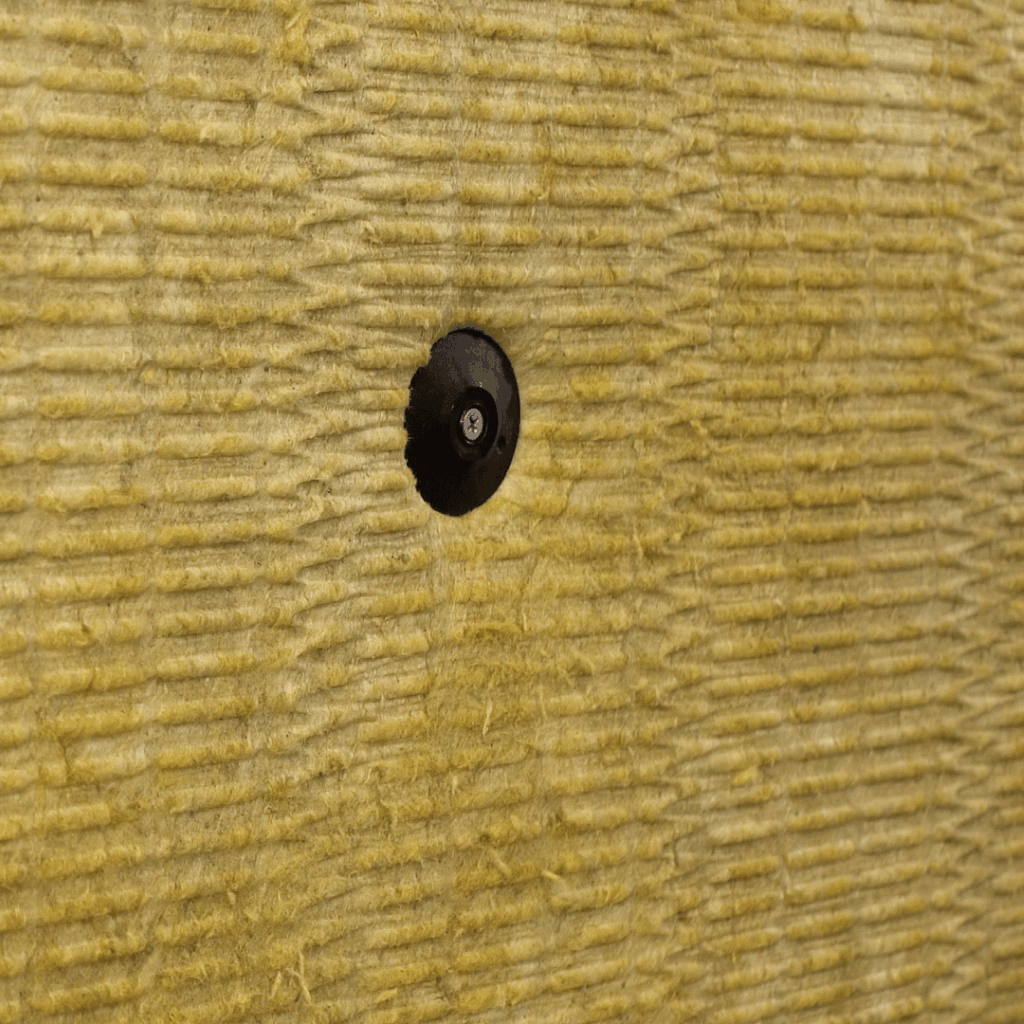

- Attaches ALL types of rigid insulation and mineral wool
- Specified, tested or approved by all leading insulation manufacturers
- Made in USA
- Patented and/or patent pending
|
Code Approvals and Listings
|
ASTM E331*, ASTM E2357
|
|
Material
|
Polypropolene
|
|
Coating
|
Plastic
|
| *Washer has been tested in various continuous insulation systems per E331 with no leakage. Please inquire for additional details. | |
| Part No. | Part Diameter | Pkg Qty. | Pkg Wt. |
|---|---|---|---|
|
TGP-2000
|
2ʺ (51mm)
|
1,000 pcs.
|
9 lbs.
|
