TRUFAST ROOF APPLICATIONS
Steel
A typical commercial roof on a steel deck often consists of several layers including vapor barriers, insulation boards, cover boards and membrane attachment, designed to provide durability, weatherproofing, and insulation. The steel deck forms the base of the roof system, providing support for the roof components. It’s typically made of steel and comes in various thicknesses and profiles. TRUFAST has a variety of fasteners options and lengths for attachment of a wide variety of materials to steel decks.
RECOMMENDED ATTACHMENT SOLUTIONS

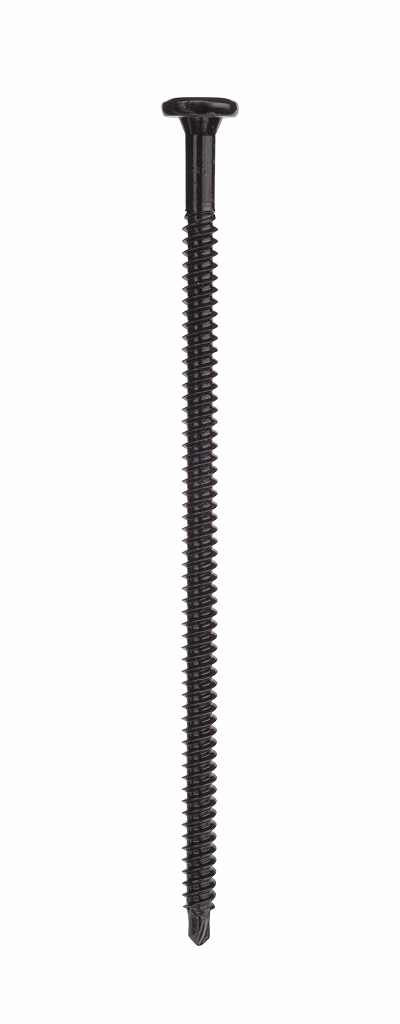

#12 DP Roofing Fasteners
- Specifically engineered to secure insulation, coverboards, and base sheets to corrugate steel (16-22 ga.) and wood substrates
- #2 double flute self-drilling point and exclusive tapered entry thread design for quick steel penetration and exceptional back-out resistance
- 8 lengths from 1-5/8” to 8”
- Pairs with 3” Metal Insulation Plates or 3” Recessed Metal Insulation Plates depending on the application
- #12 DP Roofing Fasteners product page
Pre-Assembled #12 DP Phillips Truss Head Fastener & 3” Galvalume Insulation Plate
- Fasteners come pre-assembled to increase productivity of attaching insulation to metal and wood roof decks
- Available with specially designed stand-up tools and accessories for fastener placement and attachment
- #3 Phillips Truss Head (PA) style
- 8 lengths from 1-5/8” to 8”
- Pre-Assembled #12 DP Phillips Truss Head Fastener & 3” Galvalume Insulation Plate product page
#14 HD Roofing Fasteners
- Engineered to secure insulation, coverboards, base sheets and single-ply roof membrane systems to corrugated steel (16-22 ga.), wood, and concrete substrates
- #2 double flute self-drilling point and exclusive tapered entry thread design for quick steel penetration and exceptional back-out resistance
- 17 lengths from 1-1/4” to 12”
- Pairs with 3” Metal Insulation Plates, 3” Recessed Metal Insulation Plates, or Induction Weld Plates depending on the application
- #14 HD Roofing Fasteners product page

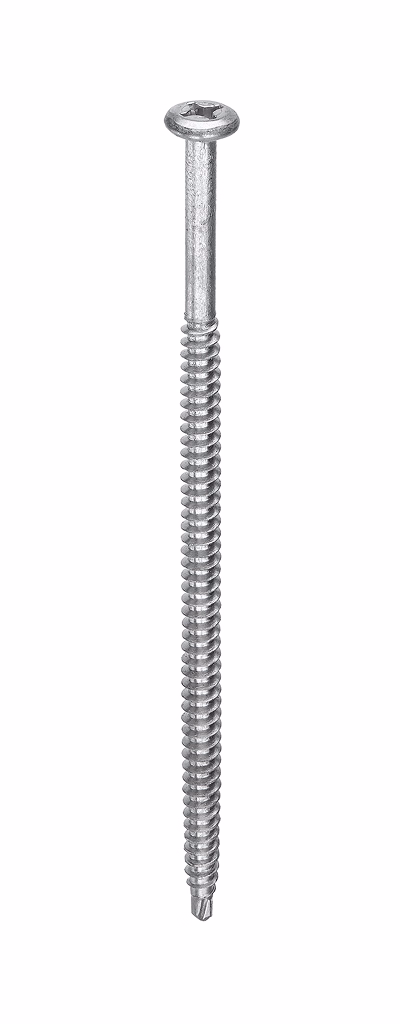

#14 HD Bi-Metal Stainless Steel Roofing Fasteners
- Made of 316 austenitic stainless steel alloy with hardened carbon steel drill point
- Engineered to secure insulation, coverboards, base sheets and single-ply roof membrane systems to corrugated steel (18-24 ga.) and wood substrates
- #2 double flute self-drilling point and exclusive tapered entry thread design for quick steel penetration and exceptional back-out resistance
- 10 lengths from 1-1/2” to 12”
- Pairs with 3” Metal Insulation Plates, 3” Recessed Metal Insulation Plates, or Induction Weld Plates depending on the application
- #14 HD Bi-Metal Stainless Steel Roofing Fasteners product page
#15 EHD Roofing Fasteners
- Engineered for lap attachment to corrugated steel (18-22 ga.) and wood substrates in higher wind uplift roof assemblies
- #2 double flute self-drilling point and exclusive tapered entry thread design for quick steel penetration and exceptional back-out resistance
- 17 lenghts from 2” to 24”
- Pairs with 3” Metal Insulation Plates, 3” Recessed Metal Insulation Plates, or Induction Weld Plates depending on the application
- #15 EHD Roofing Fasteners product page
