TRUFAST WALL APPLICATIONS
Continuous Rigid Insulation

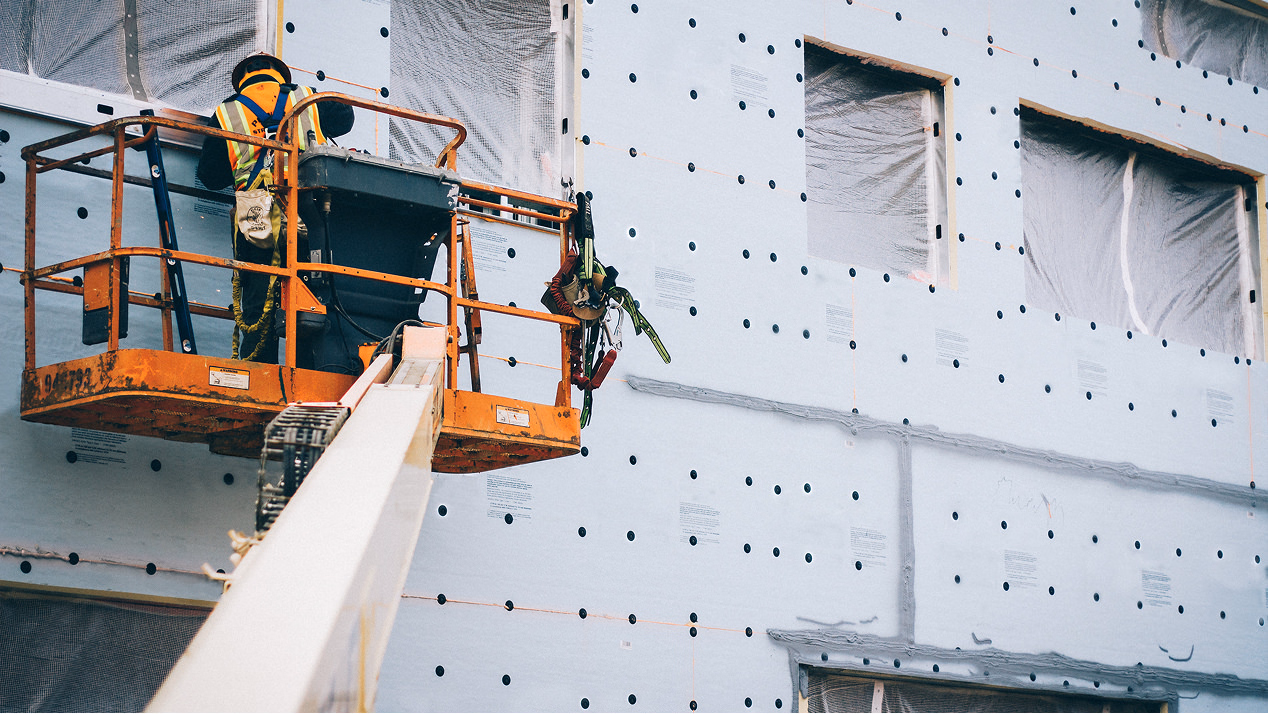

Continuous rigid insulation is an uninterrupted layer of insulation installed across the building envelope to minimize thermal bridging and reduce heat transfer through walls, roofs, and floors. By improving thermal performance, it helps increase overall energy efficiency and occupant comfort. TRUFAST offers a wide range of high-performance fastening solutions designed to securely attach rigid insulation to virtually any substrate.
RECOMMENDED ATTACHMENT SOLUTIONS
Thermal-Grip ci Prong Washer
- Large 2” diameter solid cap washer that attaches rigid insulation
- Dual prongs enable pre-spotting for fast, on-the-wall fastener assembly
- Use with Grip-Deck Self-Drilling Screws for metal substrates
- Use with Grip-Deck HiLo Thread Screws for wood substrates
- Thermal-Grip ci Prong Washer product page

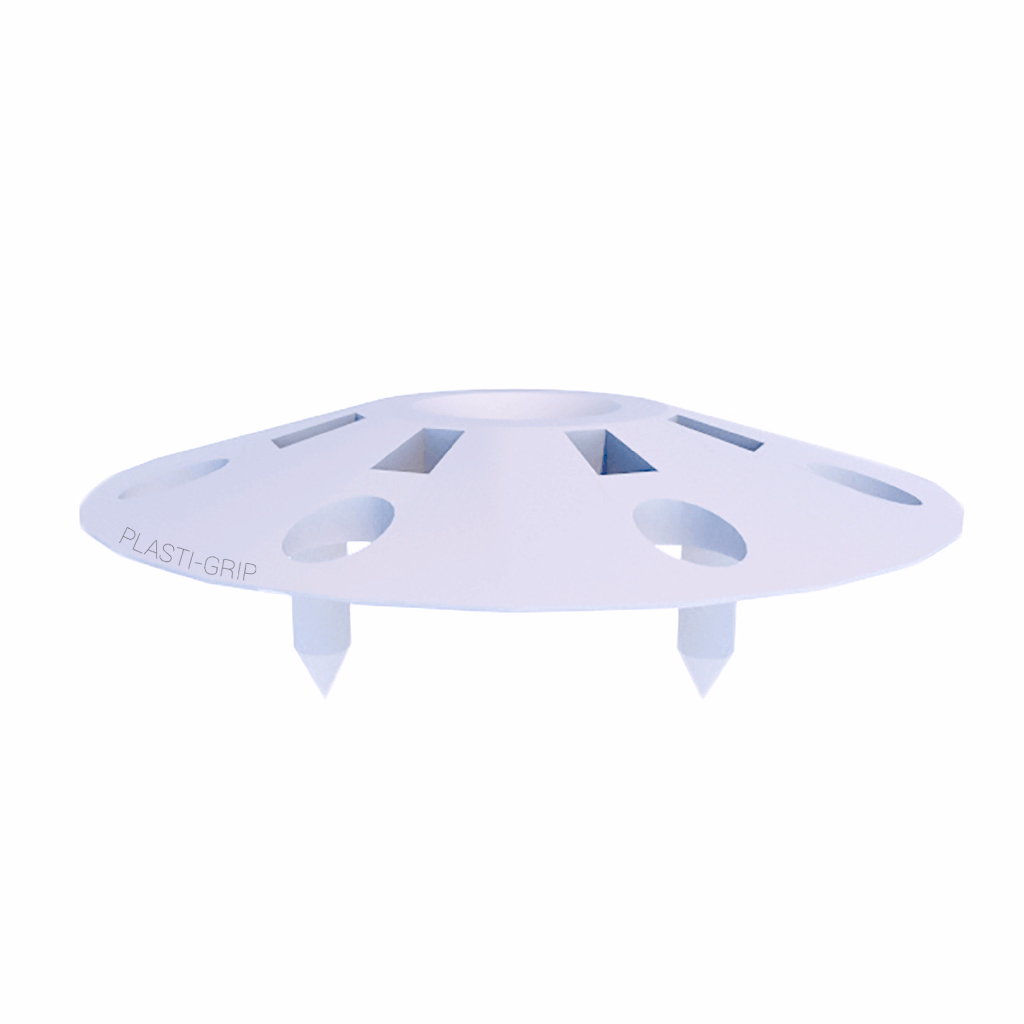

Plasti-Grip ci Prong Washer
- 1-3/4” diameter washer for use with Grip-Deck screws for nails.
- Dual prongs enable pre-spotting for fast, on the wall fastener assembly
- Flexible perimeter reduces tearing of installation facer
- Plasti-Grip ci Prong Washer product page

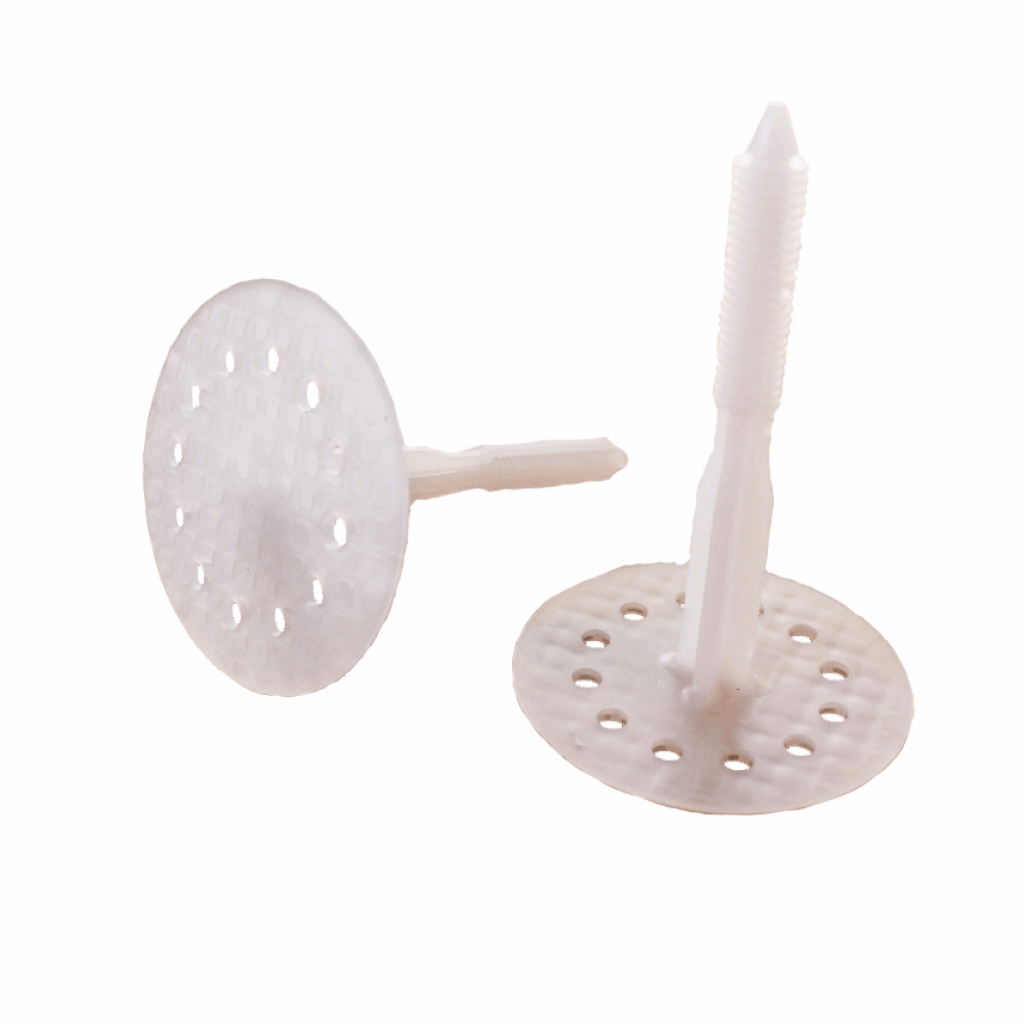

Plasti-Grip PMF (Plastic Masonry Fastener) Anchor
- 1-3/8” diameter washer head
- Molded plastic insulation fastener for masonry substrates
- Permanently attach insulation to masonry, block, brick, or stone
- Simple to install – drill and hammer
- Plasti-Grip PMF product page

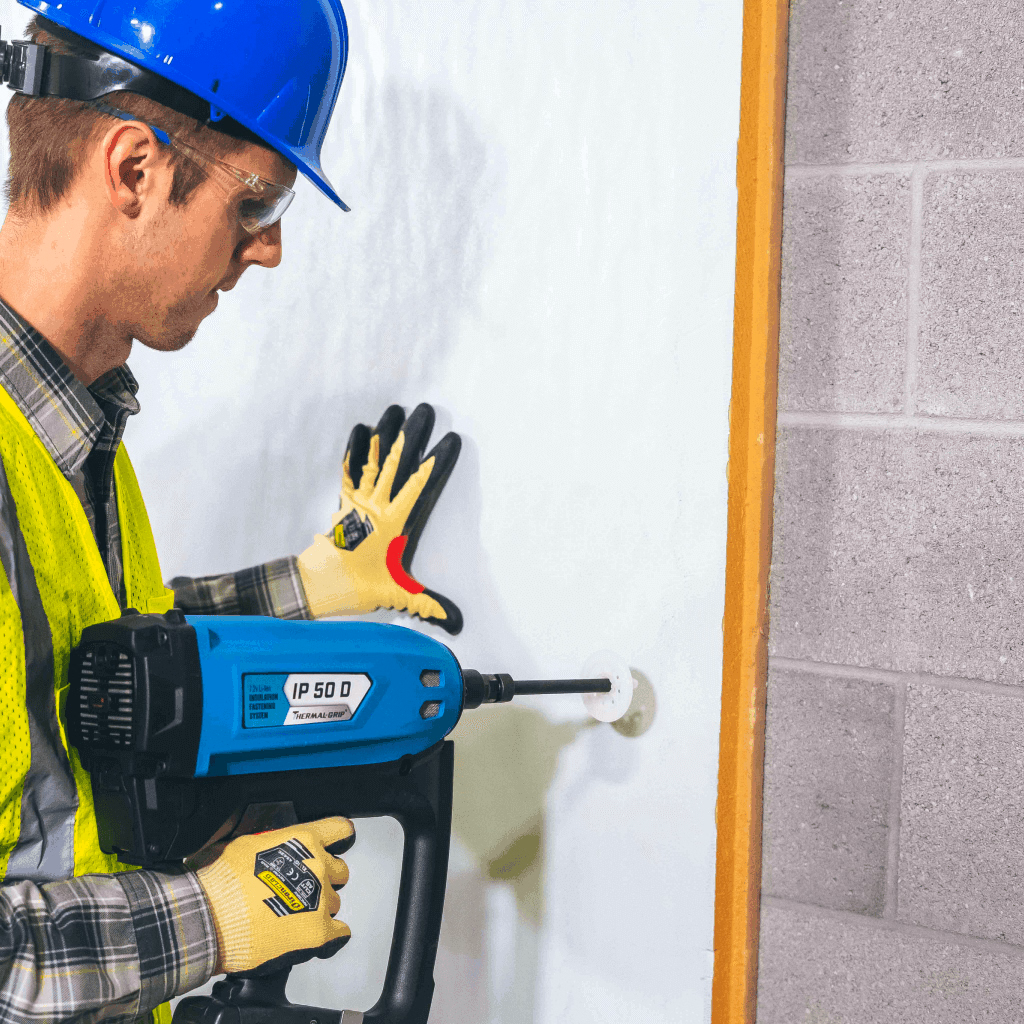

Thermal-Grip IP40/IP50 Concrete Pinner Tool & Thermal-Grip Insulation Pins
- Concrete pinner tool and large 2-1/4” diameter washer head pins designed to attach insulation to a concrete or masonry substrate
- IP40 for use with Thermal-Grip Insulation Pins from 1” to 4”
- IP50 for use with Thermal-Grip Insulation Pins from 1.5” to 6”
- Thermal-Grip IP40/IP50 Concrete Pinner Tool product page
- Thermal-Grip Insulation Pins product page

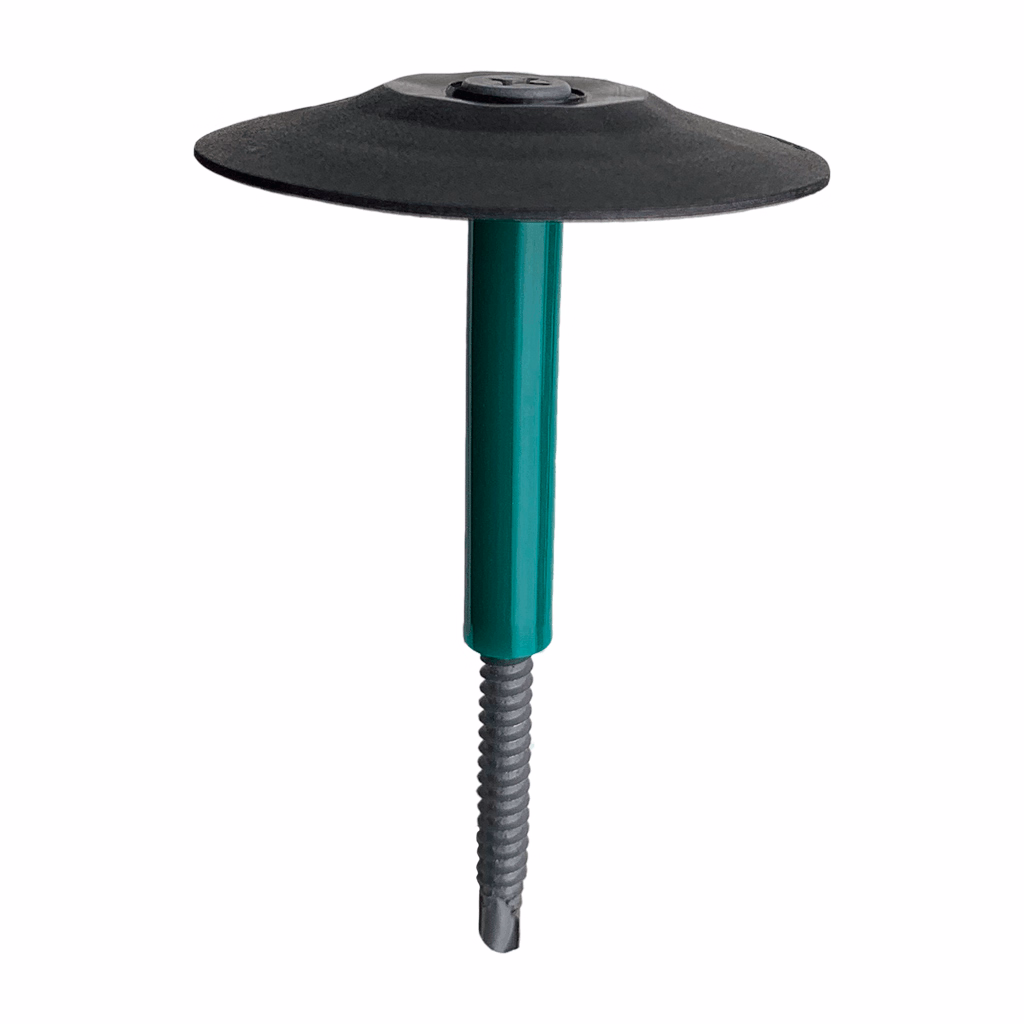

Thermal-Grip TubeSeal Insulation Fasteners
- Attaches insulation over AWRB (air & water resistive barrier)
- TubeSeal helps seal screw penetration against air and water penetration of the AWRB
- Thermal-Grip TubeSeal Insulation Fasteners product page
